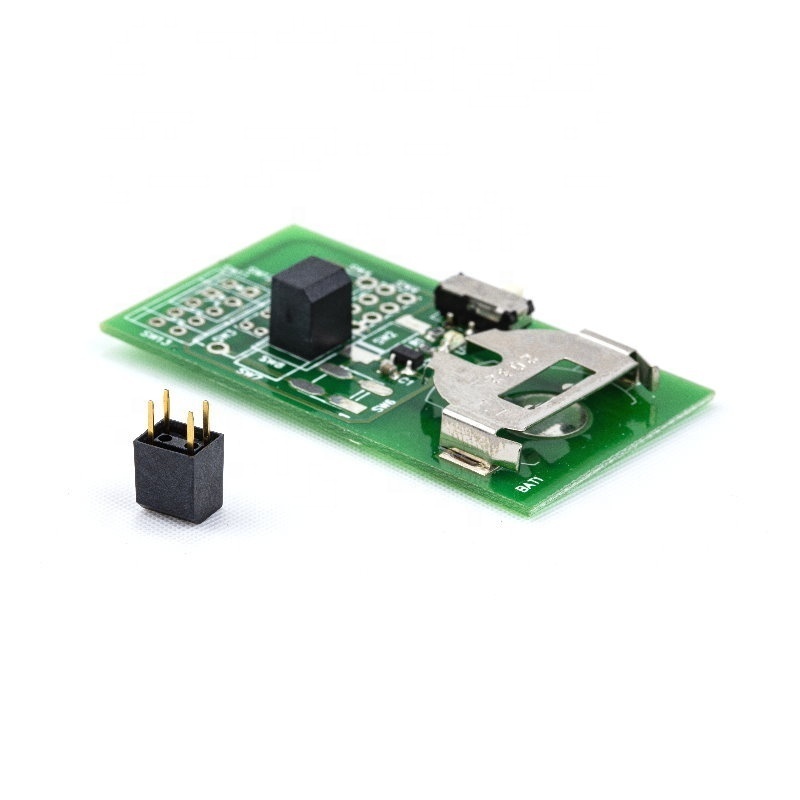

RBS151100 one axis 15 degree tilt detecting ball rolling switch

Function
One Axis 15° Tilt Detecting in Horizontal Position

Specification

1. Wake up systems for power saving, such as remote controllers.

2. One axis 15° tilt detecting in horizontal mode installed above or under PCB.
Type: DIP
Switch state: Normal Open
Suitable for Horizontal PCB
Description: Ball-Contact

Feature
1. Housing made of high insulation plastic material, free from electric conduction and rust problem.
2. Gold-plated ball and terminals, low possibility of oxidization.
3. All plastic materials subject to industrial purpose, resist high temperature and meet fireproof function.
4. Simple ON and OFF signals, easy for design.
5. RoHS compliance, an ideal substitute for mercury switch.
6. A more economical tilt detection option than IC design

Current / Voltage Suggested

Electrical Characteristics

Mechanical Characteristics

Note
For the continued product improvement as one of the company policy, specifications may change or update without notice. The latest information can be obtained through our sales offices. Normally, all products are supplied under our standard conditions.

Dimension of RBS151100
All made in Taiwan and EXAMINED before shipment

Packing of RBS151100
All made in TAIWAN and EXAMINED before shipment

U.S.A. Patent No. US 7,176,396 B1

TAIWAN Patent No. I 297161

CHINA Patent No. ZL 200610072563.7

Application of RBS151100

Wake up systems for power saving, such like remote controllers.

What is Roll Ball Sensor Switch?
Roll Ball Sensor Switch operates using the same theory as any other mechanical switches: the turning on and off action is activated whenever the metal part of a switch is touched. As for the Roll Ball Switches, a tiny ball in the switch rolls when motion is detected, triggering a contact of metal terminals or an alteration of a light path. This will generate the conductive or non-conductive status.
A number of different kinds of Roll Ball Sensor Switches are available for various applications, including the Tilt Sensor Switch, Vibration Sensor Switch, Centrifugal Force Sensor Switch and Optical Roll Ball Switch.
The traditional way to detect the tilt and vibration is using mercury switches. As mercury switch is banned by more and more governments, the use of tiny balls to trigger mechanical touch actions becomes more widespread.

Related Product

One axis 15° tilt detecting in horizontal mode

installed above or under PCB.

One Way 15° Tilt Detecting in horizontal mode.
Single Axis tilt detecting under PCB

OncQue Corporation , founded in 1996 in Taiwan, has been contributing its profession and advanced technology in building high quality sensor switches for nearly 2 decades. Over the past few years, we have developed a great number of new specifications and designs, redefining the idea of sensor switches.
If you wish to know more about Roll Ball Switch, please feel free to contact OncQue, the most historical Roll Ball Switch maker in Taiwan. Our friendly representatives are glad to serve you.
