Quick Details
-
Product name:
-

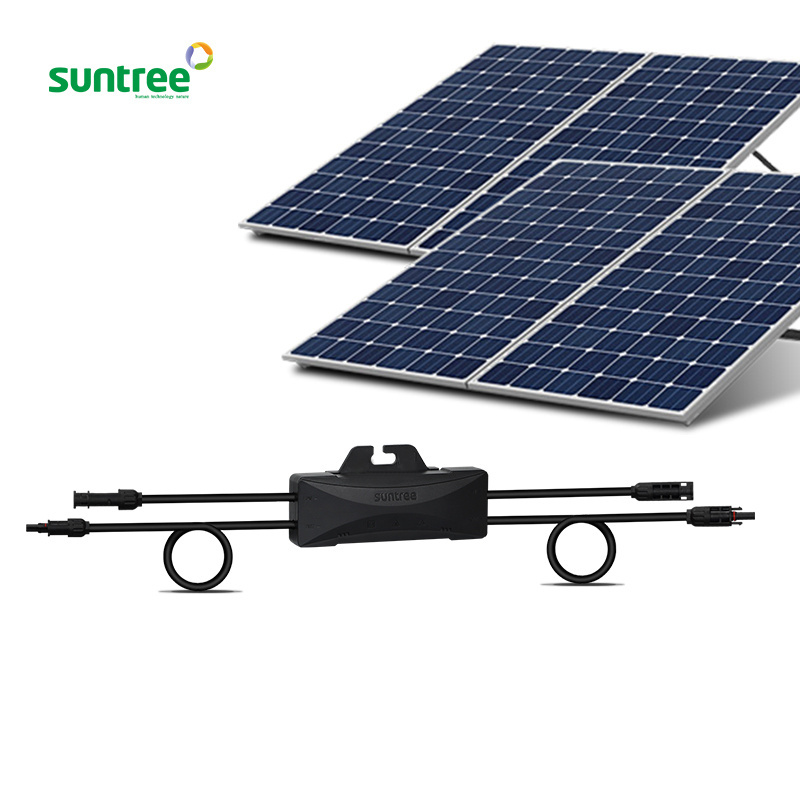

rapid shutdown device
-
Max Current:
-
15A/21A
-
Maximum system voltage:
-
1000v(1500V optional)
-
Ptotection degree:
-
IP68
-
Certification:
-
CE
-
Application:
-
Solar Power System
-
Maximun Output Voltage:
-
80V/160V
-
Number of connectable panels:
-
1/2
-
Installation:
-
easy
-
supply voltage:
-
PV panels
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
80V/160V
-
Product name:
-
rapid shutdown device
-
Max Current:
-
15A/21A
-
Maximum system voltage:
-
1000v(1500V optional)
-
Ptotection degree:
-
IP68
-
Certification:
-
CE
-
Application:
-
Solar Power System
-
Maximun Output Voltage:
-
80V/160V
-
Number of connectable panels:
-
1/2
-
Installation:
-
easy
-
supply voltage:
-
PV panels
Product Details
Specification
|
STANDARD
|
DATA
|
|
|
|
Maximum Allowed Input Voltage
|
80V
|
160V
|
|
|
Maximun Output Voltage
|
80V
|
160V
|
|
|
Number of connectable panels
|
1/2
|
1/2
|
|
|
Maximum input current
|
15A/21A
|
15A/21A
|
|
|
Maximum short circuit current
|
15A/21A
|
15A/21A
|
|
|
Maximum system voltage
|
1000V(1500 optional)
|
1000V(1500 optional)
|
|
|
Operating temperature
|
Negative 30-80°C (automatically shut down if over 85°c)
|
Negative 30-80°c (automatically shut down if over 85°c)
|
|
|
perating environment temperature
|
Negative 30°C~+55°C
|
Negative 30°C~+55°c
|
|
|
Supply voltage
|
PV panels
|
PV panels
|
|
|
Protection level
|
IP68
|
IP68
|
|
|
Fire-proof level
|
UL94-V0
|
UL94-V0
|
|
|
Humidity
|
0%~90% at 20°c
|
0%~90% at 20°c
|
|
|
lnterface
|
MC4
|
MC4
|
|
|
Warranty
|
10 Years
|
10 Years
|
|
|
Panel cable length
|
280+10mm
|
280+10mm
|
|
|
String cable length
|
1280+10mm
|
1280+10mm
|
|
|
Communication
|
PLC
|
PLC
|
|
|
Standards compliant
|
UL 1741/NEC 2017 690.12
|
UL 1741/NEC 2017 690.12
|
|
