Quick Details
-
Filling Accuracy:
-
Acuracy99.9%
-
Voltage:
-
208-415V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPSPACK
-
Dimension(L*W*H):
-
800*790*1900mm
-
Weight:
-
130 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Weighing and filling
-
Hopper:
-
Quick disconnecting hopper 25L
-
Packing Weight:
-
1-500g
-
Packing Accuracy:
-
≤ 100g, ≤±2%; 100 - 500g, ≤±1%;
-
Filling Speed:
-
8-15 times per minutes
-
Power Supply:
-
3P AC208-415V 50/60Hz
-
Air Supply:
-
6Kg/cm2 0.1m3/min
-
Product name:
-

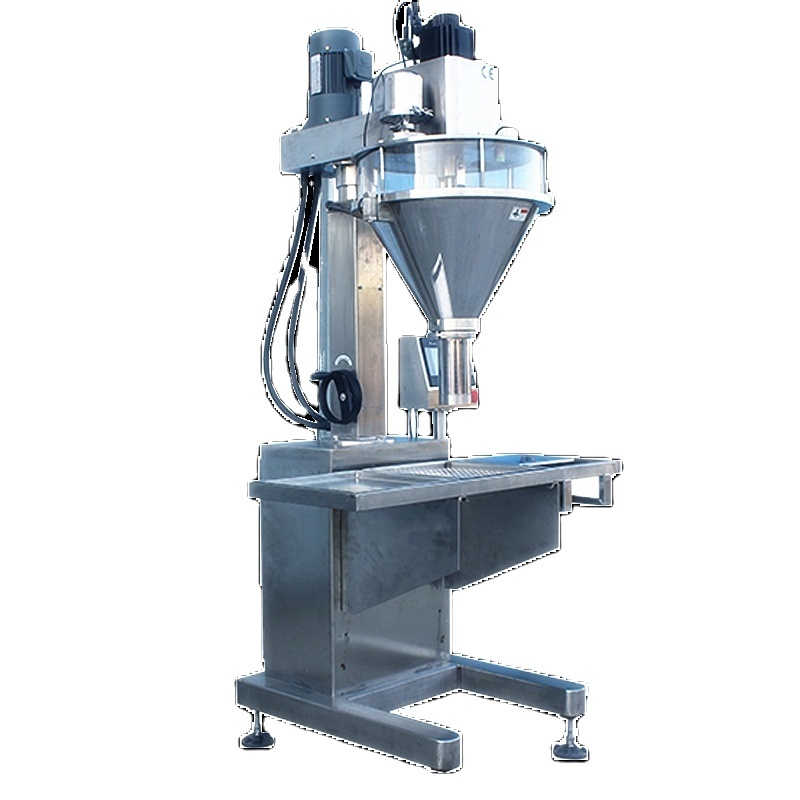

Semi-automatic donut egg powder filling packing machine
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 16000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
Acuracy99.9%
-
Voltage:
-
208-415V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPSPACK
-
Dimension(L*W*H):
-
800*790*1900mm
-
Weight:
-
130 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Function:
-
Weighing and filling
-
Hopper:
-
Quick disconnecting hopper 25L
-
Packing Weight:
-
1-500g
-
Packing Accuracy:
-
≤ 100g, ≤±2%; 100 - 500g, ≤±1%;
-
Filling Speed:
-
8-15 times per minutes
-
Power Supply:
-
3P AC208-415V 50/60Hz
-
Air Supply:
-
6Kg/cm2 0.1m3/min
-
Product name:
-
Semi-automatic donut egg powder filling packing machine
Production Description
Features &Specificaton
|
Model
|
TP-PF-A10
|
TP-PF-A11
|
TP-PF-A11S
|
TP-PF-A14
|
TP-PF-A14S
|
||
|
Control system
|
PLC & Touch Screen
|
PLC & Touch Screen
|
|
PLC & Touch Screen
|
|
||
|
Hopper
|
11L
|
25L
|
|
50L
|
|
||
|
Packing
Weigh
|
1-50g
|
1 - 500g
|
|
10 - 5000g
|
|
||
|
Weight
dosing
|
By auger
|
By auger
|
By load cell
|
By auger
|
By load cell
|
||
|
Weight Feedback
|
By off-line scale
(in picture)
|
By off-line scale (in picture)
|
Online weight
feedback
|
By off-line scale (in picture)
|
Online weight feedback
|
||
|
Packing Accuracy
|
≤ 100g, ≤±2%
|
≤ 100g, ≤±2%; 100 – 500g,
≤±1%
|
≤ 100g, ≤±2%; 100 – 500g,
≤±1%;
≥500g,≤±0.5%
|
≤ 100g, ≤±2%; 100 – 500g,
≤±1%; ≥500g,≤±0.5%
|
|
||
|
Filling Speed
|
40 – 120 times per min
|
40 – 120 times per min
|
|
40 – 120 times per min
|
|
||
|
Power
Supply
|
3P AC208-415V
50/60Hz
|
3P AC208-415V 50/60Hz
|
|
3P AC208-415V 50/60Hz
|
|
||
|
Total
Power
|
0.84 KW
|
0.93 KW
|
|
1.4 KW
|
|
||
|
Total Weight
|
90kg
|
160kg
|
|
260kg
|
|
||
|
Overall Dimensions
|
590×560×1070
mm
|
800×790×1900mm
|
|
1140×970×2200mm
|
|
||
Details
Level split hopper
It is very easy to open hopper and do cleaning.
Disconnect hopper
it is not easy to take hopper apart and do cleaning.
Screw type
It will not make material stock, and easy for cleaning.
hang type
t will not make material stock, and become rust,not easy for cleaning.
Stainless steel type
It is easy for cleaning and beautiful.
cloth type
it has to change termly for cleaning.
level senor
it gives signal to loader when material lever is low, it does feeding automatically.
hand wheel
It is suitable for filling into bottles/bags with different height.
Leak proof acentric device
It is suitable for filling products with very good fluidity, such as, salt, white sugar etc.
Leak proof acentric device
It is suitable for filling products with very good fluidity, such as, salt, white sugar etc.
Production &Processing
About Us
Shanghai Tops Group Co., Ltd is professional manufacturer for powder and granular packaging systems.
We specialize in the fields of designing, manufacturing, supporting and servicing a complete line of machinery for different kinds of powder and granular products, Our main target of working is to offer the products which are related to the food
industry,agriculture industry, chemical industry, and pharmacy field and more.
