Quick Details
-
Feed Mechanism:
-
Manual
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHENPENG
-
Power:
-
550W
-
Overall Dimensions:
-
1000*500*1200mm
-
Weight (KG):
-
135 KG
-
Needle bat stroke:
-
56mm
-
Presser foot lift by hand:
-
13mm
-
Presser foot lift by knee:
-
25mm
-
Shuttle hook:
-
KSP-204N
-
Needle size:
-
DYX3 160# - 230#
-
Motor:
-
550W 4P
-
Arm lenghth:
-
420mm
-
working space:
-
420x200mm
-
Marketing Type:
-
Hot Product 2020,2021
-
Certification:
-
CE,ISO9001
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
25mm
-
Stitch Length:
-
0-11mm
-
Feed Mechanism:
-
Manual
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHENPENG
-
Power:
-
550W
-
Overall Dimensions:
-
1000*500*1200mm
-
Weight (KG):
-
135 KG
-
Needle bat stroke:
-
56mm
-
Presser foot lift by hand:
-
13mm
-
Presser foot lift by knee:
-
25mm
-
Shuttle hook:
-
KSP-204N
-
Needle size:
-
DYX3 160# - 230#
-
Motor:
-
550W 4P
-
Arm lenghth:
-
420mm
-
working space:
-
420x200mm
-
Marketing Type:
-
Hot Product 2020,2021
-
Certification:
-
CE,ISO9001
GA 441 heavy duty fur sewing machine for sale
Application
GA 441 heavy duty fur sewing machine for sale is the ideal machine for canvas, leather upholstery and technical textiles and other extra heavy weight materials. such as auto products(air bag, seat cushion, life belt, etc.), base ball gloves, saddlery,bags, shoes, etc.
Features
1. The needle feed mechanism in cooperation with the walking foot mechanism achieves powerful feeding force. As a result, a high quality seam without material slippages is assures.
2. The lifting amount of the presser foot reaches 20mm assuring smooth placement/removal of extra heavy-weight materials.
3. The wide free space under the machine arm allows the operator to easily place and remove a large sewing products.
4. The built in bobbin winder makes easy operation during sewing.
5. Large shuttle hook and large bobbin reduces frequent bobbin changing and makes the machine idealy suitable for sewing extra heavy-weight materials.
6.Pneumatic presser foot lifter and back tack could be added;
Specification
|
Model |
GA441 |
|
|
Stitch length |
0-11mm |
|
|
Max. sewing speed |
800r.p.m |
|
|
Stitch type |
Lockstitch |
|
|
Feed mechanism |
Walking foot and needle feed |
|
|
Thread take-up lever stroke |
96mm |
|
|
Needle bar stroke |
56mm |
|
|
Presser foot lift |
By hand |
13mm |
|
By knee |
25mm |
|
|
Needle size |
DYX3 160#-230# |
|
|
Shuttle hook |
KSP-204N |
|
|
Number of needle |
1 |
|
|
Lubrication |
2 |
|
|
Power supply |
Manual |
|
|
Cylinder dia. |
81mm |
|
|
Motor |
550w/750w, 4p |
|
GA441 sewing machine head ,stand table and motor

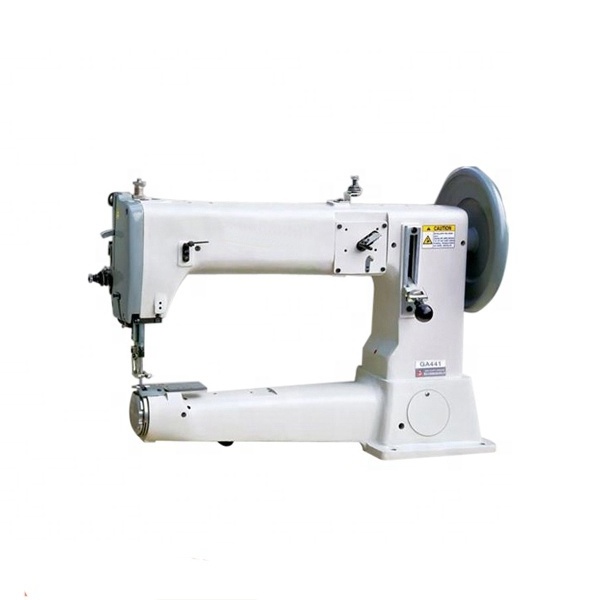

GA441 sewing machine head
GA441 sewing machine needle
GA441 sewing sample
GA441 Cylinder arm
1.Pre-sale consultation service;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5. Offer quality products with competitive price;
6.Maintenance,spare parts services and technical support;
7. Bag closing, FIBC sewing and heavy duty sewing solutions;
8. Quality inspection, delivery time control, logistics and related documents arrangement service.
