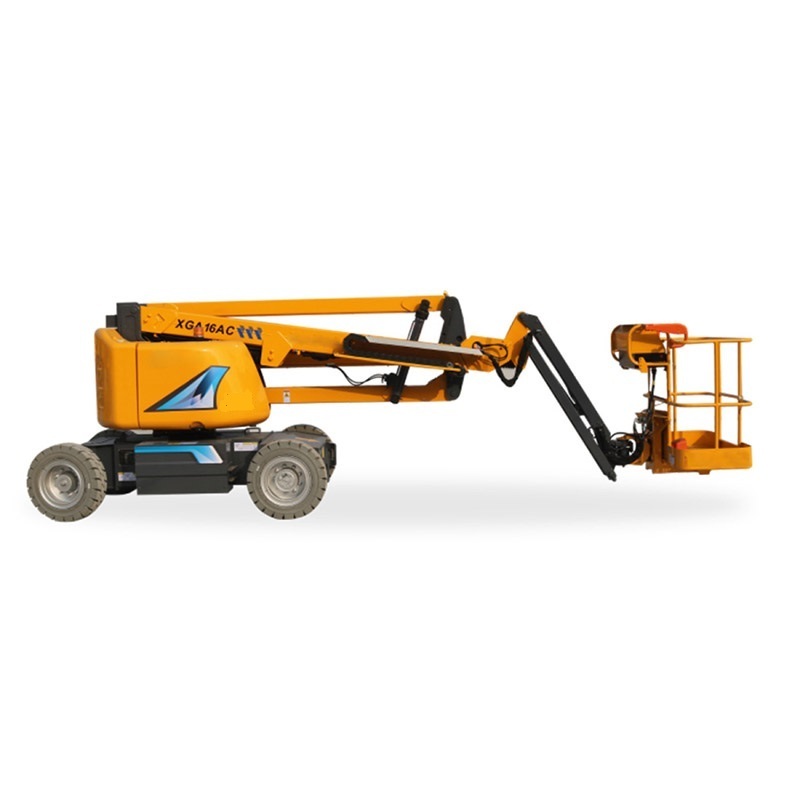

Official XGA16 16m Manlift Cherry Picker Towable Articulated Mobile Boom Lift for Construction
DESCRIPTION
* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency;
* Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.
* Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional
system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop
technologies.
16M articulated mobile elevating work platform aiming to satisfy customers’ requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency;
* Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.
* Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional
system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop
technologies.
PARAMETERS
|
Item
|
Parameter
|
|
|
Parameters of traveling state
|
|
|
|
Overall dimensions (L × W × H)
|
6.69×2.26×2.13 m
|
|
|
Working platform overall dimensions
|
1.83×0.76×1.15 m
|
|
|
Max. speed
|
6.12 km/h
|
|
|
Max. gradeability
|
≥30％(2WD) ≥45％(4WD)
|
|
|
Min. external turning radius
|
≤4.5m
|
|
|
Ground clearance/m (centre)
|
0.41 m
|
|
|
Wheelbase
|
2.1 m
|
|
|
Total mass
|
6900 kg
|
|
|
Main Operation Performance Parameters
|
|
|
|
Rated working height
|
16.05m
|
|
|
Max. platform height
|
14.05m
|
|
|
Max. working range
|
8.22m
|
|
|
Max. net spanning height
|
7.14 m
|
|
|
Scope of luffing of No. 1 arm
|
0°~60°
|
|
|
Scope of luffing of No. 2 arm
|
-9°~75°
|
|
|
Scope of crank arm luffing
|
-60°~80°
|
|
|
Scope of platform swing
|
160°
|
|
|
Slewing angle
|
355° discontinuous slewing
|
|
|
Slewing radius of turntable
|
1.145 m
|
|
|
Max. Load capacity
|
230 kg
|
|
|
Max. Tail swing
|
0 m
|
|
|
Control system
|
12V DC proportional control
|
|
|
Emergency control unit
|
12V DC battery
|
|
|
Tire
|
33×12-20 off-road solid type (optional: 315/55 D20 off-road foam tire)
|
|
|
Weighing detection
|
Standard configuration
|
|
|
Axle balance system
|
Standard configuration
|
|
|
Working speed
|
|
|
|
Platform lifting/lowering speed
|
0.1~0.3m/ s
|
|
|
Extending/Retracting speed of Boom No.2
|
0.1~0.3m/ s
|
|
|
Slewing speed
|
0.5~1r/min
|
|
|
Engine Parameters
|
|
|
|
Engine manufacturer
|
British Perks / Germany Detz
|
|
|
Engine model
|
Perks 404D-22/ Deutz D2011 L03i
|
|
|
Engine rated power
|
38KW/3000rpm, 36.3KW/2800rpm
|
|
