Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Quectel
-
downlink:
-
150Mbps
-
uplink:
-
50Mbps
Quick Details
-
Chipset:
-
4G IoT Module
-
Application:
-
M2M 4G IoT Module
-
Model Number:
-
EC20-CE MINIPCIE-C
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Quectel
-
downlink:
-
150Mbps
-
uplink:
-
50Mbps

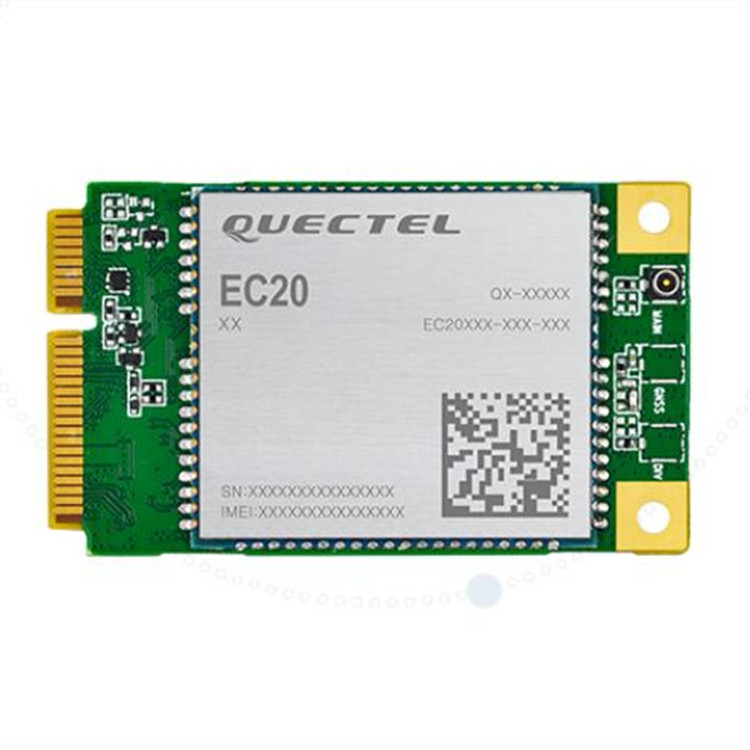

4G IoT Module MiniCard Adopting the 3GPP Rel.11 LTE EC20 R2.1 EC20 R2.1 Mini PCIe
EC20 R2.1 Mini PCIe is an LTE category 4 module adopting standard PCI Express® MiniCard form factor (Mini PCIe). Adopting the 3GPP Rel.11 LTE technology, it is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
EC20 R2.1 Mini PCIe is an LTE category 4 module adopting standard PCI Express® MiniCard form factor (Mini PCIe). Adopting the 3GPP Rel.11 LTE technology, it is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
Designed in the compact and unified form factor, EC20 R2.1 Mini PCIe is compatible with Quectel UMTS/HSPA+ UC20 Mini PCIe module, multi-mode LTE Cat 3 EC20 Mini PCIe and Cat 4 EC20 R2.0 Mini PCIe/EG25-G Mini PCIe module, which allows for flexible migration among them in design and manufacturing. Meanwhile, it is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC20 R2.1 Mini PCIe supports multiple-input multiple-output (MIMO) technology. The use of multiple antennas at the receiver end at the same time and on the same frequency band greatly minimizes errors and optimizes the data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) receiver for positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as CPE, industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Key Benefits
LTE category 4 module optimized for M2M and IoT applications
Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Feature refinements: supports DFOTA, eCall* and DTMF
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
Lead Time:
| Quantity(Pieces) | 1 - 10000 | >1000 |
| Est. Time(days) | 5 | Negotiable |
QUECTEL Series:
EC20-A/E/C M35/M26/M10/M95/M90/M60/BC95
L70 LC26 EG12-XX L89 EM06 EM05 LC79D
EC25 L70-RL RG500Q EP06 EM20 RM500Q SC66
SC600T SC600Y SC66 SC20
SIMCOM Series:
SIM8980 SIM8950 SIM8200EA SIM8100 SIM7906E-M2 SIM7912G-M SIM7800
SIM7600 SIM7600E SIM7600E-H SIM7600G SIM7600A SIM7600SA-H SIM7600NA-H
SIM7500 SIM7100E SIM7100A SIM7100C SIM7020 SIM7000G SIM7000E SIM7000JC
SIM5360 SIM5320 SIM5320E SIM5218A SIM868 SIM800
SIM5300EA SIM8905
Sierrawireless module Series:
AR7598 AR7594 AR7592 AR7588 AR7582
WP7608 WP7611 WP7610 WP7609 WP7608 WP7607 WP7603
XM1210 XM1111
XA1110
