Manufacturer SMT laser Cutting Machine PCB Stencil Board Laser Cutting Machine With Wide Compatibility

Manufacturer SMT laser Cutting Machine PCB Stencil Board Laser Cutting Machine With Wide Compatibility

FOB Reference Price: Get Latest Price

≥1 Sets

US $115200

≥5 Sets

US $115000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: I.C.T

Model Number:: I.C.T - LCO-350

Product name:: PCBA Online Laser Cutting Machine

Laser Type:: Green laser

Laser Power:: 35W

Platform Range:: 300*300mm double table

Adapt to Product Thickness (mm):: MAX1.5mm

Maximum Speed Of Platform:: 1000m/s

Maximum Cutting Speed (mm/s):: ≥200mm

Positioning Accuracy:: ±0.005mm

Power:: AC220V/50Hz, 3KW

Quick Details

Weight (KG):: 3200

Marketing Type:: New Product 2023

Place of Origin:: Guangdong, China

Brand Name:: I.C.T

Model Number:: I.C.T - LCO-350

Product name:: PCBA Online Laser Cutting Machine

Laser Type:: Green laser

Laser Power:: 35W

Platform Range:: 300*300mm double table

Adapt to Product Thickness (mm):: MAX1.5mm

Maximum Speed Of Platform:: 1000m/s

Maximum Cutting Speed (mm/s):: ≥200mm

Positioning Accuracy:: ±0.005mm

Power:: AC220V/50Hz, 3KW

Product Description

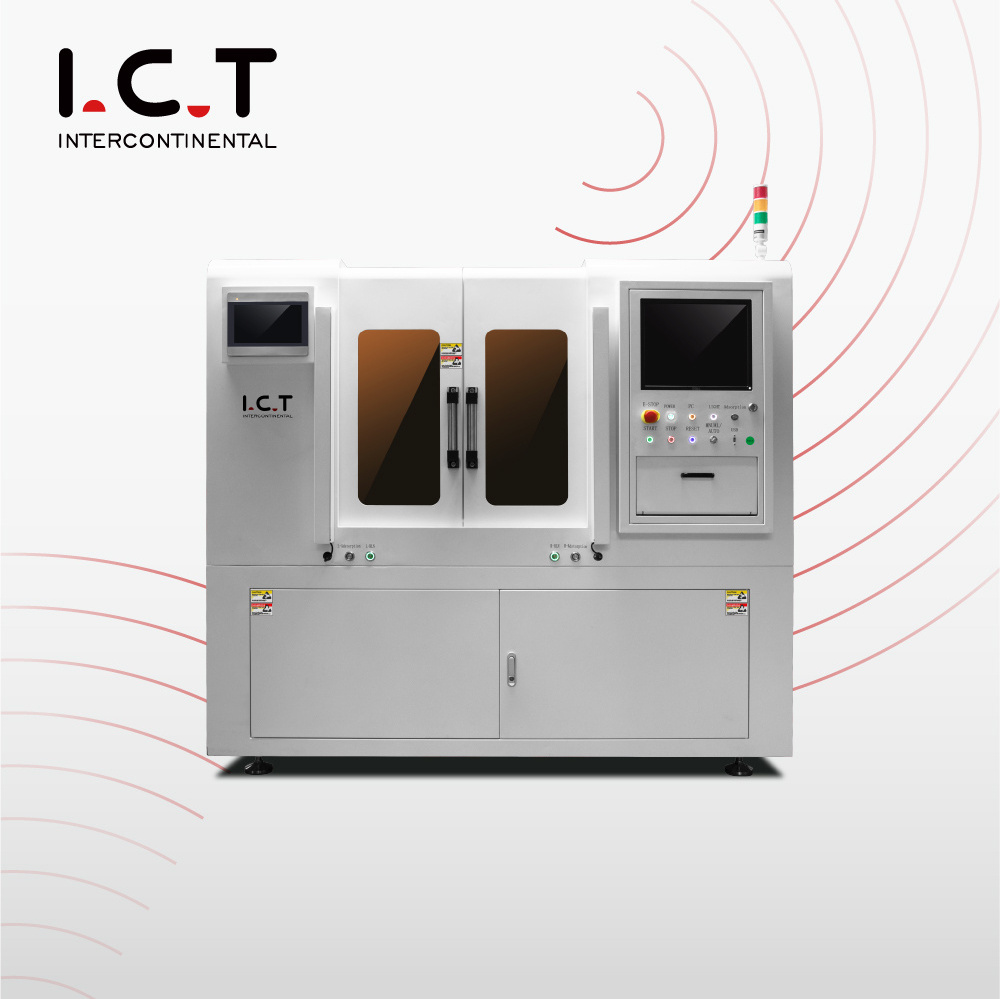

I.C.T PCBA Online Laser Cutting Machine LCO-350

LCO-350 is mainly used in sapphire scribing, precision metal, camera module, PCB, VCM, FPC, SD card, QFN, BGA and
othermicroelectronics industries.

Features：

1. With automatic focusing function to avoid manual focusing positioning deviation; 2. The cutting software is easy to learn and comes with graphics editing functions, including inward shrinkage, outward expansion, size modification and adjustment, and graphic editing of cutting points; 3. With dynamic zoom function: according to the thickness of the customer's product, the number of times of falling layer by layer can be realized when the board is divided, ensuring that the focal length is on the product cutting; 4. With CCD automatic positioning, automatic calculation of expansion and contraction compensation function; 5. It has three-color light source, which can be adjusted to accurately identify the PCBA optical point and locate the position of the sub-board; 6. Equipped with a CCD that can read the QR code alone, to achieve MES data upload 1mm*1mm~6mm*6mm, and the code reading length is 19 digits; 7. The transmission height of the equipment can be adjusted by 900±50mm, and the track length is preferably 1000mm; 8. Comes with a laser chiller, equipped with a dust extraction system (automatic vacuum adsorption + laser dust removal); 9. Equipment running accuracy ±0.005mm, CPK>1.33, sub-board accuracy ±0.025mm, processing capacity T≤1.6mm; 10. In line with the SMT anti-static standard, the product must be made of anti-static material within 30CM; 11. The safety door interlocking mechanism is configured, the safety door cannot be opened when the equipment is running, and the equipment cannot be operated after the door is opened. It is equipped with a leakage protector.

High speed cutting head

speed is fast

strong stability

No burrs

Small deformation

High speed motion axis

Short reaction time

lt moves fast

Steady and steady

Laser source

mature technology

good stability

calorific value is small

Operation interface

The operation is simple

Be clear at a glance

Cutting Renderings：

Specification

Item	LCO-350
Laser Type	Green laser
Laser Power	35W
Platform Range	300*300mm double table
Adapt to Product Thickness (mm)	MAX1.5mm
Maximum Speed Of Platform	1000m/s
Maximum Cutting Speed (mm/s)	≥200 mm
Positioning Accuracy	±0.005mm
Repeatability	±0.005mm
Cutting Accuracy	±0.025mm
Power	AC220V/50Hz, 3KW
Weight	3200KG
Dimensions	L1600W1300H1800mm

Our Company

About I.C.T：

I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of electronic industry experience, through our superior resources in China to provide global customers with systematic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customers to set up factories in LED, TV, mobile phone, DVB, EMS and other industries all over the world. We are trustworthy.

Our Advantages

Exhibition

Packing & Delivery

※ Standard Wooden Case with Vacuum Package

Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.

FAQ

Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner

Q: Are you a trade company or manufacturer?
A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available.

Q: What is your delivery date?
A: About 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: Huawei, Foxconn, Vtech, Sumida, Kemet, Vishay, Bosch, Canon, Jabil etc.

Q: Why choose you?
A: Leading SMT Supplier in China; Professional Supplier on Alibaba;
Trade assurance to USD 560,000+; Professional after-sales service team.
