Quick Details
-
Dimension(L*W*H):
-
depends final product
-
Weight (T):
-
0.25 T
-
Power (kW):
-
25
-
Capacity:
-
5-20KG
-
input voltage:
-
1 phase 220V /3phase 380V
-
input power:
-
25KW
-
raw material:
-
steel , copper ,aluminum ,gold
-
special design:
-
with tilting system
-
crucible:
-
graphite crucible
-
Warranty period:
-
12 Month
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sutong furnace
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
depends final product
-
Weight (T):
-
0.25 T
-
Power (kW):
-
25
-
Capacity:
-
5-20KG
-
input voltage:
-
1 phase 220V /3phase 380V
-
input power:
-
25KW
-
raw material:
-
steel , copper ,aluminum ,gold
-
special design:
-
with tilting system
-
crucible:
-
graphite crucible
-
Warranty period:
-
12 Month
small melting furnace for workshop
Induction metal melting furnace mainly used for melting cast iron, cast steel , copper and aluminum alloy scrap for casting dies
.
Induction metal melting furnace
can also be used together with selfheated furnaces and electric arc furnace for heating orkeeping warm the molten iron and molten steel.
Product application:
♦ SUTONG samll melting furnace is applicable to melt steel , cast iron , copper, aluminum and other metals .
♦ SUTONG small melting furnace can be produced with different volume .
♦ SUTONG small melting furnace has 1650C operation temperature .
♦ SUTONG small melting furnace will be matched with crucible if customer need .
Product advantages :
♥ SUTONG induction small melting furnace has faster melting speed .
♥ SUTONG induction small melting furnace has lower power consumption
♥ SUTONG induction small melting furnace has no pollution to the air .
♥ SUTONG induction small melting furnace can be produced according to customers' requirements
The main technical parameters of 20Kg high frequency melting furnace
|
Model |
H F- 20 |
|
Input power |
25 KW |
|
Input voltage |
Three phase 380 V ± 20% ; 50-60Hz (as your demands) |
|
Application |
For melting various metals with melting point less than 1650.C. Such as: gold, silver, copper, iron, aluminum, lead, zinc, etc. |
|
Loading capacity |
10- 20 kg |
|
Melting rate |
55 mins/batch |
|
Working temperature |
300 to 1650.C (adjustable) |
|
Power supply type |
IGBT frequency conversion element |
|
Furnace tilting device |
Hand gear reducer . When the furnace is tilted to discharge the liquid, it stays at any position. |
|
Cooling water consumption |
300Kg/hour |
|
Melting crucible material |
Isostatic pressure silicon carbide graphite crucible |
|
Fixing the crucible
|
A heat-resistant steel crucible fixing mechanism is installed on the top of the furnace to facilitate the disassembly and replacement of the crucible. The crucible cannot slide when the furnace is dumped as a discharge liquid. |

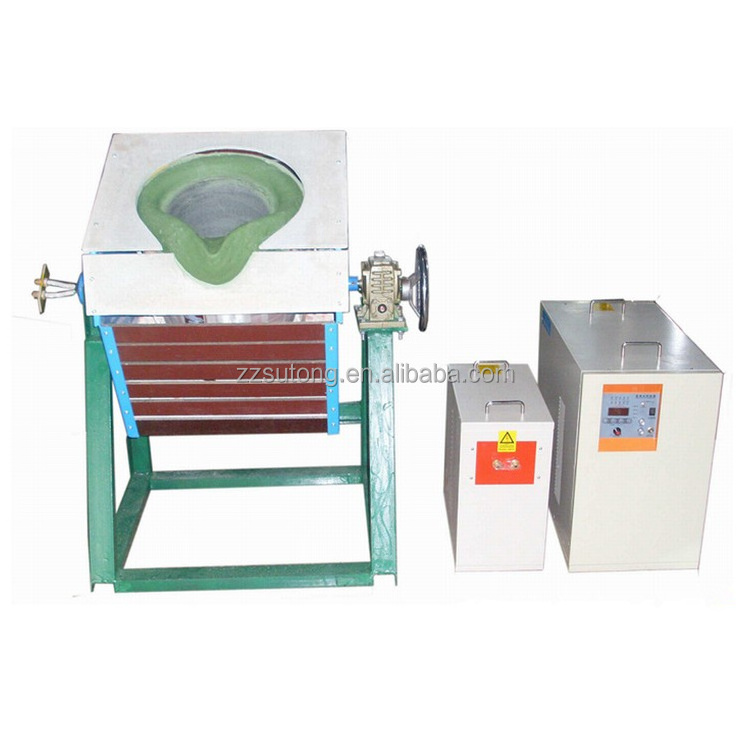

Product Picture:
This furnace is will be produced according to your requirement ,now this furnace is on hot selling,welecome to order it !!
