Quick Details
-
Voltage:
-
12V
-
Waranty:
-
15 months
-
Color:
-
Silver and black
-
Application:
-
access control system
-
Certification:
-
CE FCC ROHS
-
Type:
-
Power off lock the door type
-
Function:
-
electric bolt
-
Function 1:
-
electronic striker
-
Function 2:
-
door lock
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dwell
-
Fail Security:
-
Unlocked when energized
-
Voltage:
-
12V
-
Waranty:
-
15 months
-
Color:
-
Silver and black
-
Application:
-
access control system
-
Certification:
-
CE FCC ROHS
-
Type:
-
Power off lock the door type
-
Function:
-
electric bolt
-
Function 1:
-
electronic striker
-
Function 2:
-
door lock

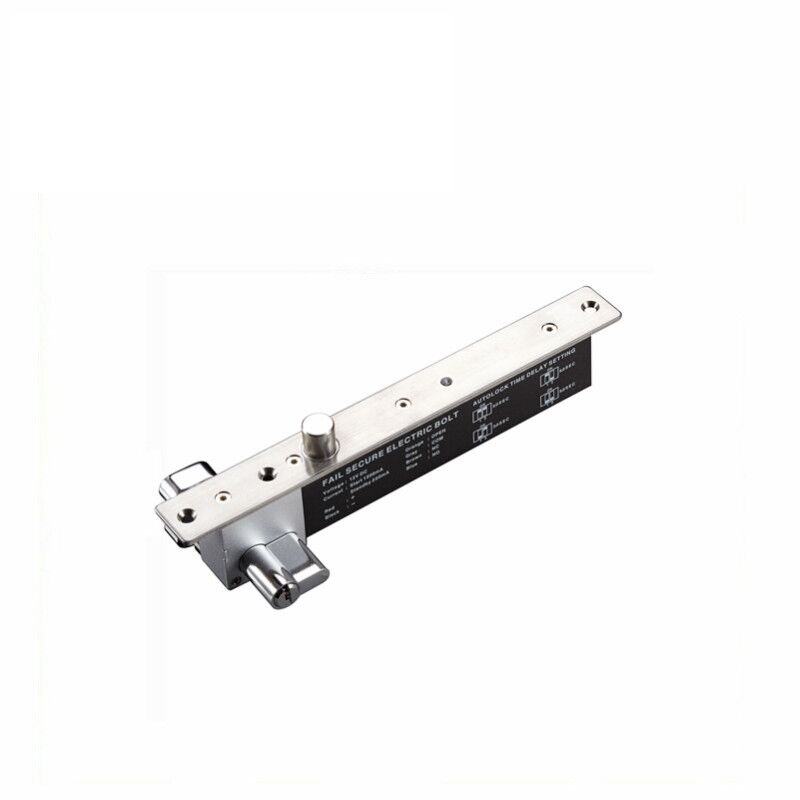

DW-600B 12V Access control door lock Electronic striker Fail Secure Electric Bolt with Key
Face Plate: 260Lx30WX48H(mm)
Strike: 100Lx25Wx3H(mm)
Bolt: 16mmDIA,stainless steel 16mm throw
Start Current: 950mA
Standby Current: 150mA
Solid Bolt: polishing housing, 2000Kg Holding Force
Suitable For: Wooden Door,Metal Door
Surface Temp: Low Temperature
Induction Distance:8mm
Operating temp: -10~+55°C
(
14-131F
)
Operating Humidity: 0~90%(non-condensing)
Special Designed: Tested to 500000 operations
Face place material
:
Stainless Steel
Weight: 1.6kg
Standard Packing: 10pcs.
| Voltage | DC12V |
| Output | NO/NC/COM with lock status |
| Fail Secure | Unlocked when energized |
| Time Delay | 0,3,6,9sec. |
