Hoop Price Heavy Duty Industrial Washing Machine Laundromat Hard Mount Washing Machine Washer Extractor apricot 130-160 KG

Hoop Price Heavy Duty Industrial Washing Machine Laundromat Hard Mount Washing Machine Washer Extractor apricot 130-160 KG

FOB Reference Price: Get Latest Price

≥1 Sets

US $12850

≥5 Sets

US $12750

≥10 Sets

US $12550

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Size:: 2198*2092*2475 mm

Place of Origin:: Shanghai, China

Brand Name:: Hoop

Power:: 11kw

Water consumption:: 1575L/T

Washing speed:: 32r/min

High extract speed:: 650r/min

Basket dia.:: 1300mm*1036mm

Compressed air consumption:: 10L/T

G force:: 350

Steam pressure:: 0.4-0.6Mpa

Water pressure:: 0.25-0.6Mpa

Compressed air pressure:: 0.4-0.7Mpa

Steam consumption:: 83Kg/h

Quick Details

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Weight:: 4400kg

Size:: 2198*2092*2475 mm

Place of Origin:: Shanghai, China

Brand Name:: Hoop

Power:: 11kw

Water consumption:: 1575L/T

Washing speed:: 32r/min

High extract speed:: 650r/min

Basket dia.:: 1300mm*1036mm

Compressed air consumption:: 10L/T

G force:: 350

Steam pressure:: 0.4-0.6Mpa

Water pressure:: 0.25-0.6Mpa

Compressed air pressure:: 0.4-0.7Mpa

Steam consumption:: 83Kg/h

Company Introduction

Jiangsu Hoop Washing Machinery Manufacturing Co.,Ltd

NO.10~8,Anfeng Electronic Information Industrial Park,Dongtai City, Jiangsu Province,China

HUIBU(SHANGHAI) INDUSTRIAL CO., LTD

NO.8565 Chuannanfeng Road,Fengxian District, Shanghai City, China Click to company profile page

HUIBU (ANHUI) INTELLIGENT MANUFACTURING INDUSTRIAL PARK

Wangjiang City, Anhui Province.China

HUIBU (ANHUI) INTELLIGENT MANUFACTURING INDUSTRIAL PARK

Wangjiang City, Anhui Province.China

We are the industry washing machine manufacture , for 30 years ,

professional Laundry Machine and Integrated System Manufacturer in China,

established since 1993 .

The main products are Automatic industrial washing machine,

tumble dryer,ironing machine,folding machine,feeding machine,fully

enclosed dry cleaning machine,barrier washing machine and other laundry equipment.

Our company adopted strict ISO9000 certification, TUR,SGS and products passed CE certification. We also provide OEM service for multiple brands.

The important,we have the best technical support and after sale service .

Product Overview

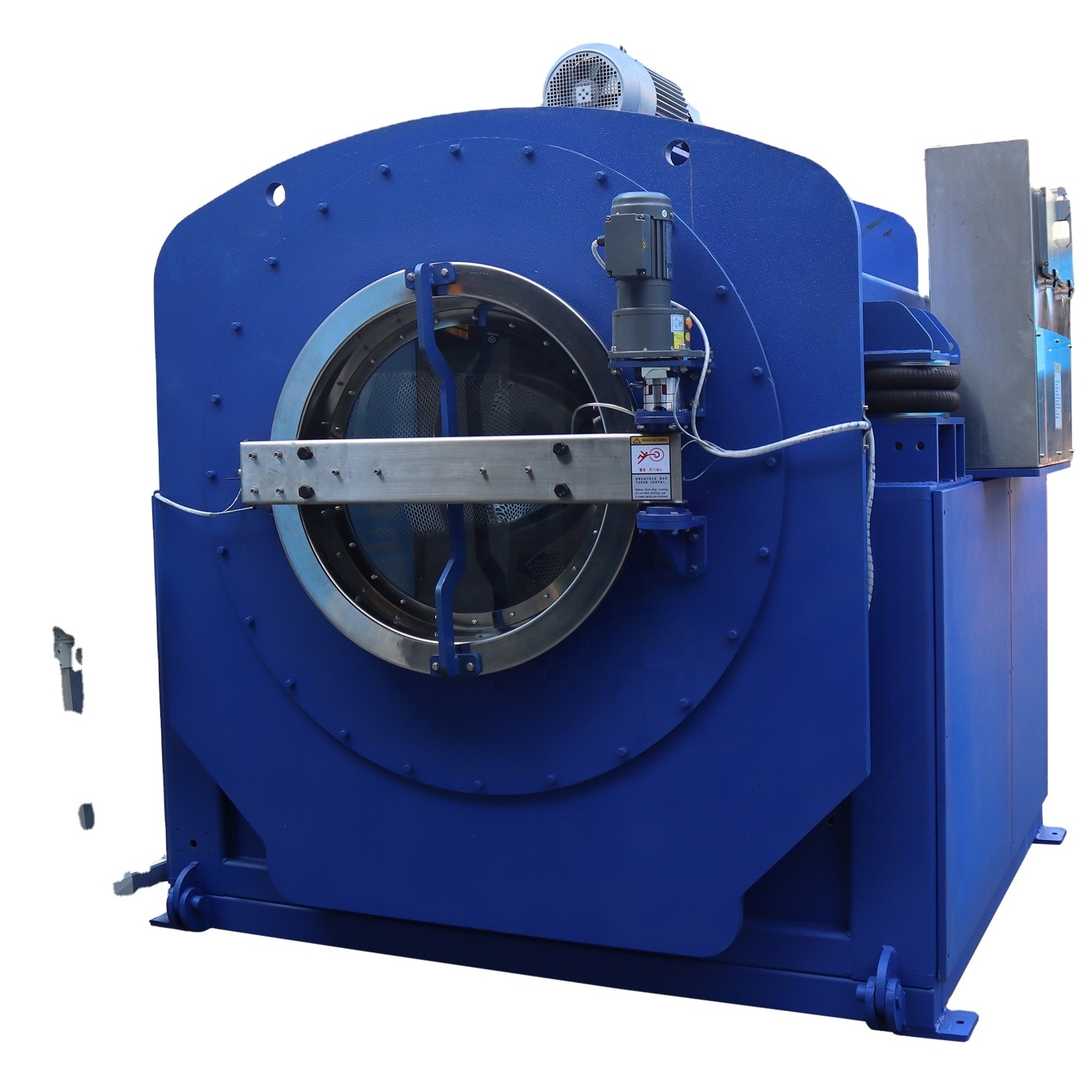

Heavy duty washer extractor machine

click to All spread feeding machine series page

◎ Adopt advanced frame structure,strong and stable.
◎ The first enterprise in the industry to use full-color touch screen,easier operatior

◎ 350G high extracting force,greatly reducing drying energy consumption and tim

◎ Patented door seal structure,easy to open and close,avoiding cloth tearing.

1. Program: PLCcontrol,editable

2. L anguage:English

3. Fully Big Screen panel

4. Simple and Easy control

5. Safety and Strong Structure

6. Easy Maintenance

Right elevation

Left elevation

Back elevation

PRODUCT SPECIFICATIONS

Mode	Unit	SXT-130FQ	SXT-160FQ
Washing capacity	kg	130	160
Basket Size	mm	Ø1300*1036	Ø1470*900
Washing Speed	rpm	32	32
G force	rpm	350	350
Motor Power	kw	11	18.5-22
Water Pressure	Mpa	0.25-0.6	0.25-0.6
Water consumption	L/T	1575	1575
Steam Pressure	Mpa	0.4-0.6	0.4-0.6
Steam consumption	kg/h	83	83
Compressed air pressure	Mpa	0.4-0.7	0.4-0.7
Compressed air consumption	L/T	10	10
Dimension	m	2.1982.0922.475	2.342.192.35
Weight	kg	4400	5500

PRODUCT CONFIGURATION

Yuantai high power engine,

Customized for industrial washing

Touch Screen,

30+program,

multilingual

High grade Stainless Steel 304,

thickness 2.5mm,

perforations size 7mm

High Quality inverter,

CE mark,

Famous brand

TWB Bearing

High quality

Famous Brand transformer,

Shanghai RENMIN brand,

Copper wire thick

All spare parts are famous brand with good quality,always avaiable for after sale service

Successful Project

Exhibition

EXPO in Shanghai China 2023

1. HOOP tunnel washer with five compartments

2. HOOP high speed spread feeding machine

3. HOOP high speed energy saving dryer 130kg

4. HOOP high spin centrifuge

EXPO in Indonesia 2019

1. HOOP high speed spreading feeder

2. HOOP double side ironer with six rollers dia 800mm *3300mm

3. HOOP high speed sheets fold

4. HOOP heavy duty 200pounds washer extractor

Certifications

FAQ

Q1：Are you a manufacture?

A1：Yes,we're manufacture since 1993, for now our main office in Shanghai,welcome to visit

Q2：How is the Voltage?

A1：The voltage can be free customized according to the voltage of the destination country.

Q3: How to arrange the shipment?

A1: We sell and ship all over the world, when customer don't have shipping agent, we arrange all shipping and insurance from China to destination port, EXW/FCA/FOB/CFR/CIF avaiable.

Q4: How is the package ?

A1: convenient pack and wooden case package to choose,depends on LCL or FCL or customer,chat for details

Q5: How to choose electric or Steam or Gas ?

A1: Machines are ok for the three heating way, depends on customers place.

Q6: How to choose machine capacity or provide a full project ?

A1: Machines 15kg to 130kg to choose, about one hour per cycle. For full and new projest, machines advice, chat for professional advice.
