Quick Details
-
Core Components:
-
None
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Dimension(L*W*H):
-
1105x710x1270mm
-
Weight:
-
284
-
Product name:
-
Double walled carbon steel bunded fuel diesel storage tank
-
Application:
-
self bunded portable oil storge tank with browser
-
Usage:
-
For storing, managing and dispensing recycled fuel.
-
Medium:
-
waste fuel, oil, petrol, diesel, coolant, etc.
-
Storage capacity:
-
500L to 10000L
-
Material:
-
Carbon Steel
-
Wall:
-
Double-wall
-
Test pressure:
-
35Kpa
-
Tank type:
-
Stationary
-
Type:
-
SUMAC self bunded portable oil storge tank with browser
Quick Details
-
Capacity:
-
500L to 10000L
-
Max Working Pressure(MPa):
-
0 MPa
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
None
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Dimension(L*W*H):
-
1105x710x1270mm
-
Weight:
-
284
-
Product name:
-
Double walled carbon steel bunded fuel diesel storage tank
-
Application:
-
self bunded portable oil storge tank with browser
-
Usage:
-
For storing, managing and dispensing recycled fuel.
-
Medium:
-
waste fuel, oil, petrol, diesel, coolant, etc.
-
Storage capacity:
-
500L to 10000L
-
Material:
-
Carbon Steel
-
Wall:
-
Double-wall
-
Test pressure:
-
35Kpa
-
Tank type:
-
Stationary
-
Type:
-
SUMAC self bunded portable oil storge tank with browser
Double walled carbon steel bunded fuel diesel storage tank
SUMAC has developed cost effective systems to store and manage hazardous and non-hazardous luquids extracted from ELVs. The tanks are designed to meet international standards for storing hazardous and flammable liquids. All connections are through the top and the double wall design makes them self bunded, eliminating the chance of leakage into the environment. They have a unique outlet arrangement that draws from the floor of the inner preventing build up of any type of sediment. Their cube design makes them a practical solution for storing up to 1000 liters each and can be linked together to store larger quantities.

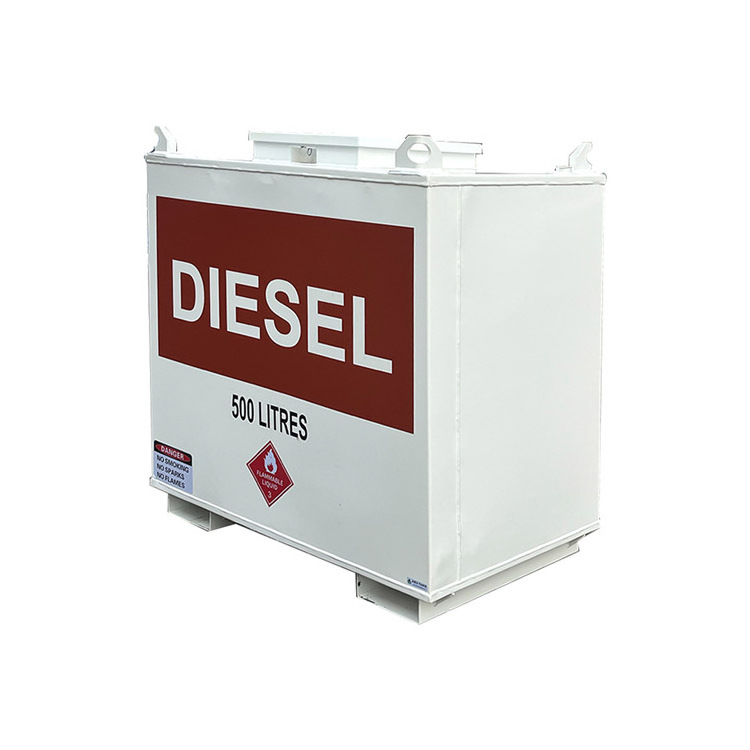

500 Litre Fuel Tank
1000 Litre Fuel Tank
2000 Litre Fuel Tank
3000 Litre Fuel Tank
5000 Litre Fuel Tank
|
Model
|
ARST-500
|
ARST-1000
|
ARST-2000
|
ARST-3000
|
ARST-4500
|
ARST-5000
|
ARST-5000 with frame
|
ARST-6000 with frame
|
ARST-10000 with frame
|
||||||||
|
Length
|
1105mm
|
1100mm
|
2180mm
|
2180mm
|
2200mm
|
2900mm
|
3395mm
|
4280mm
|
7220mm
|
||||||||
|
Width
|
710mm
|
1100mm
|
1420mm
|
2035mm
|
2780mm
|
2200mm
|
2200mm
|
2200mm
|
2200mm
|
||||||||
|
Height
|
1270mm
|
1310mm
|
1305mm
|
1320mm
|
1300mm
|
1290mm
|
1270mm
|
1271mm
|
1271mm
|
||||||||
|
Volume
|
500L
|
1000L
|
2000L
|
3000L
|
4500L
|
5000L
|
5000L
|
6000L
|
10000L
|
||||||||
|
Empty Weight
|
284Kg
|
450Kg
|
960Kg
|
1300Kg
|
1600Kg
|
2200Kg
|
2400Kg
|
2800Kg
|
5000Kg
|
||||||||
|
Feeding/ Discharging
|
1 inch or
Customized
|
|
|
|
|
|
|
|
|
||||||||
|
Test Pressure
|
35Kpa
|
|
|
|
|
|
|
|
|
||||||||
|
Material
|
Carbon Steel
|
|
|
|
|
|
|
|
|
||||||||
|
Type
|
Stationary
|
|
|
|
|
|
|
|
|
||||||||
|
Appliccation
|
Waste fuel, petrol, waste oil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature.
|
|
|
|
|
|
|
|
|
||||||||
All seams are welded to exacting standards.
With lockable lids and Manhole - Easy maintenance and cleaning of carbon steel inner tank
Fit with free vent
Fit with gravity outlet valve
2 Way forklift pockets for 500L, 1000L fuel tank
- Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
4 Way forklift pockets for fuel tank 2000L, 3000L.,etc.
- Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner.
The lifting lug welded to the 500L, 1000L cube tank
Galvanized frame for cube tank 2000L, 3000L.,etc. - attached to tank with screws
Tank connections of 1000L fuel cube tank
Tank connections of 500L fuel cube tank
Tank connections of fuel cube tank 2000L, 3000L.,etc.
· Dipstick
· Fuel Gauge
Q.
What is your standard configuration for connections
A.
Fill Dip,Inlet,Fuel Gauge,Outlet: DN25, or customized.
E-Vent,Free Vent: DN50.
Q.
Can we specify the colour of the tanks and are they painted or powder coating paint?
A.
Yes, can specify colour, powder coating paint.
Q.
Is there any way to check for fluid between the skins (1st and 2nd layer)?
A.
Oil tank with inspection port.
Q.
Can you confirm if the tanks are supplied with, dip stick & the vent?
A.
Yes.
Q.
Is there a suction tube on the outlet port for evac of the waste oil?
A.
Yes.
Q
.
For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity?
A.
Yes.
Q. How can i pay the money without risk?
A. You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
Q. Can I do your agent in our country or some district?
A. Yes, if you quantity is enough, no problem, the 40HQ container is okay.
