Durable and easy to maintain;
Appropriate power design
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Zhongnuo
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5960*1900*3080mm
-
Weight:
-
1200 KG
-
Product name:
-
Small Rotating Drum Sieve Palm Kernel Shell Trommel Screen
-
Keyword:
-
Trommel Screen Sieving Separator Machine
-
Material:
-
Carbon Steel/Stainless Steel 304/316L
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Usage:
-
For sand/ore slurry filtering screening cleaning
-
Levels:
-
1-3 Levels
-
Drum Diameter:
-
1500MM
-
Mesh size:
-
300mm
-
Motor:
-
380V, 50HZ,3Phase or as your demand
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongnuo
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5960*1900*3080mm
-
Weight:
-
1200 KG
-
Product name:
-
Small Rotating Drum Sieve Palm Kernel Shell Trommel Screen
-
Keyword:
-
Trommel Screen Sieving Separator Machine
-
Material:
-
Carbon Steel/Stainless Steel 304/316L
-
Function:
-
Screening\separation\sorting\sieving\Grading
-
Usage:
-
For sand/ore slurry filtering screening cleaning
-
Levels:
-
1-3 Levels
-
Drum Diameter:
-
1500MM
-
Mesh size:
-
300mm
-
Motor:
-
380V, 50HZ,3Phase or as your demand

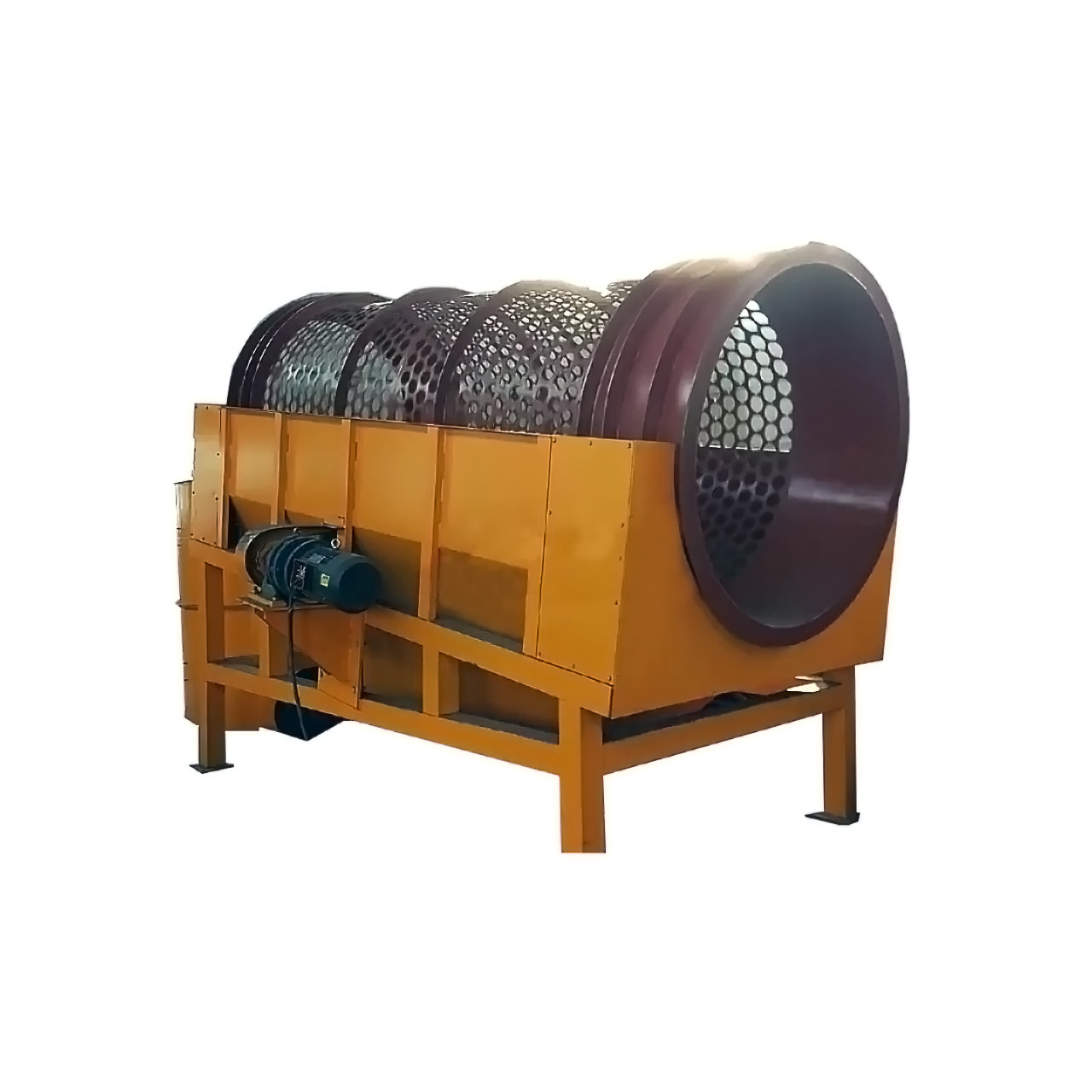

Small Rotating Drum Sieve Palm Kernel Shell Trommel Screen Sieving Separator Machine
Product Description
Small Rotating Drum Sieve Palm Kernel Shell Trommel Screen Sieving Separator Machine
, also known as a rotary screen, is a mechanical screening machine used primarily in the mining and solid-waste processing sectors to separate materials. It is made out of a perforated cylindrical drum that is raised at an angle at the feed end. Physical size separation occurs as the feed material spirals down the spinning drum, with the undersized material passing through the screen apertures and the bigger material exiting at the other end of the drum.
Working Principle
The main structure of
Mild Steel Material Rotating Filtering Dirt Trommel Screener
is the sieve drum which consists of several cylindric screens, this part is tilted to the ground and covered by a dust-preventing hood. Raw materials are sieved from top to bottom of the sieve drum which is driven by motor and reducer to produce a constant speed, the fine material is discharged from the front section and the coarse material from the rear end. The comb shape cleaning device is optional, which could realize the effect of uninterrupted cleaning by the relative motion of the comb tooth and sieve drum, this device could keep the sieve drum always clean, clear and running efficiently throughout the whole operation. According to requirements of sieving, there are 4 sections of the screen from fine to rough, the raw materials are sieved from the previous screen to next screen and discharged to the matched outlet.
Details Images
Drive Units
Screening Drum
Mild/Stainless steel material drum;
Customized mesh size;
Fixed/
removable screen.
Frame
Solid Steel Frame
Dust-proof Hood
Feature
· High capacities
· Simple and robust construction
· Low operating cost
· Low wear costs
· Low maintenance
· Steel Dust Enclosure to minimize noise & dust pollution
· Removable Screen Plates/Mesh (all the same size)
· Removable Material Lifters
· Typical 5 Degree Angle Set-Up
· Automatic Lubrication
· High quality components throughout
· Simple and robust construction
· Low operating cost
· Low wear costs
· Low maintenance
· Steel Dust Enclosure to minimize noise & dust pollution
· Removable Screen Plates/Mesh (all the same size)
· Removable Material Lifters
· Typical 5 Degree Angle Set-Up
· Automatic Lubrication
· High quality components throughout
|
Model
|
Capacity （T/h）
|
Power （kW）
|
Effective diameter
(mm)
|
Effective Length （mm）
|
Inlet Material Size (mm)
|
Outlet Material Size (mm)
|
Dimension
(mm)
|
|
ZNGTS-1015
|
50
|
3
|
1000
|
1500
|
≤300
|
0-100
|
2600*1400*1700
|
|
ZNGTS-1020
|
100
|
4
|
1000
|
2000
|
≤300
|
0-100
|
3390*1400*2140
|
|
ZNGTS-1225
|
160
|
5.5
|
1200
|
2500
|
≤300
|
0-100
|
4146*1600*2680
|
|
ZNGTS-1530
|
250
|
7.5
|
1500
|
3000
|
≤300
|
0-100
|
4460*1900*2820
|
|
ZNGTS-1545
|
350
|
11
|
1500
|
4500
|
≤400
|
0-100
|
5960*1900*3080
|
|
ZNGTS-1848
|
450
|
15
|
1800
|
4800
|
≤400
|
0-100
|
6500*2350*4000
|
|
ZNGTS-2055
|
600
|
22
|
2000
|
5500
|
≤400
|
0-100
|
7500*2550*4800
|
|
ZNGTS-2265
|
800
|
30
|
2200
|
6500
|
≤400
|
0-100
|
8500*2750*5000
|
FAQ
Q:How to choose the suitable machine?
A:Please tell us the below information and we can choose the suitable model:
1. Name and feature of the raw material?
2. Production capacity: kg /h, L/h?
3. Purpose of using: screening, filtration, grading or get rid of impurity?
4. The raw material size: (mesh or mm)?
5. How many final materials you want, or how many layer you need?
6. Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.
Q:Is it support the special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: How long will my order take?
A: Normal delivery is about 15 working days. Ending delivery schedule depends on the quantity and items you ordered.
Packing & Delivery
Packing:
We used the standard export wooden case package.
Delivery: Shipping by sea, air and railway transport, also we can shipping by courier for the goods of small volume and weight.
Delivery: Shipping by sea, air and railway transport, also we can shipping by courier for the goods of small volume and weight.
