Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tai Teng
-
Model Number:
-
3000pounds
-
Product name:
-
Electric winch
-
Model number:
-
3000 pounds
-
Dimensions:
-
Make to order
-
Color:
-
Custom color
-
Features of Products:
-
Convenient and strong foot
-
Process and technology:
-
Press and stamping parts
-
Shape:
-
Rectangle of shape
-
Material quality:
-
Pure copper
-
Technics:
-
Press and stamping parts
Quick Details
-
Power:
-
1400W, 1200W
-
Application:
-
CRANES
-
Voltage:
-
24V, 12V
-
Warranty:
-
1year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Tai Teng
-
Model Number:
-
3000pounds
-
Product name:
-
Electric winch
-
Model number:
-
3000 pounds
-
Dimensions:
-
Make to order
-
Color:
-
Custom color
-
Features of Products:
-
Convenient and strong foot
-
Process and technology:
-
Press and stamping parts
-
Shape:
-
Rectangle of shape
-
Material quality:
-
Pure copper
-
Technics:
-
Press and stamping parts

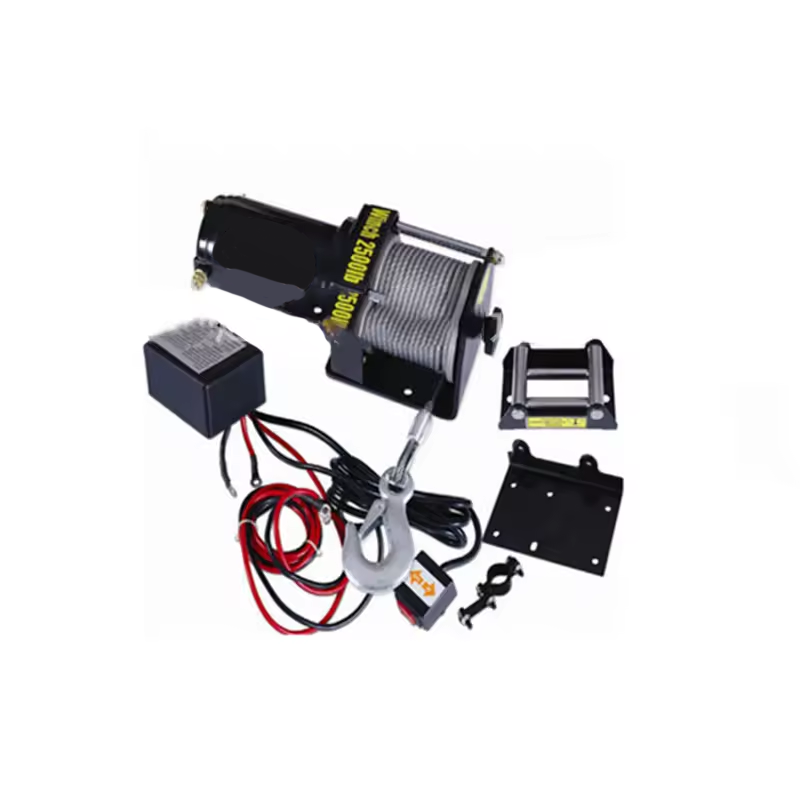

Product Description
Electric winch has compact structure, it is economical & easy to install, and wide range of application. The product has the characteristic brake promptly, small volume, light, compact, convenient and easy to maintain.
|
Type
|
Rated traction
(KG)
|
Vertical lifting
(KG)
|
Wire rope
(diameter*length)
|
Overall dimension
(length*width * height)
|
|
2000 lbs
|
900
|
200
|
4mm * 6m
|
268*110*105mm
|
|
3000 lbs
|
1300
|
300
|
5mm *6m
|
299*110*105mm
|
|
3500 lbs
|
1500
|
350
|
5mm * 10m
|
320*110*105mm
|
|
4000 lbs
|
1800
|
400
|
5mm * 10m
|
343*110*112mm
|
|
4500 lbs
|
2000
|
450
|
5mm * 10m
|
363*110*112mm
|
|
6000 lbs
|
2700
|
500
|
7mm * 14m
|
340*160*217mm
|
|
9500 lbs
|
4300
|
600
|
9mm * 24m
|
529*160*217mm
|
|
12000 lbs
|
5400
|
750
|
9mm * 24m
|
529*160*217mm
|
|
13500 lbs
|
6000
|
800
|
9mm * 24m
|
529*160*217mm
|
Features:
1.Magnetic automatic brake system ensures electric winch a stable breaking,makes the positive and negative rotation possible.
2.Strengthened bracket meshes the gear completely,reducing the attrition.
3.The gear is made of alloy copper material and applied with grease that can be used in extreme climate.
4.Wireless remote controller is easy for operation.
Winch clutch
Open the clutch housing to manually release the rope, and the clutch is provided on
the right side of the machine
Copper core wiring pile
Copper core terminal, not easy to corrode, good conductivity, low resistance, low heat
UPGRADE CLUTCH
Better control
and safer
G80
MANGANESESTEEL HOOK
