Quick Details
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 150*150*100 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIXIN
-
Voltage:
-
240v or 380v
-
Dimension(L*W*H):
-
4100*1350*2050mm
-
Weight (KG):
-
2300 kg
-
Overall Dimension:
-
3800*1350*2100mm
-
Hydraulic Pressure:
-
15~25MPa
-
Total Weight:
-
2300kg
-
Total Power:
-
11kw
-
Oil Tank Volume:
-
80L
-
Raw material:
-
Soil Cement
-
Color:
-
Optional
-
Model:
-
TX4-10
-
Block Type:
-
Hollow Interlock Block
-
Product Name:
-
TX4-10 ecological brick making machine
Quick Details
-
Type:
-
Paving Block Making Machine, Interlock Block Making Machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
11520pcs/shift
-
Brick size:
-
200*100*60 mm, 300*150*100 mm, 150*150*100 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIXIN
-
Voltage:
-
240v or 380v
-
Dimension(L*W*H):
-
4100*1350*2050mm
-
Weight (KG):
-
2300 kg
-
Overall Dimension:
-
3800*1350*2100mm
-
Hydraulic Pressure:
-
15~25MPa
-
Total Weight:
-
2300kg
-
Total Power:
-
11kw
-
Oil Tank Volume:
-
80L
-
Raw material:
-
Soil Cement
-
Color:
-
Optional
-
Model:
-
TX4-10
-
Block Type:
-
Hollow Interlock Block
-
Product Name:
-
TX4-10 ecological brick making machine

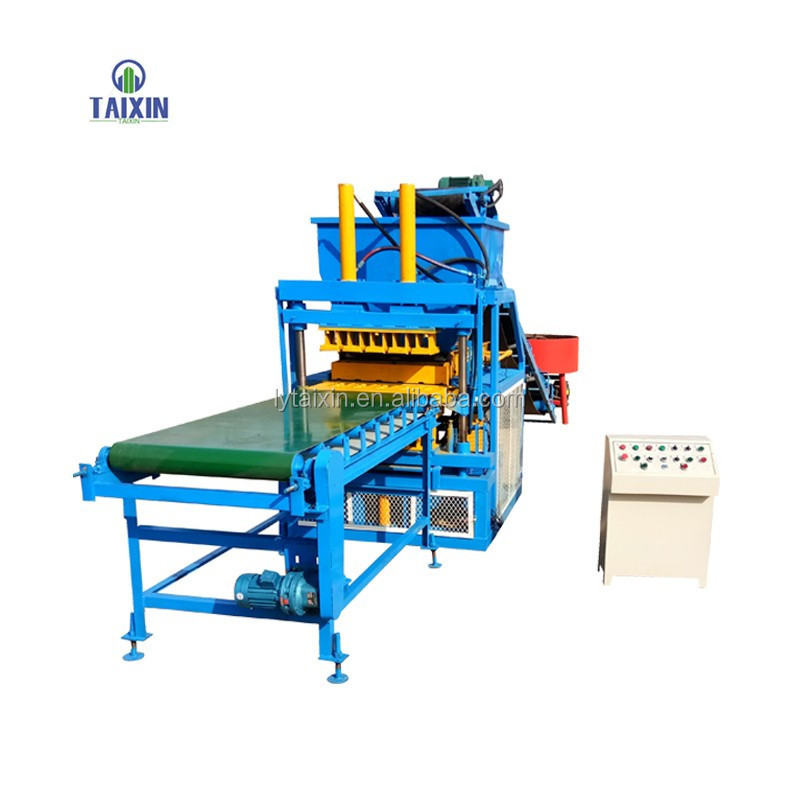

Simple Introduction:
| non fire brick making machine TX4-10 mold master brick making machine for sale is the eqipment to produce eco evironmental interlocking building blocks , It is improved and upgraded new model based on the TX2-10. The whole machine is switched to the Longmen type frame, the structure is stable, the rotating material, and the spring clamping type shock absorber assembly. The equipment can produce 4 pieces of interlocking blocks per press , and the use of feeding raw materials to achieve automatic push out blocks function, greatly improve the efficiency of the work. have greater improvement. In the production and quality. |
Technical Parameters:
| TX4-10 Block Making Machine | |
| Dimension of host machine | 4100*1320*2050mm |
| Machine power | 11.75kw |
| Molding Cycle | 8-12 seconds |
| Working mode | Hydraulic Press ( 60Tons) |
| Weight of the machine | 2300kg |
| Capacity | 14400PCS/8hours |
| Theoretical workshop area | 200-300m2 |
| Needed workers | 2-3 workers |
| Features | Fully Automatic |
| JQ500 Mixer ( Diameter 1.5m) | |
| Feeding capacity | 750L |
| Discharging capacity | 500L |
| Motor power | 7.5kw |
| Cycle | 35-40s |
| Mass | 850kg |
| Overall size | 1500-1500-1250mm |
| Mixing volume | 0.75m3(1000kg) |
| Diameter | 1500mm |
| Soil Crusher | |
| Overall size mm | 1100x1100x1400mm |
| Motor | 5.5kw |
| Capacity | 4-5ton/H |
| Voltage | 220-415v(adjustable) |
| Total weight | 400KG |
| Soil Sieve | |
| Power | 1.1kw |
| Capacity | 480KGS/H |
| Electricity | 220-415v(adjustable) |
| Diameter Size | 500mm |
| Total weight | 180kg |
Capacity List :
| BLOCK SIZES | PHOTO | CYCLE TIME | PCS/MOULD | PCS/HOUR |
| Interlocking block(lego block) (300x150x100mm) |
|
10s | 4 | 1440 |
| “U” model block(beam block) (300x150x100mm) |
|
10s | 4 | 1440 |
| Half block(lego block) (150x150x100mm) |
|
10s | 8 | 2880 |
