According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongFa ( HF )
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
2150x1660x2550(mm)
-
Weight (KG):
-
4000 kg
-
After-sales Service Provided 1:
-
Engineers available to service machinery overseas
-
After-sales Service Provided: 2:
-
Overseas service center available
-
Raw Materials::
-
crushed stone, sand, cementand other industrial wastes
-
Applied product::
-
concrete blocks, solid/hollow/cellular
-
After-sales Service Provided 3:
-
Online support
-
After-sales Service Provided 4:
-
Free spare parts
-
After-sales Service Provided 5:
-
Field installation, commissioning and training
-
After-sales Service Provided 6:
-
Field maintenance and repair service
-
After-sales Service Provided 7:
-
Video technical support
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
3000-4000pcs
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongFa ( HF )
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
2150x1660x2550(mm)
-
Weight (KG):
-
4000 kg
-
After-sales Service Provided 1:
-
Engineers available to service machinery overseas
-
After-sales Service Provided: 2:
-
Overseas service center available
-
Raw Materials::
-
crushed stone, sand, cementand other industrial wastes
-
Applied product::
-
concrete blocks, solid/hollow/cellular
-
After-sales Service Provided 3:
-
Online support
-
After-sales Service Provided 4:
-
Free spare parts
-
After-sales Service Provided 5:
-
Field installation, commissioning and training
-
After-sales Service Provided 6:
-
Field maintenance and repair service
-
After-sales Service Provided 7:
-
Video technical support
-
Certification:
-
CE/ISO9001
Product Description

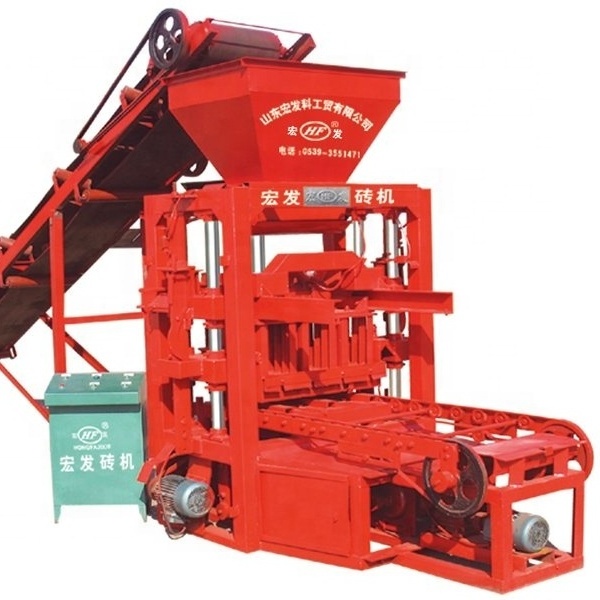

QTJ4-26C Semi-automatic brick making machine paver interlocking blocks machines
QTJ4---26 block machine is a kind of semi-automatic type based on the original medium and small-scale block machine by us .
It adopts four-lead ,channel steel stander making the equipment more firm and the mould and the squeeze head Orentation more precise ,and bed mould orientation vertical vibration and upper mould compression vibration ,which improves the efficiency greatly and manufactures blocks with more average density and higher strength.
|
Dimension
|
3600*1700*2560mm
|
|
Main vibration
|
platform
|
|
Vibration frequency
|
4200r /min
|
|
Pallet Size
|
850*450*40mm
|
|
Molding Cycle
|
26 (s)
|
|
Overall Power
|
11.25kw
|
|
Raw Materials
|
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
|
|
Applied Products
|
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
|
Applied Fields
|
widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc.
|
Products Show
introduction :
Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Productivity
|
Item
|
Specification size
|
Quantity per mold
|
Per hour
|
Per day
|
|
Hollow brick
|
400*200*200mm
|
4pcs
|
300pcs
|
3000pcs/day
|
|
Hollow brick
|
400*150*200mm
|
6pcs
|
450pcs
|
4500pcs/day
|
|
Color brick
|
225*112.5*60mm
|
9pcs
|
700pcs
|
7000pcs/day
|
Our Service
Pre-sale service support
During-sale service support
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.
After-sale service support
Send technicians to installation site for the guidance, equipment adjustment and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.
Related Products
Company Introduction
Certifications
Packing&Shipping
FAQ
1.Q:What is the material of the brick?
A: Cement,sand,stone.fly ash,building waste and so on.
2.Q:What kind of the brick that the brick making machine can produce?
A: All kinds of the hollow block and paving brick.
You can customize the type of brick.
3.Q:what is the driving power of the hollow block making machine?
A: Electricity and diesel engine.
4. Q: Are you a manufacturer of a trading company?
A:We are the biggest building materials machinery manufacturers, with strong technical force, reliable product quality, which merge science,industry and trade together in one.Welcome to our factory at any time.
5. Q: How can I pick up a suitable machine ?
A: Only clarify your required output per day or per shift (8 hours) as well as your budget, then we can recommend suitable machine with very competitive price.
6. Q: How about the installation ?
A: We support Overseas Installation for all our medium / big machines, small machines you will gain online video technical support (Trading company may not support).
7.Q: What kind of blocks can be produced by this plant?
A: You can get blocks with different sizes by changing the position of cutting wires.
8. Q: Can you assure the quality?
A: Yes, we can. Our equipment will be carefully tested before shipping, and can be used over 10 years. If you worry about that, we can make the translation via Trade Assurance Order on Alibaba.
9. Q: How can I get this plant?
A: You can visit our factory at first, and if you want to buy, we can transport the equipment to you by sea after we get the payments.
