Quick Details
-
Model Number:
-
Type E 4 layers A/C hose 13mm
-
Hose Standard:
-
SAE J2064
-
Temperature:
-
-40℃ to +135℃
-
ID:
-
10.2mm
-
OD:
-
17.2mm
-
work pressure:
-
1.5MPa
-
Burst pressure:
-
21.5MPa
-
Barrier:
-
Nylon
-
Reinforcement:
-
Fiber Braid
-
Application:
-
Auto Car air conditioning system
-
Name:
-
flexible hose 4 layers Auto AC hose car air conditioner pipe
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BAILI
-
Model Number:
-
Type E 4 layers A/C hose 13mm
-
Hose Standard:
-
SAE J2064
-
Temperature:
-
-40℃ to +135℃
-
ID:
-
10.2mm
-
OD:
-
17.2mm
-
work pressure:
-
1.5MPa
-
Burst pressure:
-
21.5MPa
-
Barrier:
-
Nylon
-
Reinforcement:
-
Fiber Braid
-
Application:
-
Auto Car air conditioning system
-
Name:
-
flexible hose 4 layers Auto AC hose car air conditioner pipe
Product Description
flexible hose 4 layers Auto AC hose car air conditioner pipe 13mm
4 layers Automotives Air conditioning hoses

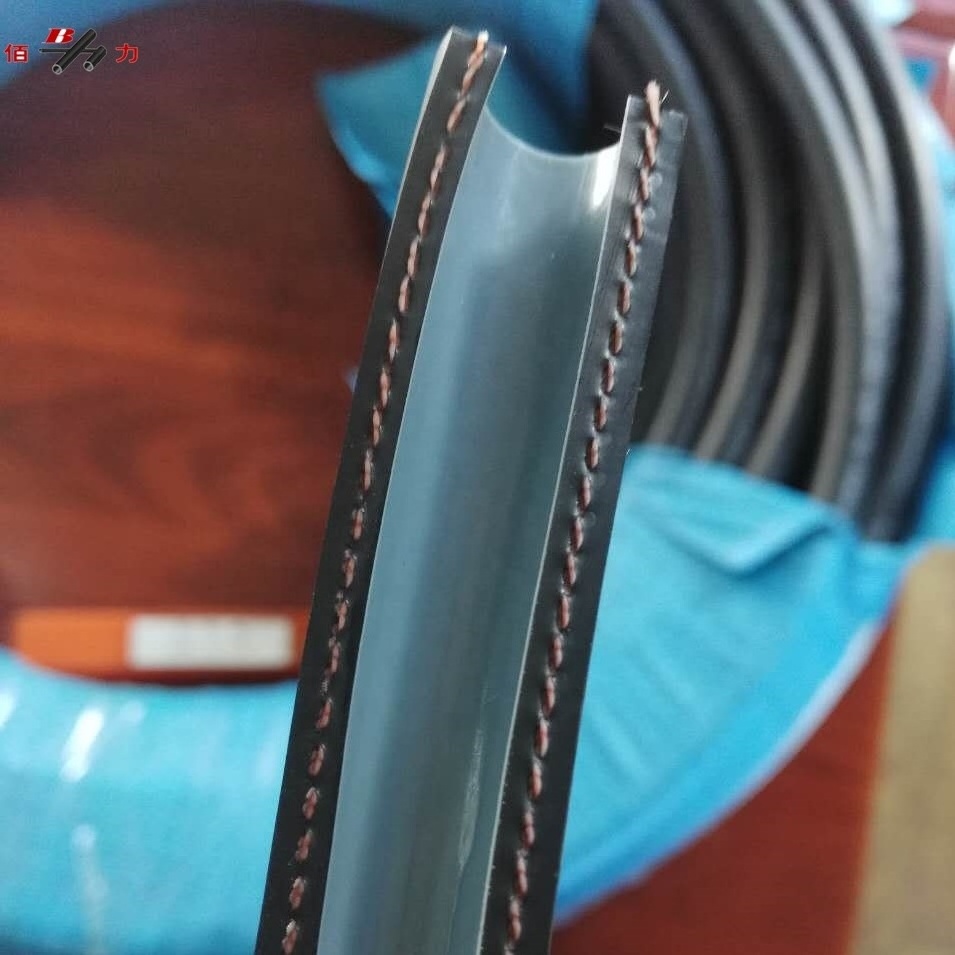

Construction:
Barrier: NYLON
Buffer: NBR
Reinforcement: synthetic fiber braid
Cover: EPDM blended, black,weather and ozone resistant
Standard: SAE J2064 QC/T664
Application:For the transportation of R12, R22, R502,R134a medium etc. Widely applied in vehicle air conditioning,
air-condition industry freezing device.
Air conditioning flexible hose 4 layers car air conditioner pipe 13mm
4 layers Automotives Air conditioning hoses
| No. | Dia.(mm) | ID(mm) | OD(mm) | wall(mm) | Wall thickness diff(Max. mm) | Work pressure(Max. Mpa) | Burst Pressure(Max. MPa) |
Bend Radius
(Min.mm) |
| 1 | 8.0 | 8.2 | 15.2 | 3.50 | 0.4 | 3.5 | 23.0 | 55 |
| 2 | 10.0 | 10.2 | 17.2 | 3.50 | 0.4 | 3.5 | 22.0 | 65 |
| 3 | 11.5 | 11.2 | 18.4 | 3.60 | 0.4 | 3.5 | 21.0 | 70 |
| 4 | 13.0 | 13.2 | 20.8 | 3.80 | 0.4 | 3.5 | 24.0 | 75 |
| 5 | 13.0 | 13.2 | 20.8 | 3.80 | 0.4 | 1.5 | 21.0 | 75 |
| 6 | 15.5 | 15.2 | 22.0 | 3.80 | 0.4 | 1.5 | 20.0 | 85 |
| 7 | 19.0 | 18.5 | 27.5 | 4.50 | 0.4 | 1.5 | 12.0 | 100 |
| 8 | 25.5 | 25.0 | 38.7 | 5.50 | 0.5 | 1.5 | 12.0 | 180 |
