Quick Details
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
110 degree
-
CRI (Ra>):
-
>80
-
Input Voltage(V):
-
AC90-240V(50/60Hz), AC/DC24V
-
Lamp Luminous Efficiency(lm/w):
-
120lm/w
-
Lamp Luminous Flux(lm):
-
840/1440/1920/2400
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20~45℃ / 10%-90%
-
Color Rendering Index(Ra):
-
>80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
M9S
-
Brand Name:
-
ONN
-
Power(length):
-
7W(300mm), 12W(400mm), 16W(600mm), 20W(800mm)
-
Input voltage(current):
-
AC90-240V(50/60Hz), AC/DC24V
-
Lumen efficiency:
-
120lm/w
-
CRI:
-
>80
-
IP rating:
-
IP67
-
Beam angle:
-
110 degree
-
Color temperature:
-
2800-3200K, 4000-4500K, 6000-6500K
-
Material:
-
Aluminum housing , Tempered glass
-
Lifetime:
-
50,000 hours
-
Certification:
-
CE ROHS FCC
Quick Details
-
Color Temperature(CCT):
-
2800-3200K, 4000-4500K, 6000-6500K
-
Warranty(Year):
-
2-Year
-
Power Supply:
-
AC, DC
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
110 degree
-
CRI (Ra>):
-
>80
-
Input Voltage(V):
-
AC90-240V(50/60Hz), AC/DC24V
-
Lamp Luminous Efficiency(lm/w):
-
120lm/w
-
Lamp Luminous Flux(lm):
-
840/1440/1920/2400
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20~45℃ / 10%-90%
-
Color Rendering Index(Ra):
-
>80
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
M9S
-
Brand Name:
-
ONN
-
Power(length):
-
7W(300mm), 12W(400mm), 16W(600mm), 20W(800mm)
-
Input voltage(current):
-
AC90-240V(50/60Hz), AC/DC24V
-
Lumen efficiency:
-
120lm/w
-
CRI:
-
>80
-
IP rating:
-
IP67
-
Beam angle:
-
110 degree
-
Color temperature:
-
2800-3200K, 4000-4500K, 6000-6500K
-
Material:
-
Aluminum housing , Tempered glass
-
Lifetime:
-
50,000 hours
-
Certification:
-
CE ROHS FCC

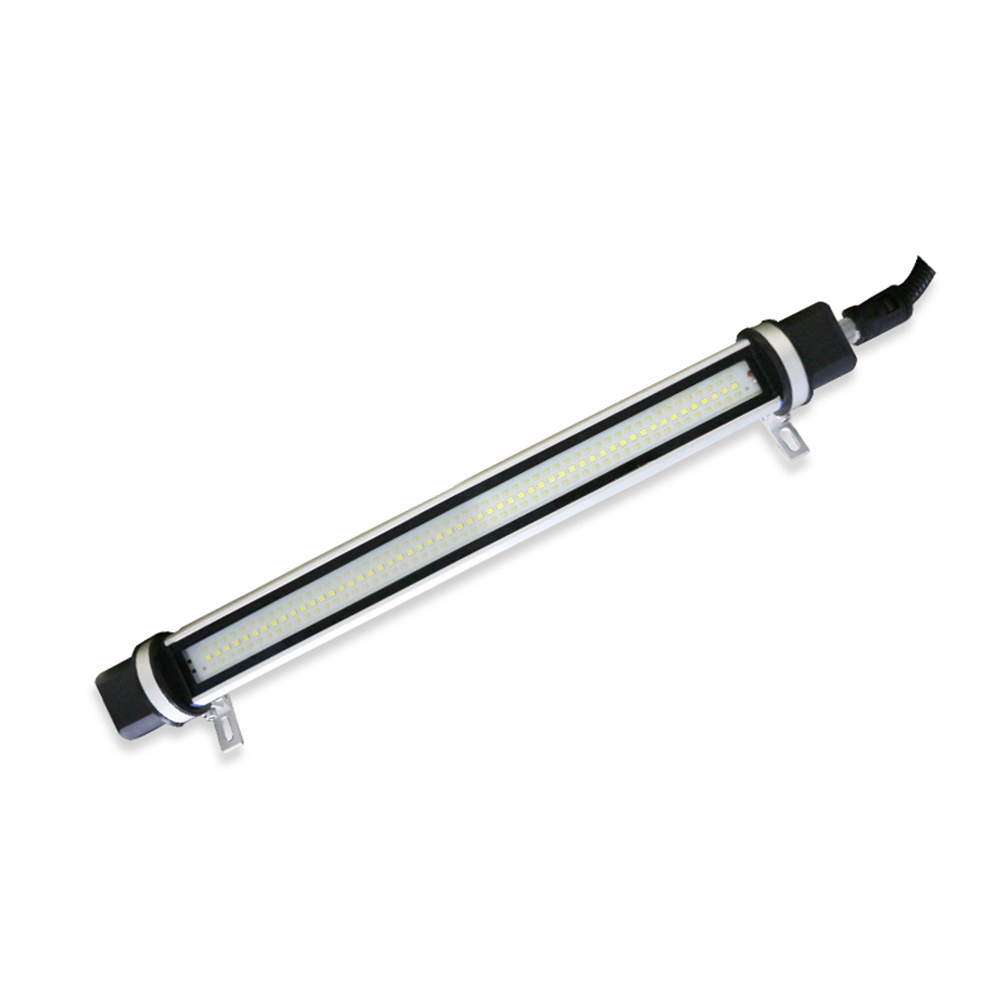

ONN M9S linear led work light DC24V IP67 explosion proof waterproof cnc machine light
Product Description
Features
1.ONN-M9S is designed for harsh environment.
2.Using anodized aluminum lamp body, tempered glass, PA + glass fiber end cap.
3.IP67 rating, resistant to high pressure wash, coolants and detergents.
4.Adopt high brightness SMD2835 LED chip, 120lm/w.
5.Frosted cover available to decrease glare.
6.Easy to install and control the lighting direction.
7.Two input voltages optional: AC90-240V 50/60Hz, AC/DC24V.
Specifications
|
Power(length)
|
7W(300mm), 12W(400mm),
16W(600mm), 20W(800mm) |
|
Input voltage(current)
|
AC90-240V(50/60Hz), AC/DC24V
|
|
Lumen efficiency
|
120lm/w
|
|
CRI
|
>80
|
|
IP rating
|
IP67
|
|
Beam angle
|
110 degree
|
|
Color temperature
|
2800-3200K, 4000-4500K, 6000-6500K
|
|
Material
|
Aluminum housing , Tempered glass
|
|
Lifetime
|
50,000 hours
|
|
Working temperature/ humidity
|
-20~45℃ / 10%-90%
|
|
Storage temperature/ humidity
|
-40~60℃ / 10%-90%
|
|
Installation
|
Fixed by brackets
|
Ordering Code
|
ONN M9S - B 1 - 600S - 12
W
|
|
|
|
1 2 3 4 5
|
|
|
|
1. Model
|
M9S
|
|
|
2. Input Voltage
|
B. AC/DC24V C. AC90-240V
|
|
|
3. CCT.
|
1: 6000-6500K(cool white) 2: 4000-4500K(natural white) 3: 2800-3200K(warm white)
|
|
|
4. Length
|
300S. 300mm 400S. 400mm
600S. 600mm 800S. 800mm |
|
|
5. Power
|
7W, 12W, 16W, 20W
|
|
Product Size Drawing
Application
CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Laboratories.
Assembly and repair work.
Laboratories.
