Quick Details
-
Model Number:
-
T5R13C, T5R13C
-
Max. Current:
-
15A
-
Mechanical Life:
-
10000
-
Rated current:
-
10A/15A
-
Rated voltage:
-
125V/250VAC
-
Mounting hole:
-
12MM
-
Humidrty:
-
85% RH max
-
Contact reslstance:
-
Contact reslstance
-
Insulation resistance:
-
Under 500VOC
-
O,electric strength:
-
For l mtnute
-
Certificate:
-
CCC CE
-
Certification:
-
yes
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TMAZTZ
-
Model Number:
-
T5R13C, T5R13C
-
Max. Current:
-
15A
-
Mechanical Life:
-
10000
-
Rated current:
-
10A/15A
-
Rated voltage:
-
125V/250VAC
-
Mounting hole:
-
12MM
-
Humidrty:
-
85% RH max
-
Contact reslstance:
-
Contact reslstance
-
Insulation resistance:
-
Under 500VOC
-
O,electric strength:
-
For l mtnute
-
Certificate:
-
CCC CE
-
Certification:
-
yes
Product Description

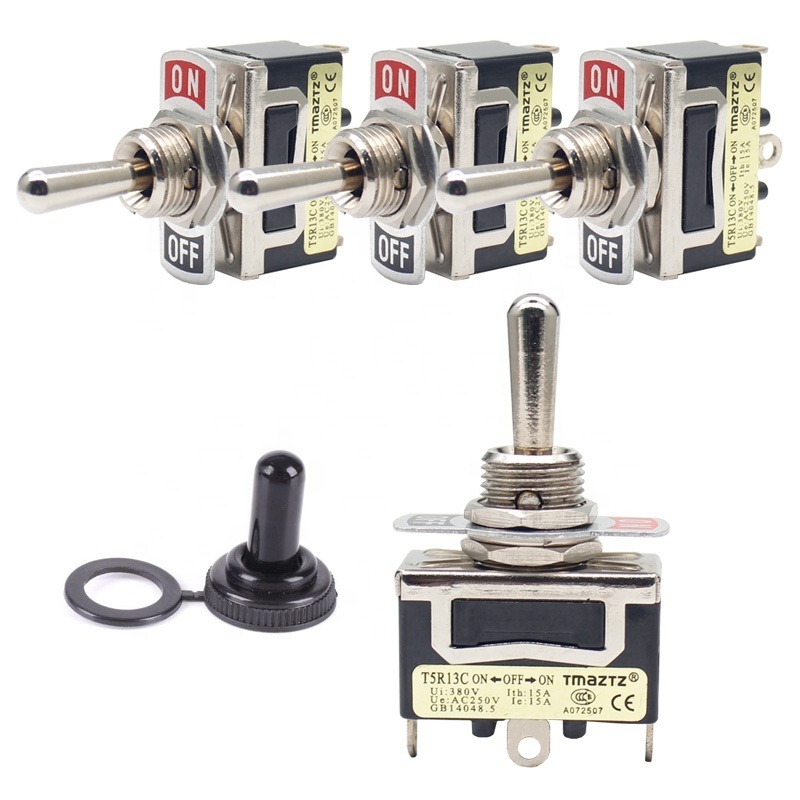

ROCKER TOGGLE SWITCHSPST 3 Pin 15A 250V/20A 125V ON/OFF/ON Switch
Feature:
- Movement way has fi xed type and auto-return type (both single-throw and double-thr ow can r eturn).
- The terminal block has screw terminal, solder terminal and tab terminal.
- Rainproof cap, water- proof and oil-proof, it is suitable for full series pr-oducts
- Mounting hole: φ12mm.
Characteristics:
| Contact resistance | 15MΩ max. (initial) |
| Insulation resistance | 100MΩ Under 500VDC |
| Dielectric strength | 2000VAC,50/60Hz For 1minute |
| Vibration | 10 to 55Hz,1.5mmDouble amplitude |
| Ambien temperture | -10°C~+70°C(With no icing) |
| Humidity | 85% RH max |
| Electrical life | Above 25000 |
