Quick Details
-
Length:
-
2m(6.5ft),2.44m (8 ft), 3m (10 ft),customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF
-
Model Number:
-
CL
-
Side Rail Height:
-
50/75/100/150/200
-
Max. Working Load:
-
328kg/m
-
Color:
-
Customized Color
-
Surface Finish:
-
Coated, Galvanized, HDG, Coated Al-Zinc
-
Certification:
-
ISO CE CQC TUV
-
Thickness:
-
1.0-3.0mm
-
MOQ:
-
10meters
-
Payment terms:
-
T/T
-
OEM:
-
Availabe
-
Product type:
-
trunking, perforated, ladder, strut, wire mesh,
-
Export Range:
-
Overseas
Quick Details
-
Type:
-
Ladder Tray
-
Material:
-
Steel
-
Width:
-
150mm-900mm
-
Length:
-
2m(6.5ft),2.44m (8 ft), 3m (10 ft),customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF
-
Model Number:
-
CL
-
Side Rail Height:
-
50/75/100/150/200
-
Max. Working Load:
-
328kg/m
-
Color:
-
Customized Color
-
Surface Finish:
-
Coated, Galvanized, HDG, Coated Al-Zinc
-
Certification:
-
ISO CE CQC TUV
-
Thickness:
-
1.0-3.0mm
-
MOQ:
-
10meters
-
Payment terms:
-
T/T
-
OEM:
-
Availabe
-
Product type:
-
trunking, perforated, ladder, strut, wire mesh,
-
Export Range:
-
Overseas
Products Description

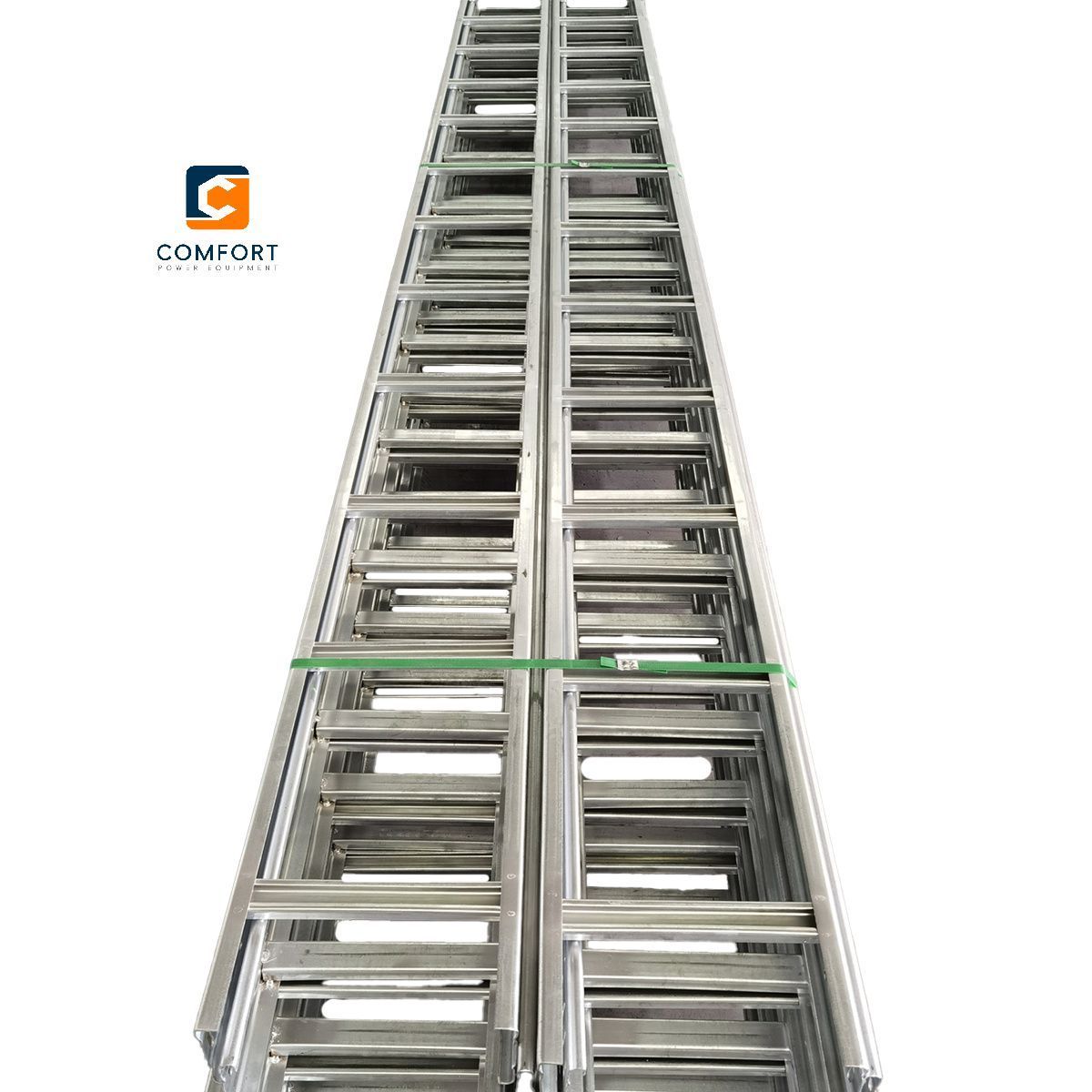

Cable Tray Cable Ladder
Light weight and low cost,
Good heat dissipation and ventilation performance
Flexible wiring
Advantages of our cable trunking:
|
Thickness(mm)
|
0.6~3.0mm
|
|
Width(mm)
|
150-900mm customized
|
|
Height(mm)
|
50/75/100/150/200
|
|
Length(mm)
|
2m(6.5ft),2.44m (8 ft), 3m (10 ft),customized
|
|
Other Material & Finish Available |
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Stainless Steel SS304 / SS316 Powder Coated - for indoor use to JG/T3045 Aluminum to AS/NZS1866 Fiberglass Reinforced Plastics / FRP /GRP Fire Rated to AS3013:2005 Electrolytic Polishing – for Stainless Steel use Mill / Mild /Plain Steel to ISO 4995 |
|
Product Size
|
Width 25-900mm with slotted Thickness: 0.8mm-3.0mm
length is cut according to customer's requirements
U or C shape with standard AISI, ASTM, GB,BS,EN,JIS,DIN or customer's drawings |
|
Product Material and Surface
|
· Material: carbon steel aluminum stainless steel
· Surface coating: Galvanized Hot Dipped Galvanizing Electrolytic Galvanizing Powder coating Neomagnal Anodizing |
|
Corrosion Rating of Galvanizing
|
For example
Outdoor:Atmospheres with low contamination levels. Mostly rural areas.Indoor:Unheated buildings with possible condensation, such as warehouses and sports halls. Galvanization wear：0,1 μm - 0,7 μm in a year |
|
Corrosion Rating of Hot Dipped Galvanized
|
For example
Indoor:Production premises with high humidity levels and some impurities in the air, such as food industry facilities. Outdoor:Urban and industrial atmosphere with medium sulphur dioxide levels. Coastal areas with low salinity levels. Galvanization wear:0,7 μm - 2,1 μm in a year Indoor:Chemical industry production plants, coastal shipyards and boatyards. Outdoor:Industrial areas and coastal areas with medium salinity levels.Galvanization wear：2,1 μm - 4,2 μm in a year |
Good Quality Makes Us Different
* All support channel products are produced by ISO9001 or CE certified mill
* All support channel products are EN10204 3.2 Certified
* Non-destructive Testing Report are available if required
* Surface Treatment Report are available if required
* Mechanical Testing Report are available if required
* All support channel products are produced by ISO9001 or CE certified mill
* All support channel products are EN10204 3.2 Certified
* Non-destructive Testing Report are available if required
* Surface Treatment Report are available if required
* Mechanical Testing Report are available if required
