Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
champion
-
Model Number:
-
CZB 1260S-450
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
16450*5300*3100
-
Weight:
-
22 KG
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
champion
-
Model Number:
-
CZB 1260S-450
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
16450*5300*3100
-
Weight:
-
22 KG
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Dear sir,Pls find our Specification and payment term as below:
| Payment | TT/L.C |
| Delivery | 60-120 days |
Introduction

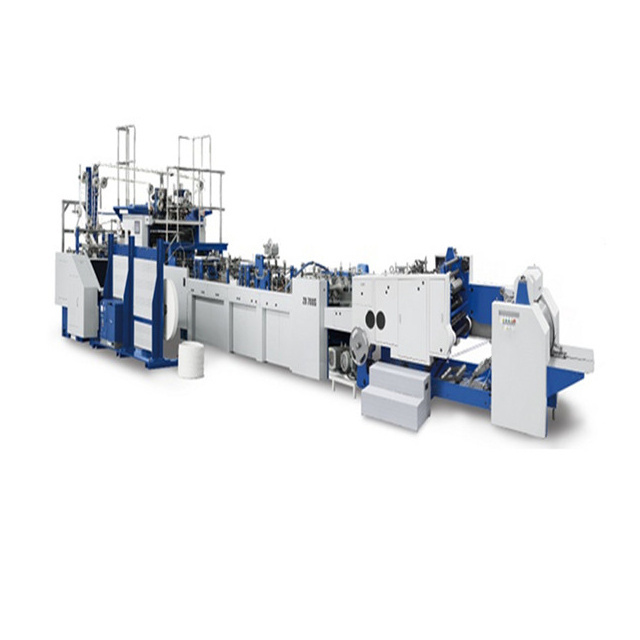

CZB1260S-450 Fully automatic paper bag making machine adopts sheet paper , reel reinforced paper and twist rope paper as material to produce paper bags in one time.The process contains handle making, handle pasting,top folding(or without top folding),tube forming,gusset folding,bottom pasting,compaction output or reinforced paper pasting,top folding,tube forming,gusset folding,eyelet punching,bottom pasting and compaction output.Three bag types are all available on this machine.Based on the traditional machine mechanical handle/patch cutting unit,this machine updated to servo cutting system which has a much more compact structure.Shorter setup time,safer working condition,bigger and convenient operation space are all its advantages.
Applicable Paper
Suitable Paper:Kraft paper,art paper(including film laminated paper)
|
|
A |
B |
C |
D |
E |
|
Max.Size Min.Size |
1200
|
620
|
170
|
450
|
490
|
Main Technical Parameters
This machine can produce 3 kinds of different paper bags
|
Main Technical Parameters |
|
|
|
|
Max.sheet(L*W) |
1200*600 |
1200*600 |
1200*600 |
|
Min.sheet(L*W) |
620*350 |
620*350 |
620*350 |
|
Sheet weight |
120g-190g |
120g-190g |
120g-190g |
|
Bag width |
220-450mm |
220-450mm |
220-450mm |
|
Bottom width |
80-170mm |
80-170mm |
80-170mm |
|
Bag length |
250-490mm |
250-490mm |
260-540mm |
|
Top turn in width |
40-60mm |
40-60mm |
--------- |
|
Handle patch length |
188.5mm |
188.5mm |
188.5mm |
|
Handle patch width |
30-50mm |
30-50mm |
30-50mm |
|
Handle patch weight |
250g-350g |
140g-200g |
|
|
Handle patch roll diameter |
Ø1000mm |
Ø1000mm |
Ø1000mm |
|
Handle patch roll width |
60-100mm |
60-100mm |
60-100mm |
|
Paper rope diameter |
4-6mm |
--------- |
4-6mm |
|
Handle rope height |
170-195mm |
--------- |
170-195mm |
|
Speed |
40-70 bags/min |
40-70 bags/min |
40-70 bags/min |
|
Total Power |
25kw |
25kw |
25kw |
|
Total Weight |
22T |
22T |
22T |
|
Machine Size |
16450*5300*3100mm |
16450*5300*3100mm |
16450*5300*3100mm |
|
Glue type |
Water soluble cold glue(hot-melt glue) |
||
