Quick Details
-
Brand Name:
-
Graigar
-
Model Number:
-
UV340B
Quick Details
-
Warranty:
-
1
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Graigar
-
Model Number:
-
UV340B

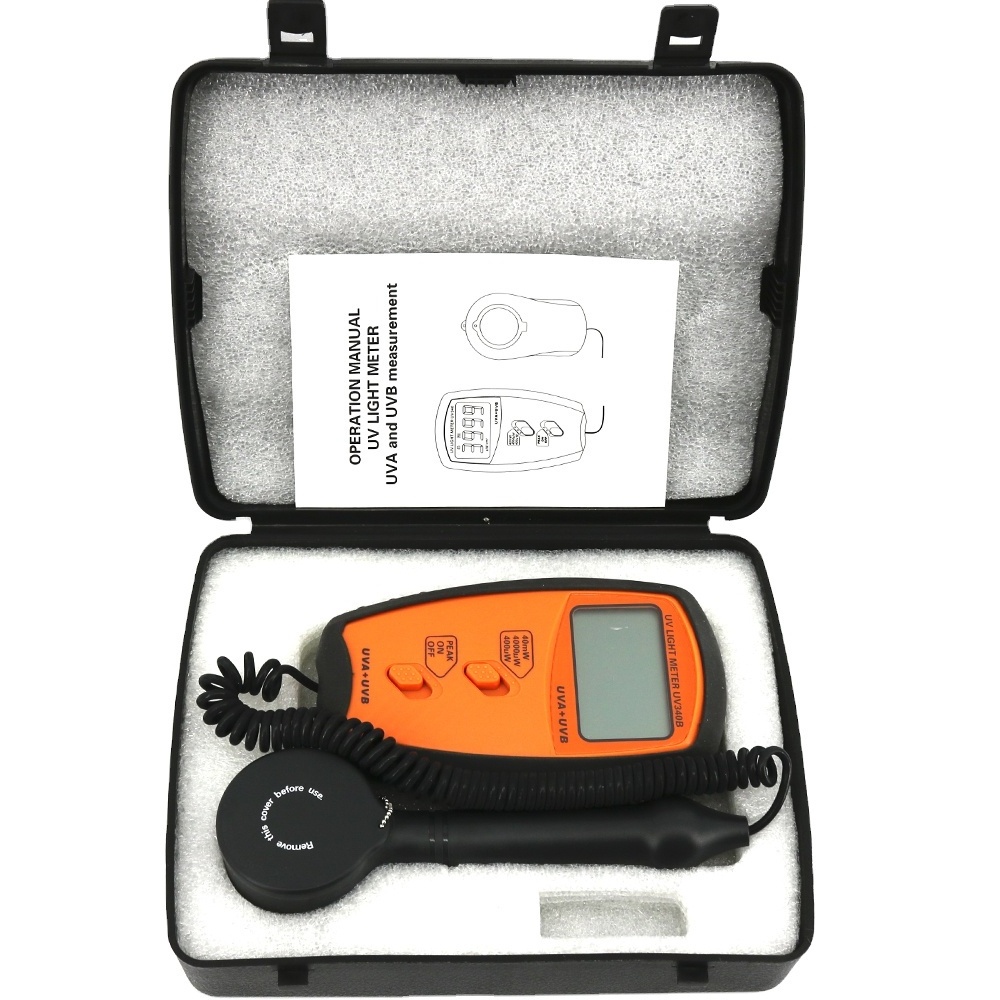

UV340B Portable UV Light Meter UVA & UVB Tester
Features:
*Professional, high quality UV light meter
*Measurable of UVA & UVB.
*UV detector spectrum from 280 nm to 380 nm.
*Three range selection switchable.
*Exclusive UV sensor structure.
*LSI-circuit use provides high reliability and durability
*Separate UV LIGHT sensor allows user to measure the UV light at an optimum position
*LCD display, easy readout.
Specification:
*Display: 3 3/4 LCD display, maximum indication 3999
*Measurement ranges & resolution: 0 - 40 mW/cm2(3 Ranges),
400 uW/cm2 range
4000 uW/cm2 range
40 mW/cm2 range
(1000 uW/cm2 = 1 mW/cm2)
*UV sensor spectrum: Band pass 280 nm - 380 nm
*Accuracy: ±(4%FS + 2dgt) FS: full scale ( Calibration is executed under the UVA light & and compare with the standard UVA light meter; Special tested under the environment RF Field Strength less than 3V/M & frequency less than the 30 MHz only)
*Sensor structure: The exclusive UV photo diode & UV color correction filter.
*Sample Time: Approx. 0.4 sec.
*Over Range indication: indication of ‘OL’
*Operating Temperature & Humidity:
-10C to 40C(32F-104F) 0~70%Rh
*Storage temperature-humidity:
-10C to 50C(14F-140F) 0~80%Rh
*Power Supply: DC 9V battery, 006P, MN 1604 (PP3) or equivalent.
*Power Consumption: Approx. DC 2.7 mA
*Dimension: 106x57x26mm (photo detector)
230x72x30mm (meter body)
Packing:
1 x UV340B unit
1 x User Manual
