- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99.87%
-
Voltage:
-
220v/308v
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Ipanda
-
Dimension(L*W*H):
-
1.2m*0.8m*1.8m
-
Weight:
-
500 KG
-
Product Name:
-
Automatic Oil Filling Machine
-
Bottle Type:
-
PET Plastic Bottle Glass Bottle
-
Capacity:
-
1000-6000BPH
-
Material:
-
SUS304/316L
-
Filling Nozzles:
-
2/4/6/8/10/12(customized)
-
Filling Volume:
-
100-5000ml
-
Air Pressure:
-
0.4-0.6MPa
-
Control:
-
PLC+ Touch Screen
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 6000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Glass, Other
-
Filling Material:
-
Oil
-
Filling Accuracy:
-
99.87%
-
Voltage:
-
220v/308v
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
Ipanda
-
Dimension(L*W*H):
-
1.2m*0.8m*1.8m
-
Weight:
-
500 KG
-
Product Name:
-
Automatic Oil Filling Machine
-
Bottle Type:
-
PET Plastic Bottle Glass Bottle
-
Capacity:
-
1000-6000BPH
-
Material:
-
SUS304/316L
-
Filling Nozzles:
-
2/4/6/8/10/12(customized)
-
Filling Volume:
-
100-5000ml
-
Air Pressure:
-
0.4-0.6MPa
-
Control:
-
PLC+ Touch Screen

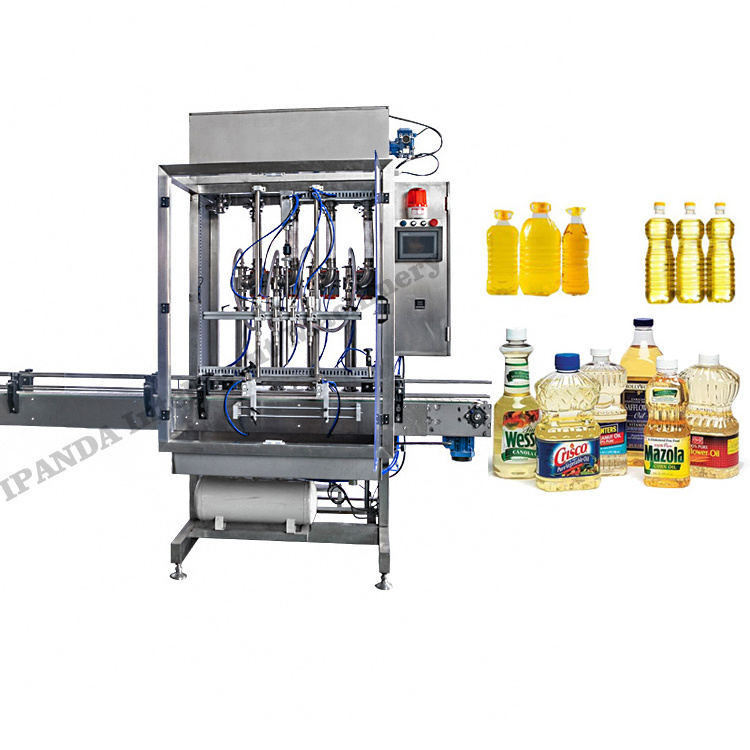

This type of machine can be used for fixed amount small package filling,straight line type filling, metical, electric, apparatus control of all sorts of viscous and no viscous,erosive liquid,
such as edible oil,cooking oil,plant oil
chemical,liquid,daily chemical industry.It is rather simple and rapid to change items,the design is quite distinct,the property is Very advantageous,its appearance corresponds to international concept for mechanical equipment.
Features:
1. Suitable for all kinds of liquid, high precision;
2. PLC control system, frequency conversion adjusting speed, high degree automation;
3. No bottle, no filling, auto count the quantity. And have the anti-drop device;
4. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate;
5. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble;
6.The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.
2. PLC control system, frequency conversion adjusting speed, high degree automation;
3. No bottle, no filling, auto count the quantity. And have the anti-drop device;
4. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate;
5. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble;
6.The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.
PLC Electric Cabinet
This filling machine is a high-tech filling equipment controlled by microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.
HMI Operation Interface
Mitsubishi electronically controlled PLC touch screen
Electric eye
The electric eye uses advanced photo-electricity.
Easy adjust the position and angle,fast and stable.
Adopt SS304 or SUS316 filling heads
Adopt SS304 or SUS316 filling heads,Especially design anti-leak filling head, No bottle no filling.
Piston pump control filling head
Ensure the filling volume accuracy. The height of filling head can be adjusted through the adjust handle, the filling head can suitable different height and volume bottles. Filling volume can adjust according to customer's reuqirments. No bottle no filling.
Product Paramenters
|
No
|
Item
|
Data
|
Material
|
SS304
|
|
1
|
Power
|
1.5KW
|
Single machine noise
|
≤50dB
|
|
2
|
air compressor
|
0.8 M3
|
PLC control system
|
Mitsubishi(Japan)
|
|
3
|
weight
|
500KG
|
driver
|
KINCO
|
|
4
|
filling volume
|
50-2000ml,also can be customized
|
Frequency changers
|
Schneider(France)
|
|
5
|
capacity
|
1000-2000BPH,can be customized
|
Photo electricity
|
Omron(Japan)
|
|
6
|
filling head
|
1-10heads ,according to your speed demand
|
Photoelectric sensor
|
FOTEK(Taiwan)
|
|
8
|
Diametion
|
250*165*170cm
|
Motor
|
WANXIN(Taiwan)
|
Accessory brand
We focus on producing various kinds of filling production line for different products, such as the capsule, liquid, paste,
powder,aerosol, corrosive liquid etc, which are widely used in different industries, including
food/beverage/cosmetics/petrochemicals etc. Our machines are all customized according to customer’s product and request. This series of packaging machine is novel in structure, stable in operation and easy to operate.Welcome new and old customers letter to negotiate orders, the establishment of friendly partners.
powder,aerosol, corrosive liquid etc, which are widely used in different industries, including
food/beverage/cosmetics/petrochemicals etc. Our machines are all customized according to customer’s product and request. This series of packaging machine is novel in structure, stable in operation and easy to operate.Welcome new and old customers letter to negotiate orders, the establishment of friendly partners.
You can see the VR SHOWROOM
