Quick Details
-
Capacity:
-
800kg
-
Material:
-
Mild Steel Q235
-
Loaded in 1x40HQ:
-
228 sets
-
Dimension of Grid:
-
51x118 mm
-
Ext. Dim.:
-
1200x920x1018 mm
-
Stacking:
-
Stackable 4 High
-
Wine storage:
-
Load 400 Bordeaux bottles
-
Finish:
-
Zinc plated/Hot dip galvanized
-
Available accessories:
-
Top lid, divider, and castors, etc
-
Feature:
-
Collapsible Stackable Foldable
-
Usage:
-
Wine Bottle Warehouse Storage
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
HM Group
-
Model Number:
-
HM-WEU005
-
Capacity:
-
800kg
-
Material:
-
Mild Steel Q235
-
Loaded in 1x40HQ:
-
228 sets
-
Dimension of Grid:
-
51x118 mm
-
Ext. Dim.:
-
1200x920x1018 mm
-
Stacking:
-
Stackable 4 High
-
Wine storage:
-
Load 400 Bordeaux bottles
-
Finish:
-
Zinc plated/Hot dip galvanized
-
Available accessories:
-
Top lid, divider, and castors, etc
-
Feature:
-
Collapsible Stackable Foldable
-
Usage:
-
Wine Bottle Warehouse Storage

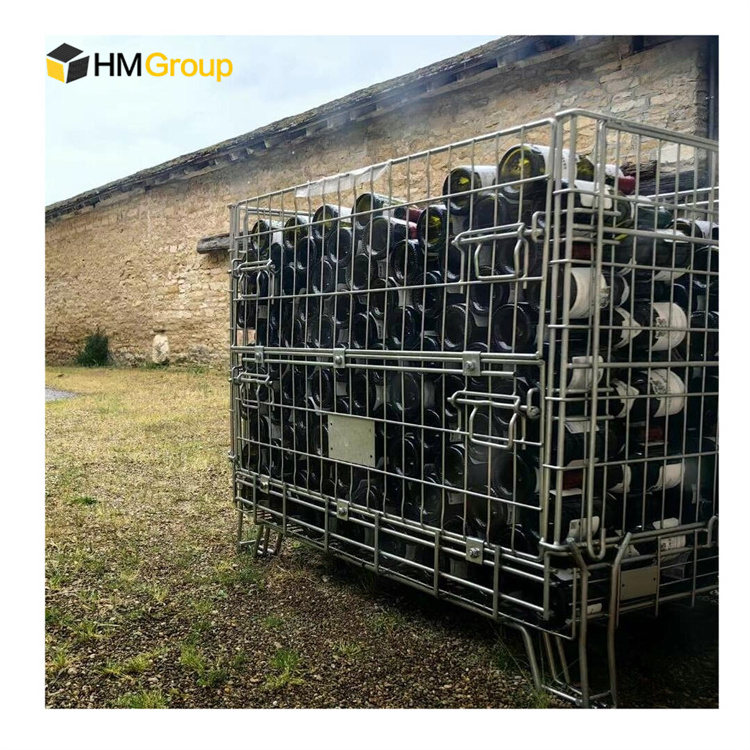

HM Euro style stacking foldable storage metal wire crate for wine bottles
Wire crate for wine bottles hold wine bottles safely during the all important aging process.
| Model No. | Exterior dimension | Wire Guage | Dimension of Grid | Loading capacity | Loaded in 1x 40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| HM-WEU001 | 1140x830x980 | 12-5.0 | 55x113 | 800 | 332 |
| HM-WEU005 | 1200x920x1018 | 12-5.0 | 51x118 | 800 | 228 |
| HM-WEU010 | 1183x948x991 | 11-5.0 | 62x115/60x120 | 800 | 253 |
| HM-WEU016 | 1244x802x1054 | 12-5.0 | 54x118 | 800 | 168 |
| Material | Mild steel Q235 | ||||
| Available design | Top lid/forklift guide/wheels | ||||
| Finish |
Zinc/hot dip galvanized |
||||
| Wine storage |
WEU001 and WEU010- Load 500 bottles, type " Bourgogne ", WEU005: Load 400 bottles, type " Bordeaux ", WEU016 -Load 500 (horizontal) bottles, 339 (inverted) bottles Type" champagne" |
||||
| Features |
1. The ideal logistics products, combine strength, flexibility and maneuverability.
2. Folded, allows it to be widely used in logistics 3. One side, half-open gate 4. Long-lasting,economical alternative to disposable packing |
||||
There are different kinds of Wire crate for wine bottles in these categories that offer a wide range of flexible features.
