Quick Details
-
Model Number:
-
TLFS
-
Power:
-
0.47kw
-
Material:
-
packed in wooden boxes, refractory material+Carbon Steel
-
Weight (KG):
-
3500 kg
-
Name:
-
High capacity smokeless solid waste incinerator
-
Model:
-
TLFS-10-TLFS-500
-
Capacity:
-
20-1000kgs/batch
-
Fuel:
-
Diesel Oil/ LPG/natural gas
-
Application:
-
hospital/ clinic/industry
-
Service life:
-
10-20 Years
-
Feature:
-
High Work Efficiency
-
Certification:
-
ISO9001 ISO14001OHSAAS18001
-
Color:
-
slivery/black/white/customized by clients
Quick Details
-
Production Capacity:
-
500L/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TIANLANG
-
Model Number:
-
TLFS
-
Power:
-
0.47kw
-
Material:
-
packed in wooden boxes, refractory material+Carbon Steel
-
Weight (KG):
-
3500 kg
-
Name:
-
High capacity smokeless solid waste incinerator
-
Model:
-
TLFS-10-TLFS-500
-
Capacity:
-
20-1000kgs/batch
-
Fuel:
-
Diesel Oil/ LPG/natural gas
-
Application:
-
hospital/ clinic/industry
-
Service life:
-
10-20 Years
-
Feature:
-
High Work Efficiency
-
Certification:
-
ISO9001 ISO14001OHSAAS18001
-
Color:
-
slivery/black/white/customized by clients
Product Description

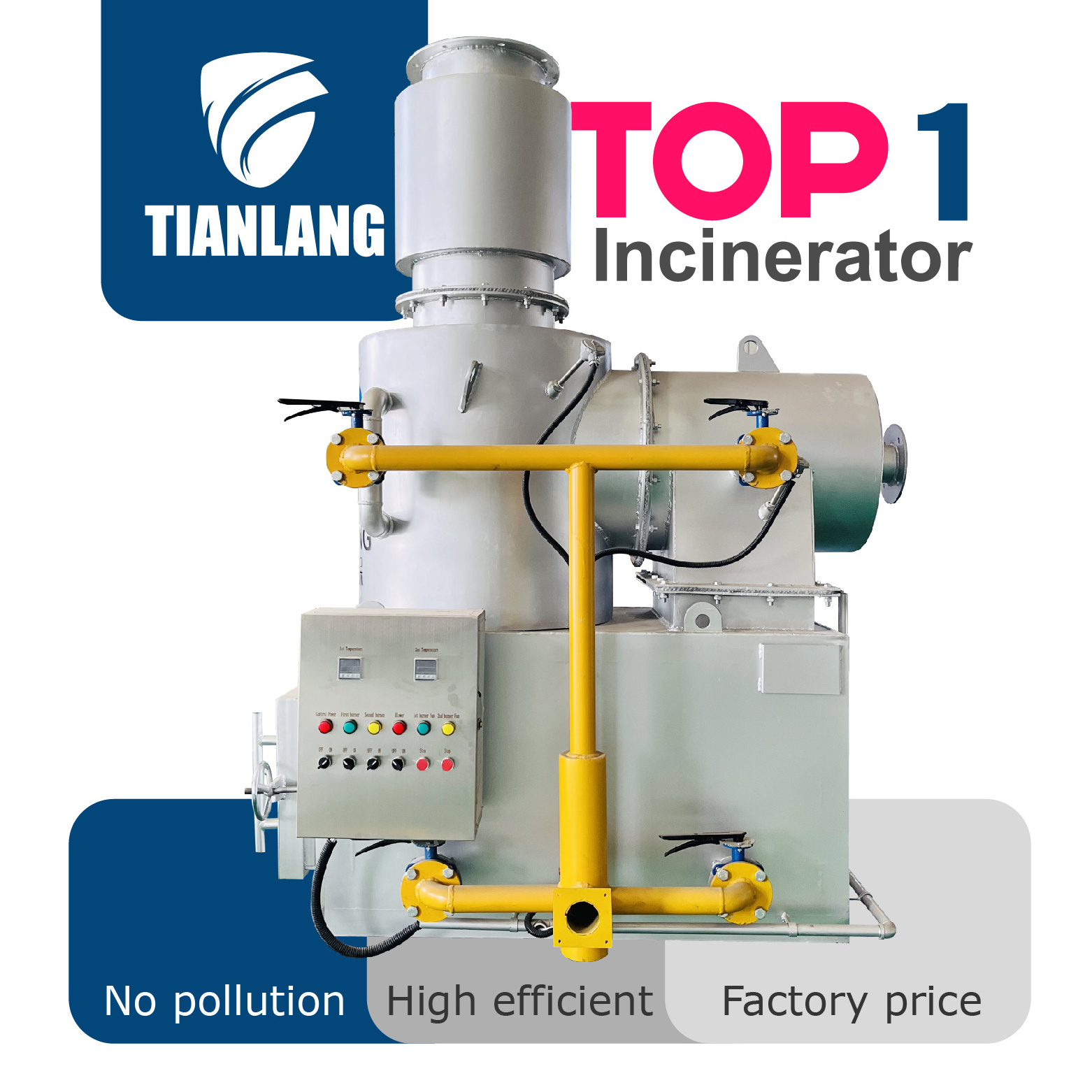

High capacity smokeless solid waste incinerator
is a kind of machine that was developed on the basis of Japanese technology, absorbs advantages of similar.
equipment both at home and abroad. It features unique and advanced merits with compact size, high burning effect, reasonable. here will be no smoke , no smell , no pollution after waste be burning.
burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas .
equipment both at home and abroad. It features unique and advanced merits with compact size, high burning effect, reasonable. here will be no smoke , no smell , no pollution after waste be burning.
burning technology, high degree of non-harm etc. It is an ideal choice for waste treatment of hospitals, hotels and various areas .
Details of the incinerator
Product advantages
1.It's
easier to operate
than other manufactures' incinerators. There is an automatic air blower inside of burner.It's for
protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost .The first burner of first combustion more longer than general burner,it's specially made of save fuel.
3. Environment friendly ,Dual chamber design,there is no smoke,no smell,no pollution after waste burning.
4.The highest temperature can reach 1100-1300 degrees Celsius,which can achieve the effect of sterilization and disinfection.
5 .Long service time .Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6.Be portable and cover a small area .
protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost .The first burner of first combustion more longer than general burner,it's specially made of save fuel.
3. Environment friendly ,Dual chamber design,there is no smoke,no smell,no pollution after waste burning.
4.The highest temperature can reach 1100-1300 degrees Celsius,which can achieve the effect of sterilization and disinfection.
5 .Long service time .Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6.Be portable and cover a small area .
Model parameter
|
Name/Model
|
TLFS-30
|
TLFS-50
|
TLFS-100
|
TLFS-200
|
TLFS-300
|
TLFS-500
|
|
Capacity
|
30kg/batch
|
50kg/batch
|
100kg/batch
|
200kg/batch
|
300kg/batch
|
500kg/batch
|
|
Size(L*W*H)mm
|
1770*1170*2600
|
2070*1370*2900
|
2170*1520*3100
|
2370*1670*3800
|
2670*1770*4000
|
3370*2280*
4800
|
|
Waste inlet(mm)
|
470*605
|
670*755
|
820*735
|
970*885
|
1070*985
|
1340*1285
|
|
Chimney(mm)
|
Height: 6m,
diameter 220
|
Height: 6m,
diameter 280
|
Height: 6m, diameter 280
|
Height: 6m,
diameter 325
|
Height: 6m,
diameter 380
|
Height: 6m,
diameter
425
|
|
Air blower
|
0.33kw
|
0.33kw
|
0.55kw
|
0.55kw
|
0.75kw
|
1.5kw
|
|
1st combustion burner
|
0.11kw
|
0.11kw
|
0.18kw
|
0.18kw
|
0.18kw
|
0.25kw
|
|
2nd burner
|
0.11kw
|
0.11kw
|
0.25kw
|
0.25kw
|
0.25kw
|
0.25kw
|
|
Voltage
|
380v/220v
|
380v/220v
|
380v/220v
|
380v/220v
|
380v/220v
|
380v/220v
|
|
Weight(kg)
|
3500
|
5500
|
8000
|
11000
|
16000
|
20000
|
TLFS-30
TLFS-50
