Quick Details
-
Voltage:
-
Customized, Customized
-
Power:
-
7.5-15-48kw
-
Dimension(L*W*H):
-
as item
-
Product name:
-
Foundry Sand Mixer
-
Application:
-
Foundry Industry
-
Feature:
-
High Efficency
-
Technology:
-
Automatic Mold Adjustment
-
Molding machine:
-
Sand Molding Line
-
Function:
-
Clay Sand Mixer
-
Control system:
-
Electronic Control System
-
Weight:
-
as item
-
Certification:
-
CE,ISO,BV,
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
sand mixer muller
-
Brand Name:
-
BINHAI
-
Voltage:
-
Customized, Customized
-
Power:
-
7.5-15-48kw
-
Dimension(L*W*H):
-
as item
-
Product name:
-
Foundry Sand Mixer
-
Application:
-
Foundry Industry
-
Feature:
-
High Efficency
-
Technology:
-
Automatic Mold Adjustment
-
Molding machine:
-
Sand Molding Line
-
Function:
-
Clay Sand Mixer
-
Control system:
-
Electronic Control System
-
Weight:
-
as item
-
Certification:
-
CE,ISO,BV,

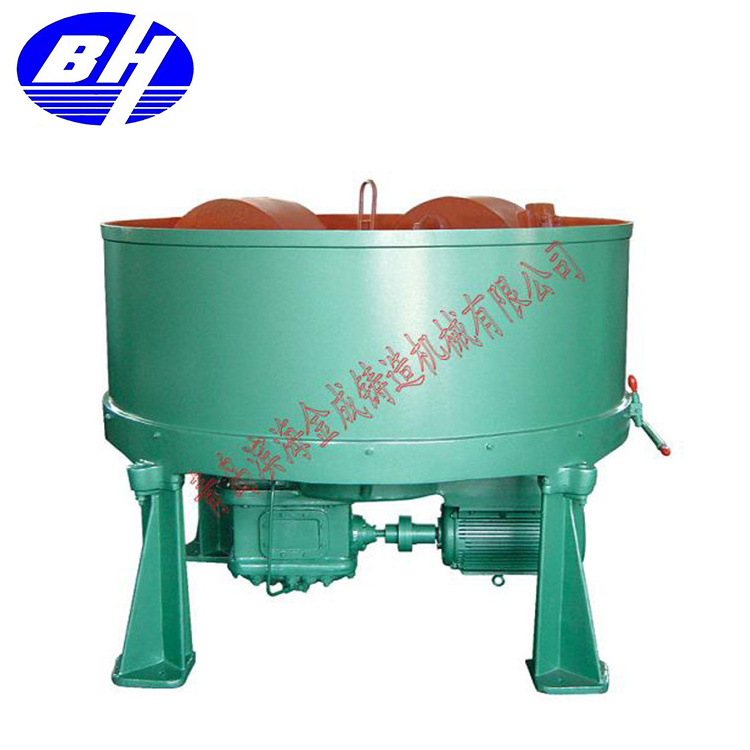

S13 Series ROTOR TYPE SAND MIXER
It have scrapers and two high-speed rotors with a blade were installated in the machine's chassis. Chassis rotates as clockwise, rotor and scraper rotate as counterclockwise. Rotor speed is higher than the speed of the chassis. Because chassis and rotor has an opposite movement, and the speed is different, so the sand of the chassis obtain different speed difference. Sand grains produce corresponding friction force and shear force, which causes the grinding, mixing, broken. This kind of machine not only mix with high efficiency, and the sand after mixing is good quality.
Uses
Mainly used for casting workshop sand mixed, either mixed single machine molding sand can be mixed dry film sand, hard sand, the sand surface and core sand, glass, ceramics, refractories, etc. Can also be usedindustry mixed a variety of powder, granular materials.
Technical parameters :
|
Item |
Disk dia |
Sand mix capacity |
Feed capacity |
power |
|
Unit |
mm |
t/h |
kg |
kw |
|
S1312 |
1250 |
3-5 |
180 |
7.5 |
|
S1315 |
1500 |
8-10 |
350 |
15 |
|
S1320 |
2000 |
20 |
800 |
48 |
Qingdao Binhai Jincheng Foundry Machinery Co.,Ltd
have more than 30 year experience in foundry machine industry. We have 10 skillfull technical engineers and more than 100 experienced workers. Our products occupy 30% of China local market with good reputation.
Our company focus on design, research, develop and produce shot blasting machines,sand blasting rooms, sand processing equipments, environmental protection equipment, etc. Regarding of shot blasting machines, we have roller conveyor type, overhead chain type, hook type, tumble belt type, wire mesh type, road surface type, and some special big shot blasting equipment for cleaning the wire roll coil and stainless steel roll. All machines are professionally designed by our highly-experienced engineers with Auto CAD & Solidworks. OEM & ODM service is available .
