Quick Details
-
Brand Name:
-
AV
-
Model Number:
-
AV-wire drawing pulley
-
Item Name:
-
wire rope pulley
-
application:
-
Drawing.Extruding,Enamelling .Stranding Machine,etc
-
Surface roughness:
-
Ra 0.4
-
Tolerance:
-
+/-0.01mm
-
Advantage:
-
10 years structural ceramics experience
-
Custom-size:
-
Accept (As the Customer Drawing)
-
Drawing Format:
-
JPG,PDF,dwg,stp,etc
-
Standard::
-
DIN,ANSI,BS,etc
-
Surface Finish:
-
Ceramic Coated
-
Sample:
-
Supply
Quick Details
-
Type:
-
V-BELT
-
Material:
-
Aluminum
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AV
-
Model Number:
-
AV-wire drawing pulley
-
Item Name:
-
wire rope pulley
-
application:
-
Drawing.Extruding,Enamelling .Stranding Machine,etc
-
Surface roughness:
-
Ra 0.4
-
Tolerance:
-
+/-0.01mm
-
Advantage:
-
10 years structural ceramics experience
-
Custom-size:
-
Accept (As the Customer Drawing)
-
Drawing Format:
-
JPG,PDF,dwg,stp,etc
-
Standard::
-
DIN,ANSI,BS,etc
-
Surface Finish:
-
Ceramic Coated
-
Sample:
-
Supply

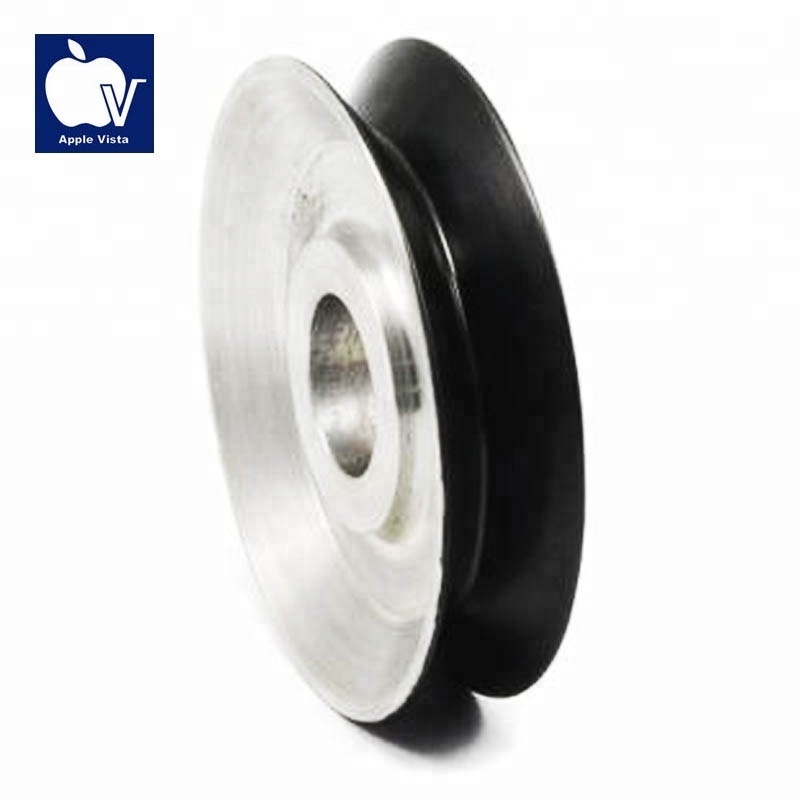

Customized steel wire rope pulley ,pulley wheel ,guide sheave
--------------------------------------------------------------------------------------------------------------------------
wire drawing pulley(Ceramic coating)
1.HRC65
2.Thicknes:5-50mm
3.Suface roughness Ra0.3
4.Life more than 3Y
5. Material: tungsten carbide powder .
Thickness of Coating: 1mm single side after grinding.
Craft :Oxy-acetylene flame spraying
Hardness of coating : Hv 1300 (HRC65 ° above )
Surface porosity :< 1%
Surface bonding strength : > 89-90 Mpa
Surface roughness : 0.6
|
Material base/ bone: |
Aluminum |
|
Surface Finish |
Chrome oxide Coated (Ceramic coated) |
|
Surface roughness |
Ra 0.4 |
|
Thickness of Coating: |
0.4mm single side after grinding. |
|
Hardness of Coating: |
Hv 1300 (HRC 65° above ) |
|
Surface porosity |
< 1% |
|
Surface bonding strength |
> 89-90 Mpa |
|
Craft: |
flame spraying gun |
|
Coating feature: |
Excellent wear resistance fit for making cooper wire, stainless wire with Φ0.02 — 0.05 |
|
Equippment |
Supersonic equipment(HVOF),flame powder spray equipment |
|
Drawing |
Customs provide technical drawing |
|
Certification |
ISO9001 |
|
Sample Lead time |
From 3 days to 5 days upon receipt of sample charge |
|
Delivery Lead time |
7-15 days after full deposit received |
|
Manufaturer |
Yes |
|
Origin Place |
Made in china |
|
Customizable |
Yes (all measure material as customer requipment) |
1.Supetsonic equipmetn(HVOF),flame powdet spray equipment
2.Typical coat(Tungsten carbide ):CO-WC coat,self-fusion alloy+(30-50)%WC coat
The Spray Materials
There are three popular spray materials, which we offer :
Material Vickers Hardness Color
|
|
|
|
|
|
Alumina |
|
750 - 1,000 |
White |
|
Chromium Oxide |
|
1,000 - 1,800 |
Black |
|
Tungsten Carbide Cobalt |
|
750 - 1,450 |
Black |
