Quick Details
-
Suitable Foam Type:
-
AFFF
-
Installation:
-
Vertical
-
Proportioning mixing:
-
3%~6%
-
Strength test pressure:
-
1.5MPa
-
Working pressure:
-
0.6~1.2MPa
-
Flow Range:
-
4~32L/s
-
Tank Volume:
-
500~10000L
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SANJING/ OEM
-
Model Number:
-
SJ-ZPS32
-
Suitable Foam Type:
-
AFFF
-
Installation:
-
Vertical
-
Proportioning mixing:
-
3%~6%
-
Strength test pressure:
-
1.5MPa
-
Working pressure:
-
0.6~1.2MPa
-
Flow Range:
-
4~32L/s
-
Tank Volume:
-
500~10000L

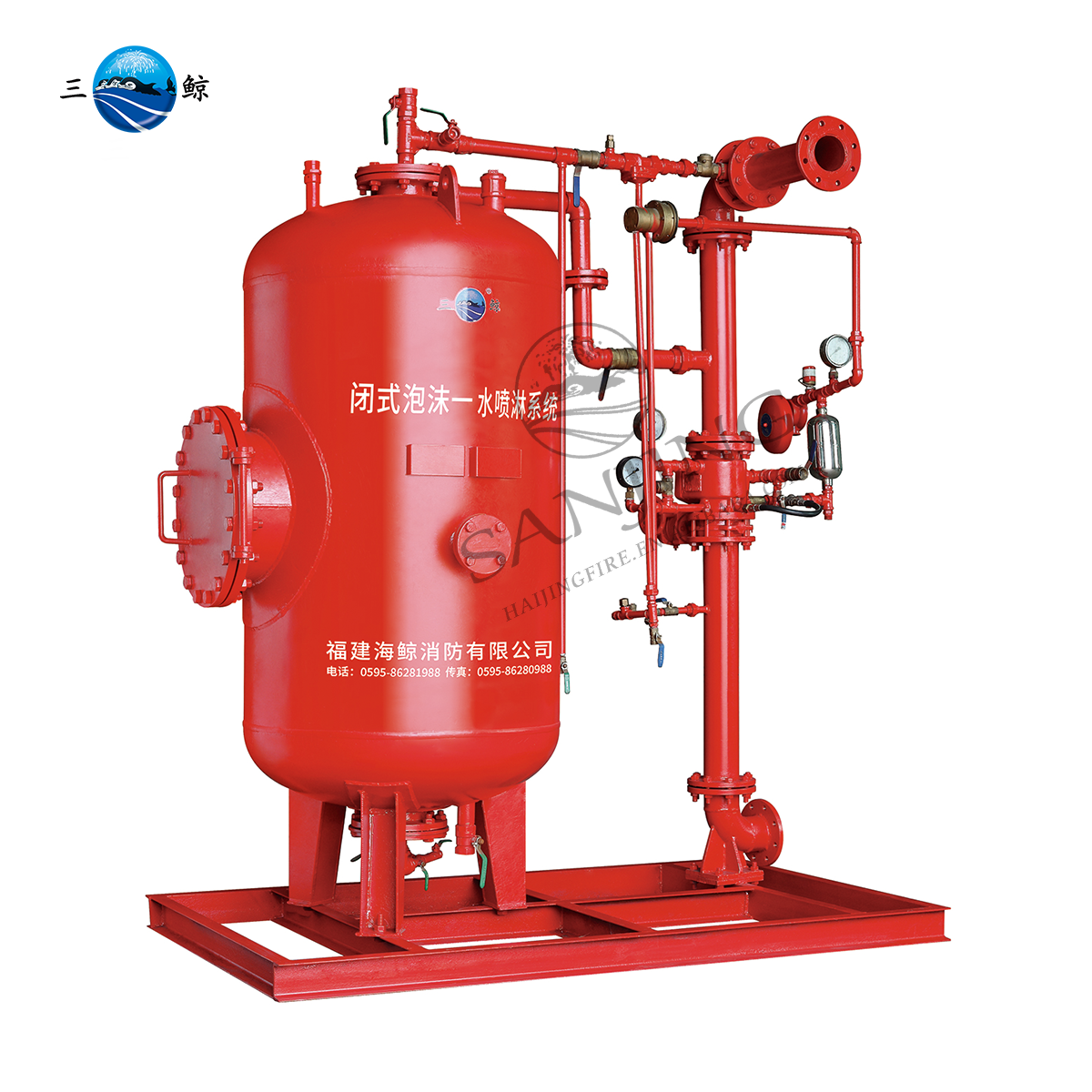

Automatic Fire Sprinkler System(Foam-Water Type) can realize linkage pressure drain valve and foam liquid control valve when the alarm check valve is actuated so that the pressure water and the foam liquid are mixed according to a designed proportion by the foam proportional mixer, and the spray nozzle sprays the foam mixture.
To achieve initial fire extinguishing.
The system is widely used in underground parking lots , air craft maintenance garages, garages, oil pump rooms, and petrochemical processes.
|
Model |
Tank Volume ( m³ ) |
Flow Range (L/S) |
Sealing Test Pressure (MPa) |
Strength Test Pressure (MPa) |
Working Pressure (MPa) |
Pressure Loss |
Mixing Ratio |
Suitable Foam Type |
|
ZPS32 |
0.5~10 |
4~32 |
1.32 |
1.5 |
0.6~1.2 |
≤0.2 |
3% or 6% |
AFFF |
Lead Time:
|
Quantity (Units) |
1-100 |
>100 |
|
Est. Time (days) |
10 |
To be negotiated |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
*In the procurement, installation, use and maintenance process for technical service
* Engineers available to service machinery overseas.
