Quick Details
-
Voltage:
-
380V50Hz
-
Dimension(L*W*H):
-
1060*750*1700
-
Weight (KG):
-
700
-
Product name:
-

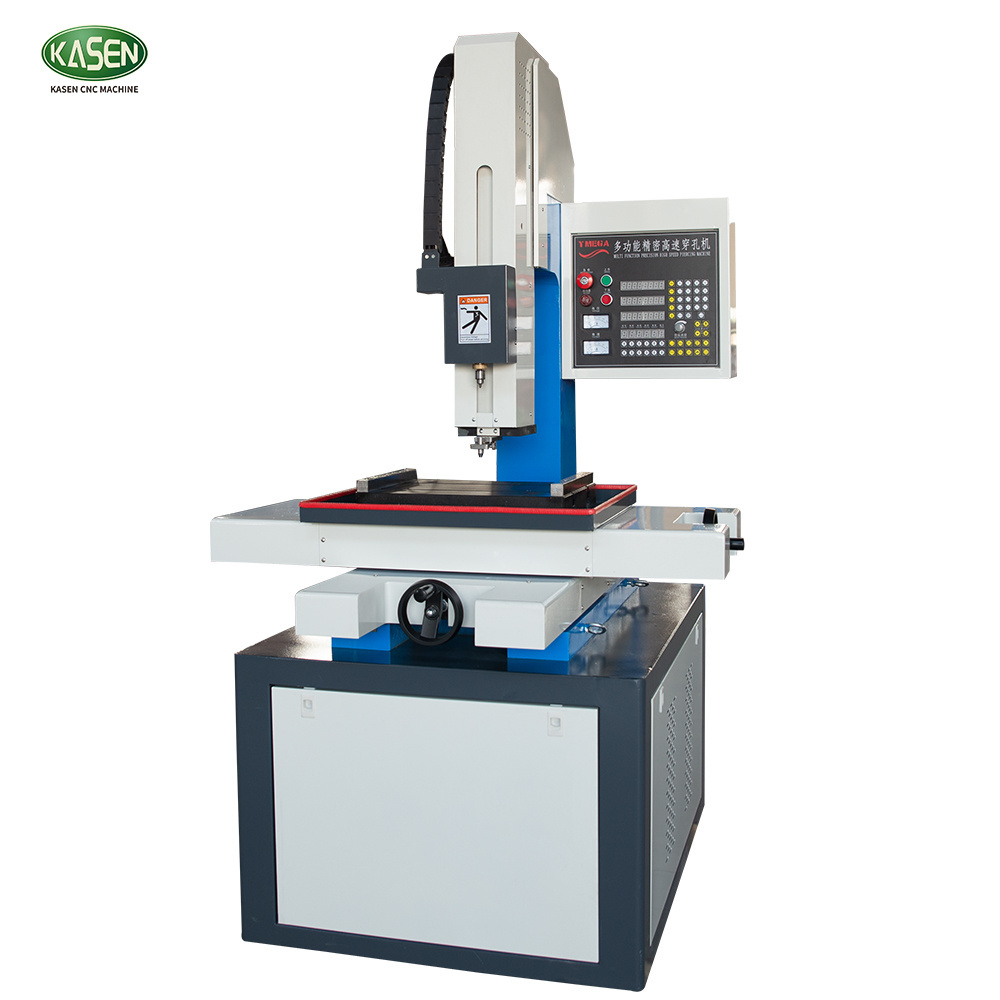

edm hole drilling machine DD703 small hole edm drilling machines
-
Key word:
-
small hole edm drilling machines
-
Precision:
-
0.02mm
-
X-Y trip:
-
300*400mm
-
Spindle servo stroke::
-
300mm
-
Spindle head stroke::
-
200mm
-
Spindle head speed::
-
20-120rpm
-
Guide and table distance::
-
300mm
-
Clamping electrode diameter::
-
0.3-3mm
-
Working desk size:
-
260*380mm
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kasen
-
Voltage:
-
380V50Hz
-
Dimension(L*W*H):
-
1060*750*1700
-
Weight (KG):
-
700
-
Product name:
-
edm hole drilling machine DD703 small hole edm drilling machines
-
Key word:
-
small hole edm drilling machines
-
Precision:
-
0.02mm
-
X-Y trip:
-
300*400mm
-
Spindle servo stroke::
-
300mm
-
Spindle head stroke::
-
200mm
-
Spindle head speed::
-
20-120rpm
-
Guide and table distance::
-
300mm
-
Clamping electrode diameter::
-
0.3-3mm
-
Working desk size:
-
260*380mm
|
Machine model
|
DD703.30
|
DD703.50
|
|
working desk size
|
260*380mm
|
700*1000mm
|
|
X-Y trip
|
300*400mm
|
500*630mm
|
|
Spindle servo stroke
|
300mm
|
600mm
|
|
Spindle head stroke
|
200mm
|
500mm
|
|
Spindle head speed
|
20-120rpm
|
20-120rpm
|
|
Clamping electrode diameter
|
0.3-3mm
|
0.3-3mm
|
|
Maximum distance between the guide and the table
|
300mm
|
500mm
|
|
input power
|
3kw
|
3kw
|
|
Mainframe dimensions
|
1060*750*1700
|
1950*1500*1600
|
