90x35mm Recessed LED linear light PC diffuser recessed LED ceiling linear batten light for hotel, office , stores

90x35mm Recessed LED linear light PC diffuser recessed LED ceiling linear batten light for hotel, office , stores

FOB Reference Price: Get Latest Price

≥1 Pieces

US $21

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel

Color Temperature(CCT):: 3000-6000K

Product Weight（kg）:: 2.8

Type:: Minimalist

Model Number:: ON-9035-1.2M

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Beam Angle(°):: 120

IP Rating:: IP20

Dimension:: L1215xW90xH35mm

Product name:: Ceiling recessed led profile light

Other length options:: 0.6m, 1.2m, 1.8m, 2.4m

Lamp profile size:: W90xH35mm

Ceiling opening size:: L1200xW75xH60mm

Power factor:: >0.95

Mounting:: Ceiling recessed

Control way:: switch on/off, 0-10V dimmable, Dali dimmable

Lumen efficacy:: 100lm/w

CCT:: 3000K /4000K /6000K

Apply:: Hotel, office, commercial building

Quick Details

Lamp Luminous Efficiency(lm/w):: 100

Warranty(Year):: 5-Year

Lamp Body Material:: Aluminum housing

Application:: Hotel

Color Temperature(CCT):: 3000-6000K

Product Weight（kg）:: 2.8

Type:: Minimalist

Model Number:: ON-9035-1.2M

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

Beam Angle(°):: 120

IP Rating:: IP20

Dimension:: L1215xW90xH35mm

Product name:: Ceiling recessed led profile light

Other length options:: 0.6m, 1.2m, 1.8m, 2.4m

Lamp profile size:: W90xH35mm

Ceiling opening size:: L1200xW75xH60mm

Power factor:: >0.95

Mounting:: Ceiling recessed

Control way:: switch on/off, 0-10V dimmable, Dali dimmable

Lumen efficacy:: 100lm/w

CCT:: 3000K /4000K /6000K

Apply:: Hotel, office, commercial building

Product Description

Recessed LED linear light, of profile size W90xH35mm, its lighting width is 75mm.

There are 4 standard lengths to choose, they are 0.6meter, 1.2meter, 1.8meter, 2.4meter.(Equal to 2ft, 4ft, 6ft, 8ft)

And the lamps is connectable(Linkable), it is allowed to connect long straight light such as 3m, 6m, 12m, 20m, 30m, etc.

LED PCB board

Our lamp is using LED PCB board as light source, its heat dissipation is much better. S uperior quality of PC extrusion cover makes sure it is not yellowing after long time use.

PC cover is stuck inside the housing fixture.

Metal Spring mounted buckle

Metal Spring mounted buckle is fixed on the top of aluminum housing, it is much powerful to support the lamp.

For better packing and transport, mounting buckle is not installed on lamp, client need to screw it on spot.

Detailed Images

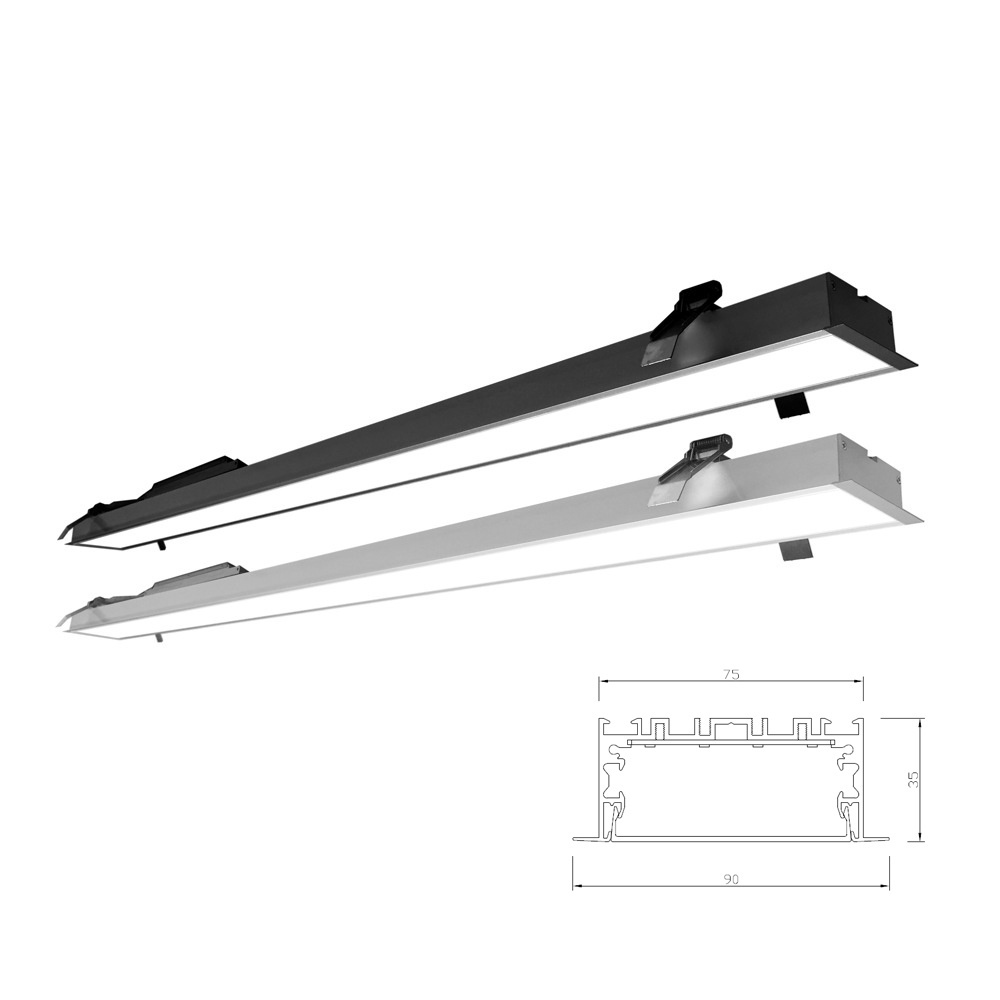

The lamp profile size is 90mm x 35mm.

Real lighting width is 75mm.

Product Advantage:

Power driver is exterior, fixed on the top of aluminum housing, it is easy to maintain.

Branded power driver is working stably and flicker-free. When taking photos or video in the room, there is no screen flickering on mobile.

Aluminum extrusion profile is 2mm thick.

Product Paramenters

Item Number	Dimension(mm)	Opening size(mm)	Power	Other spec
ON-9035-0.6M	L620W90H35	L605W75H60	20W	100lm/w, CRI>83, PF>0.95, LED PCB board, FLICKER-FREE
ON-9035-1.2M	L1215W90H35	L1200W75H60	40W
ON-9035-1.8M	L1810W90H35	L1795W75H60	60W
ON-9035-2.4M	L2405W90H35	L2390W75H60	80W

Installation Instructions

Recessed Installation

Open the spring buckle and insert the lamp into the ceiling opening, mounting completed.

Product Application

Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, furniture store, other indoor places, etc.
