Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine
Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine

Lab Rapid Warming Two Roll Mill Laboratory Rubber Calender Mixer Rolling Mill Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $5000
≥5 Sets
US $4500
≥50 Sets
US $3500
≥200 Sets
US $3000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
1*1.1*1.4M
Year:
New Product
Power (kW):
4.5KW
Weight (KG):
480 kg
Product name:
Lab Rapid Warming Two Roll Rubber Calender
Roller Diameter:
120,160,200,250mm(Customizable)
Roller face width:
320mm(Customizable)
Mixing capacity:
0.3~3kg(Customizable)
Roller gap:
0.1~8mm(adjustable)
Heating method:
electrical heating(Water-cooled optional)
Roller temperature:
RT~300℃
Roller hardness:
50~60HRC
Keyword:
rubber plastic two roll mill
Marketing Type:
Roller can be customized

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
RIGHT
Voltage:
220/380V
Dimension(L*W*H):
1*1.1*1.4M
Year:
New Product
Power (kW):
4.5KW
Weight (KG):
480 kg
Product name:
Lab Rapid Warming Two Roll Rubber Calender
Roller Diameter:
120,160,200,250mm(Customizable)
Roller face width:
320mm(Customizable)
Mixing capacity:
0.3~3kg(Customizable)
Roller gap:
0.1~8mm(adjustable)
Heating method:
electrical heating(Water-cooled optional)
Roller temperature:
RT~300℃
Roller hardness:
50~60HRC
Keyword:
rubber plastic two roll mill
Marketing Type:
Roller can be customized
Product Description

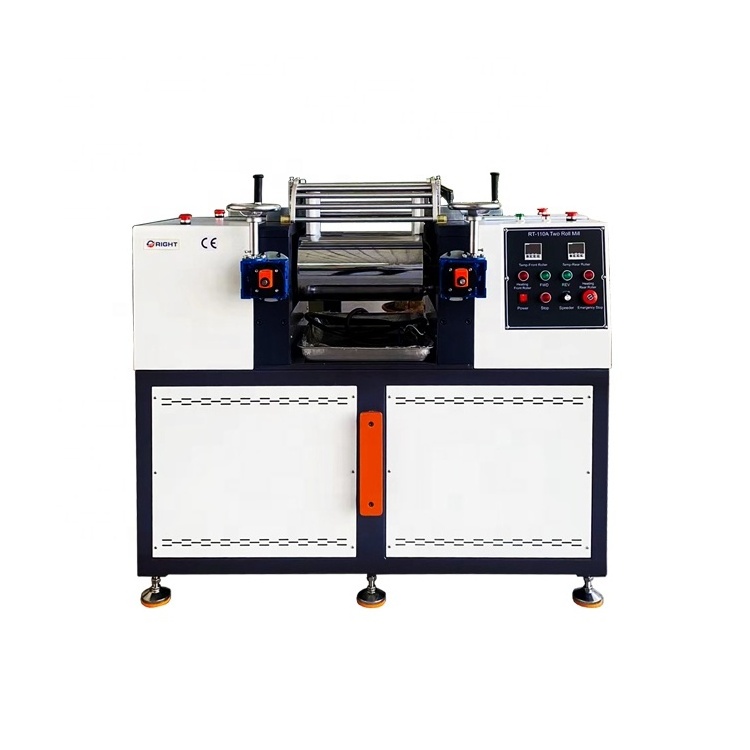

RT-110A Water Cold Rubber And Plastic Two Roll Mill



Equipment summary:


RT-110A Water Cooled Rubber Mixer Machine Two Roller Plasticr Mixing Mill is suitable for Rubber and plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.


Specification
Model Project
RT-110A-1
RT-110A-2
RT-110A-3
RT-110A-4
Roller Diameter (metric /inch)
120mm/4in
160mm/6in
200mm/8in
250mm/10in
Roller face width
320mm
320mm
320mm
320mm
Mixing capacity
0.3~2kg
0.5~3kg
1~10kg
2~15kg
Roller temperature
RT~300℃
RT~300℃
RT~300℃
RT~300℃
Temp Accuracy
±3℃
±3℃
±3℃
±3℃
Heating method
electrical heating
electrical heating
electrical heating
electrical heating
Cooling method
Water-cooled cooling
Water-cooled cooling
Water-cooled cooling
Water-cooled cooling
temperature controller
PID control
PID control
PID control
PID control
Roller Rev
frequency control
frequency control
frequency control
frequency control
Roller ratio
adjusted according requirements
1:1.22/1:1.35
1:1.4
1:1.22/1:1.35
1:1.4
1:1.1/1:1.22
1:1.4/1:1.7
1:1.1/1:1.22
1:1.4/1:1.7
Roller hardness
50~60HRC
50~60HRC
50~60HRC
50~60HRC
Roller processing
Mirror polishing chrome plated
Mirror polishing chrome plated
Mirror polishing chrome plated
Mirror polishing chrome plated
Roller spacing
0.1~8mm adjustable
0.1~8mm adjustable
0.1~8mm adjustable
0.1~10mm adjustable
Spacing display mode
Calibration/digital display
Calibration/digital display
Calibration/digital display
Calibration/digital display
Safety device
Collision type emergency stop
Collision type emergency stop
Collision type emergency stop
Collision type emergency stop
Safety device number
7 PCS
7 PCS
7 PCS
7 PCS
Special function
Emergency stop inversion
Emergency stop inversion
Emergency stop inversion
Emergency stop inversion
Motor power
4.5KW
5.5KW
7.5KW
15KW
Power voltage
φ3 AC380V
φ3 AC380V
φ3 AC380V
φ3 AC380V
Dimension
1*1.1*1.4(M)
1*1.1*1.5(M)
1.5*1.2*1.5(M)
1.5*1.3*1.6(M)
Weight
2.0T
2.5T
3.4T
4.0T

Reference standard:
GB 6038-2006 Rubber ingredients of rubber testing, mixing and Vulcanization equipment and operating procedures. GBT 13577-1992 Mill for rubber and plastics HGT 2149-2004 Open rubber mixing machine, plastic mixing mill test methods JBT 53113-1999 Open plastic mixing mill product quality grading
Our Advantages



Features:

1. The core technology from Taiwan, The main parts adopt the French schneider.
2. The whole floor,easy installation, driving mode is uniaxial output ensure the torsion big,Imported bearings reduce rubbing force to ensure save electricity, low noise and rubber thickness uniform parallel controllable. 3. Roll adopts the vanadium titanium alloy chilled cast iron,roll hardness(HRC)50-60,surface is hard wear-resisting, durable. Roller lumen finish machining to ensure that the roller body cooling quickly and evenly.
4. The machine adopts manual adjustment mode, Thickness control precision,easy operation,High safety factor .
5. The machine is equipped with an emergency brake, When emergency accidents,four corners have emergency switch, a number of brake system, convenient quick stop machine.
6. Transmission device adopts hardened reducer,compact structure,transmission efficiency,little noise.
7. Automatic oiling device to ensure that long-term oil for driving part,Make up the pump forget supply damage to part of serious consequences. 8. Two motor driven,arbitrary roller speed ratio before and after implementation,easy to operation; 9. Integral plate,easy installation.Driving mode is uniaxial output to ensure the big torque,imported bearings to reduce friction to save electricity, reduce noise, and Rubber thickness uniform parallel controllable. 10. Transmission device adopts double double frequency converter control,Low noise, long service life.


A variety of styles are optional, roll size can be customized to meet the different needs of customers.

RT-110B

electric heating
+water cooled
+touch screen type
two roll mill

RT-110C

electric heating
+touch screen type
two roll mill

RT-110

electric heating
+water cooled
+button press type
two roll mill

RT-110D

lab small two roll mill

RT-110A

electric heating
button press type
two roll mill

RT-110E

silicone clod two roll mill
Recommend Products
Packing & Delivery
Shippment:
-By sea
-By plane
-By couriers, TNT, DHL, FEDEX, UPS, etc.

Standard Export carton:
1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.
Company Profie
FAQ
Q1: How long is the delivery time?
A:Normally 5-10 working days after received deposit,we have our own factory,the delivery time can be adjust flexible.

Q2: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q3: What is the payment terms?
A: T/T, L/C, Western Union, etc

Q4: How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc

Q5: Is it OK to print my logo on machine product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
or 100% L/C at sight .

Q7: Can we test sample before place order?
A: Of course,we can test sample and provide test report to you with free.
