Quick Details
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Q CELLS
-
Model Number:
-

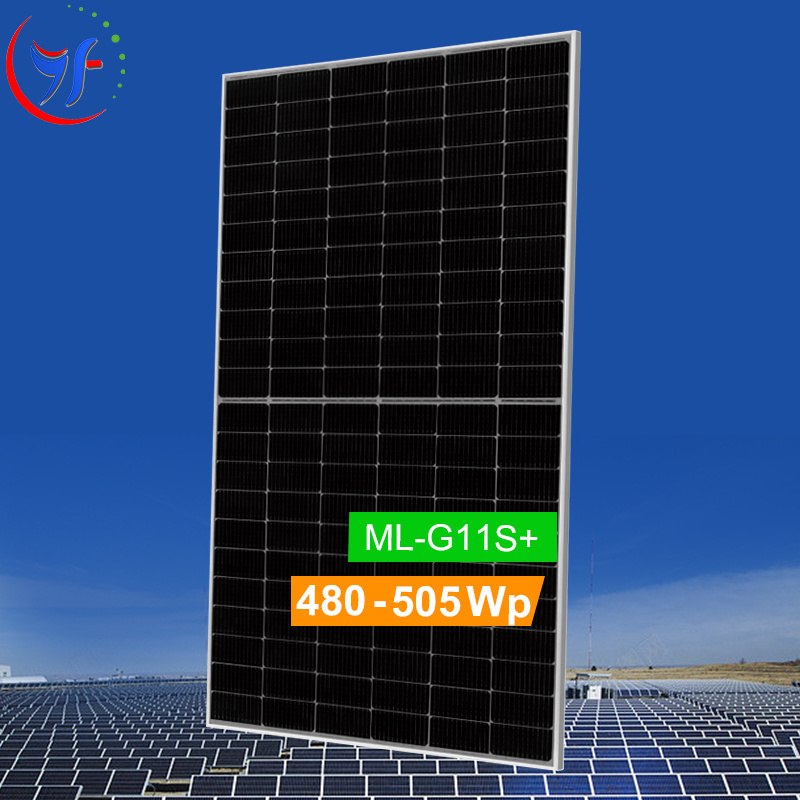

Q.PEAK DUO ML-G11S+ SERIES
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2092 mm * 1134 mm* 30 mm
-
Connector:
-
MC4-Evo2, Hanwha Q CELLS HQC4; IP68
-
Cable:
-
4 mm² Solar cable
-
Solar cell:
-
6*18monocrystalline Q.ANTUM solar half cells
-
Front Cover:
-
3.2mm thermally pre-stressed glass with anti-reflection technology
-
Junction Box:
-
IP67 Rated Waterproof
-
Frame:
-
Anodised aluminium
-
Color:
-
Black
-
Weight:
-
25.7kg
-
Back Cover:
-
Composite film
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.5%
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Q CELLS
-
Model Number:
-
Q.PEAK DUO ML-G11S+ SERIES
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2092 mm * 1134 mm* 30 mm
-
Connector:
-
MC4-Evo2, Hanwha Q CELLS HQC4; IP68
-
Cable:
-
4 mm² Solar cable
-
Solar cell:
-
6*18monocrystalline Q.ANTUM solar half cells
-
Front Cover:
-
3.2mm thermally pre-stressed glass with anti-reflection technology
-
Junction Box:
-
IP67 Rated Waterproof
-
Frame:
-
Anodised aluminium
-
Color:
-
Black
-
Weight:
-
25.7kg
-
Back Cover:
-
Composite film
Technical Parameters
|
Mechanical Specification
|
|
|
|
Format
|
2092 mm × 1134 mm × 30 mm (including frame)
|
|
|
Weight
|
25.7 kg
|
|
|
Front Cover
|
3.2 mm thermally pre-stressed glass with
anti-reflection technology |
|
|
Back Cover
|
Composite film
|
|
|
Frame
|
Anodized aluminium
|
|
|
Cell
|
6 × 22 monocrystalline Q.ANTUM solar half cells
|
|
|
Junction box
|
53-101 mm × 32-60 mm × 15-18 mm
Protection class IP67, with bypass diodes |
|
|
Cable
|
4 mm² Solar cable; (+) ≥ 1415 mm, (−) ≥ 1415 mm
|
|
|
Connector
|
Stäubli MC4-Evo2, Hanwha Q CELLS HQC4; IP68
|
|
|
Electrical Characteristics
|
|
|
|
|
|
|
|
|
||||||||
|
POWER CLASS
|
|
|
480
|
485
|
490
|
495
|
500
|
505
|
||||||||
|
MINIMUM PERFORMANCE AT STANDARD TEST CONDITIONS, STC1 (POWER TOLERANCE +5 W / −0 W)
|
|
|
|
|
|
|
|
|
||||||||
|
Power at MPP
1
|
P
MPP
|
[W]
|
480
|
485
|
490
|
495
|
500
|
505
|
||||||||
|
Short Circuit Current
1
|
I
SC
|
[A]
|
13.82
|
13.85
|
13.88
|
13.91
|
13.94
|
13.97
|
||||||||
|
Open Circuit Voltage
1
|
V
OC
|
[V]
|
45.24
|
45.27
|
45.3
|
45.32
|
45.35
|
45.38
|
||||||||
|
Current at MPP
|
I
MPP
|
[A]
|
13.05
|
13.11
|
13.16
|
13.22
|
13.28
|
13.34
|
||||||||
|
Voltage at MPP
|
V
MPP
|
[V]
|
36.79
|
37.01
|
37.23
|
37.44
|
37.66
|
37.87
|
||||||||
|
Efficiency
1
|
η
|
[%]
|
≥ 20.2
|
≥ 20.4
|
≥ 20.7
|
≥ 20.9
|
≥ 21.1
|
≥ 21.3
|
||||||||
|
MINIMUM PERFORMANCE AT NORMAL OPERATING CONDITIONS, NMOT
2
|
|
|
|
|
|
|
|
|
||||||||
|
Power at MPP
|
P
MPP
|
[W]
|
360.1
|
363.9
|
367.6
|
371.4
|
375.1
|
378.9
|
||||||||
|
Short Circuit Current
|
I
SC
|
[A]
|
11.13
|
11.16
|
11.18
|
11.21
|
11.23
|
11.26
|
||||||||
|
Open Circuit Voltage
|
V
OC
|
[V]
|
42.66
|
42.69
|
42.72
|
42.74
|
42.77
|
42.79
|
||||||||
|
Current at MPP
|
I
MPP
|
[A]
|
10.25
|
10.30
|
10.35
|
10.4
|
10.45
|
10.5
|
||||||||
|
Voltage at MPP
|
V
MPP
|
[V]
|
35.14
|
35.33
|
35.52
|
35.71
|
35.89
|
36.07
|
||||||||
