- Product Details
- {{item.text}}
Quick Details
-
Theory:
-
Centrifugal Pump
-
Pressure:
-
Low Pressure
-
CERTIFICATION:
-
CE
-
Speed:
-
3000rpm
-
Type:
-
fire fighting water pumps
-
voltage:
-
110/220/440v
-
Frequency:
-
60HZ
-
Application:
-
irrigation
Quick Details
-
Brand Name:
-
HUAFA Brand
-
Model Number:
-
IS200-150-250
-
Place of Origin:
-
Shandong, China
-
Theory:
-
Centrifugal Pump
-
Pressure:
-
Low Pressure
-
CERTIFICATION:
-
CE
-
Speed:
-
3000rpm
-
Type:
-
fire fighting water pumps
-
voltage:
-
110/220/440v
-
Frequency:
-
60HZ
-
Application:
-
irrigation

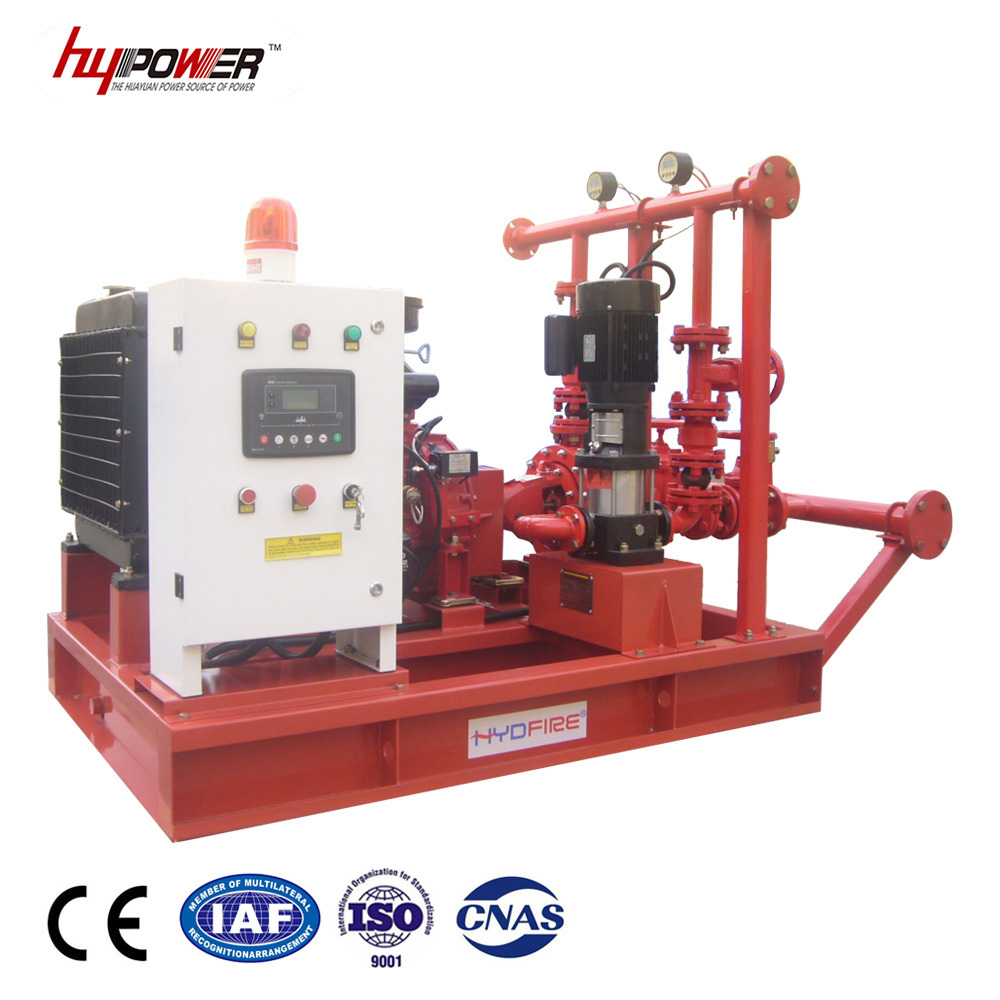

FIRE FIGHTING WATER PUMPS SPECIFCATION
| Fire Fighting Equipment Model | FF200-120 | FF350-120 | FF500-120 |
| Color | Fire Fighting Red Color | ||
| Chasis | Steel Base with 8hours integrated fuel tank for Diesel Engine | ||
| Diesel Engine Model | YD480D | YD480D | YD4100D |
| HP | 38 | 38 | 73 |
| Working RPM | 3000 RPM | 3000 RPM | 3000 RPM |
| Main Water Pump Model | XA40/26 | XA50/26 | XA65/26 |
| Main Water Pump Inlet | 2.5" | 2.5" | 3" |
| Main Water Pump Outlet | 1.5" | 2" | 2.5" |
| Main Water Pump Seal | Mechanical Seal | Mechanical Seal | Mechanical Seal |
| Main Water Pump Flow | 200 GPM | 350 GPM | 500 GPM |
| Main Water Pump Pressure | 120 PSI | 120 PSI | 120 PSI |
| Coupling type | Flexible (No clutch) | Flexible (No clutch) | Flexible (No clutch) |
| Jockey Pump model | Vertical Multistage Pump with electric motor | ||
| Jockey Pump Flow | 8 GPM | 8 GPM | 20 GPM |
| Jockey Pump Pressure | 120 PSI | 120 PSI | 120 PSI |
| Jockey Pump Seal | Mechanical Seal | Mechanical Seal | Mechanical Seal |
| Jockey Pump Frequency | 60 HZ | 60 HZ | 60 HZ |
| Jockey Pump Voltage | 110/220V | 110/220V | 440V |
| Jockey Pump Phases | 1 Phase | 1 Phase | 3 Phase |
| Jockey Pump PSI activation point | 90 PSI | 90 PSI | 90 PSI |
| Main Diesel Pump PSI activation point | 60 PSI | 60 PSI | 60 PSI |
FACTORY SHOW
FIRE FIGHTING WATER PUMPS PRODUCTION LINE
CERTIFICATES
BUSINESS PARTNER
FIRE FIGHTING WATER PUMPS SHOW
*Reply your enquiry in 24 working hours
*Offer customers the lowest price with highest quality
*Dliver the goods to our customer all over the world with speed and precision
*Supply one year guarantee for whole machine from daye of bill of loading or 1000 hours of running or 12 months from date of bill of loading.
