Quick Details
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2800 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FangYuan
-
Voltage:
-
220V,380V,415V
-
Dimension(L*W*H):
-
130*80*190cm
-
Weight (KG):
-
550 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Nutmeg cumin swing hammer structure mill industrial spice grinder
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE,ISO9001,GMP
-
Keyword:
-
Nutmeg Powder Grinding Machine
-
Capacity:
-
60-150kg/h
-
Rotary Speed:
-
4500r/min
-
Feeding Granularity:
-
≤6mm
-
HS CODE:
-
84798200
-
Weight:
-
550kg
Quick Details
-
Output (kg/h):
-
60 - 150 kg/h
-
Feeding Size (mm):
-
0 - 6 mm
-
Output Size (mesh):
-
60 - 120 mesh
-
Power (kW):
-
4
-
Range of Spindle Speed(r.p.m):
-
2800 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FangYuan
-
Voltage:
-
220V,380V,415V
-
Dimension(L*W*H):
-
130*80*190cm
-
Weight (KG):
-
550 KG
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
Nutmeg cumin swing hammer structure mill industrial spice grinder
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE,ISO9001,GMP
-
Keyword:
-
Nutmeg Powder Grinding Machine
-
Capacity:
-
60-150kg/h
-
Rotary Speed:
-
4500r/min
-
Feeding Granularity:
-
≤6mm
-
HS CODE:
-
84798200
-
Weight:
-
550kg

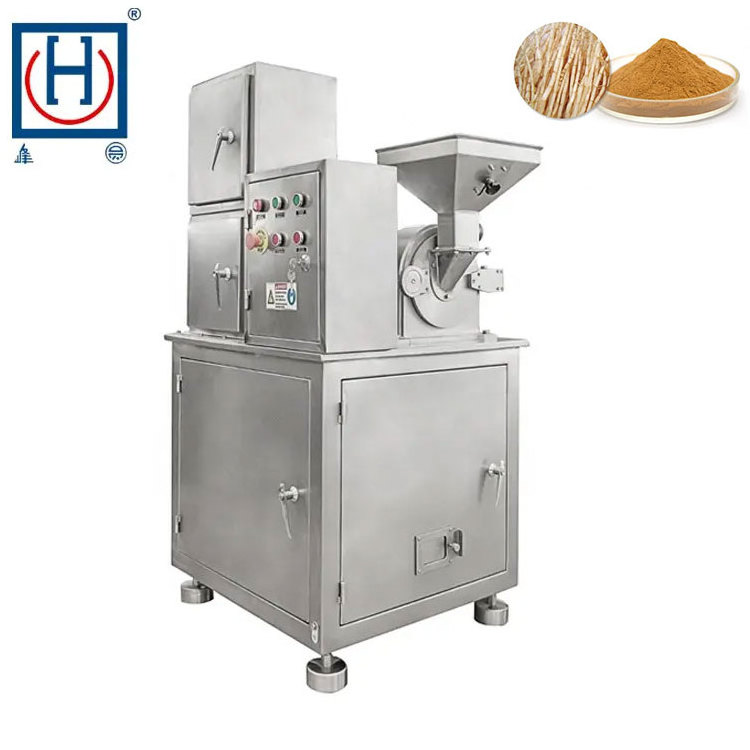

Nutmeg cumin swing hammer structure mill industrial spice grinder rice husk maize grinding machine
Main Application:
This machine is mainly suitable for crushing soft、brittle and fiber materials with Mohs hardness less than 3 in 、chemical、food、pesticide、building and plastics industries.Such as fuel、food additives and plastic additives can achieve satisfactory crushing effect.
Working Principle:
The materials are mainly crushed by the clash between crushing gears and movable knives.It also uses the vortex flow generated by the blade back to strengthen the impact on the material.If the material is heat-sensitive,we can install a cold air circulating cooling device or a cryogenic device which is used in Bio-pharmaceutical or frozen crushing.
Features：
The main technical feature of the machine is to use the dynamic pressure generated by the pulverizer to quickly discharge the product from the machine cavity.The secondary air inlet can be set to reduce the discharge wind resistance, and it can also be connected with the tail air duct of the recovery system and connected with the automatic or pulse box dust collector to avoid flying dust and the loss of materials. This machine is designed according to GMP standard.
Technical data :
|
Model
|
WF-20
|
WF-30
|
WF-40
|
WF-60
|
|
Capacity(kg/h)
|
20-120
|
30-250
|
50-450
|
80-800
|
|
Rotary Speed(r/min)
|
4500
|
4000
|
3500
|
2800
|
|
Dia of Rotor(mm)
|
200
|
300
|
400
|
600
|
|
Motor Power(kw)
|
4
|
7.5
|
11
|
22
|
|
Output Fineness(mesh)
|
20-150
|
20-150
|
20-150
|
20-150
|
|
Feeding Granulator(mm)
|
≤6
|
≤6
|
≤6
|
≤6
|
|
Weight(kg)
|
480
|
550
|
730
|
900
|
Detail picture :
We are online 24 hours a day, please feel free to contact us!
If you want to send inquiry to me about our crusher,could you please tell me?
1) What's your
pre/after-sale service
?
① Professional advice and rich experience help to choose machine.
② Longtime maintainance and considerate technical support
③ Technicians can be sent to abroad to install.
④ One year guarantee. Whole life service. Within 1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
⑤ Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
⑥ Video / CD of test running and installation, Maunal book.
2) How long is your production time?
Our production time is usually 35-40 days. If there is a custom service, the time needs to be calculated separately.
3)
Do you have any certifications qualifying our country?
A: our company’s equipment have passed ISO9001,meanwhile meet the GMP standard with CE & UL certifications, we have exported various countries all over the world, also other certifications is workable if demanded.
