Fluxgate Compass Gyro Compensated Compass 6 Axis Compass Electronic Yaw Heading Sensor

Fluxgate Compass Gyro Compensated Compass 6 Axis Compass Electronic Yaw Heading Sensor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $549

≥10 Pieces

US $521

≥100 Pieces

US $470

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Rion

Theory:: magnetic field

Output:: RS232/RS485/TTL

Description:: Fluxgate Compass

Size:: L111 X W19.5 X H19.5mm

Input voltage:: +-5v or DC9~36V

Axis:: 3 axis

RS-232/RS485/TTL interface connector:: 5PIN connector

weight:: 80g

Start delay:: <50MS

Maximum output rate:: 20Hz/s

Communication rate:: 2400 to19200baud

Output format:: Binary high performance protocol

Heading accuracy:: 0.5° tilt<1°

Quick Details

Usage:: yaw angle measure

Model Number:: HCM605-485

Place of Origin:: Guangdong, China

Brand Name:: Rion

Theory:: magnetic field

Output:: RS232/RS485/TTL

Description:: Fluxgate Compass

Size:: L111 X W19.5 X H19.5mm

Input voltage:: +-5v or DC9~36V

Axis:: 3 axis

RS-232/RS485/TTL interface connector:: 5PIN connector

weight:: 80g

Start delay:: <50MS

Maximum output rate:: 20Hz/s

Communication rate:: 2400 to19200baud

Output format:: Binary high performance protocol

Heading accuracy:: 0.5° tilt<1°

Product Overview

Fluxgate Compass Gyro Compensated Compass 6 Axis Compass Electronic Yaw Heading Sensor

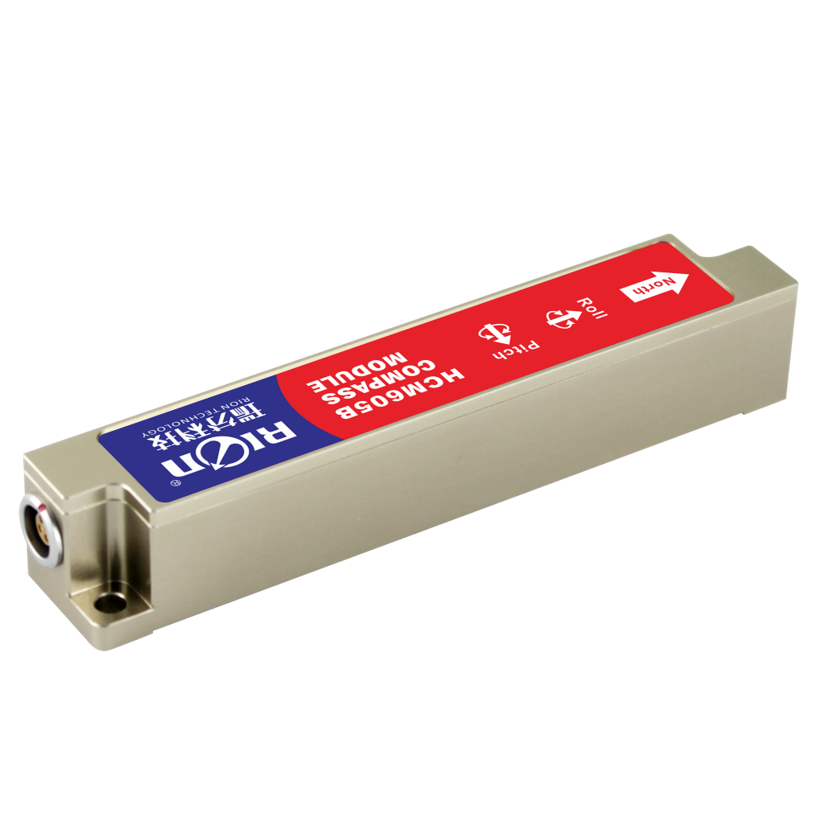

HCM600/HCM605 is a dynamic and high-precision 3 axis electronic compass, which integrates three-axis accelerometer, three-axis gyroscope and three-axis magnetic sensor. The roll angle, pitch angle, and heading angle data are dynamically calculated in real time through a 32bit high-speed processor. , it has three working modes: pure compass, 9-axis fusion mode and 9-axis fusionanti-jamming mode (anti-temporary-interference), using a three-axis accelerometer and a three-axis gyroscope to compensate heading angle error caused even by big tilt angle, and adopting hard iron and soft iron calibration algorithms, so that the roll angle can still provide a high-precision heading angle within the range of ±180°. It is long strip shape with width of only 1.95CM. with high performance, reliability, small size and low power consumption, it is suitable for measuring attitude and heading angles in many fields such as antenna stability, vehicles, and drones. User can order complete product with housing (up to IP67 waterproof level) or compass module.

FEATURES AT A GLANCE

Heading Accuracy: 0.5°

Roll&Pitch Measuring Range:±180°
Tilt Resolution: 0.1°

Tilt Accuracy: <0.2°(Full Range)
Working Temp.: -40℃~+85℃

Dimension: L111×W19.5×H19.5mm
With Gyro compensation, Hard And Soft Magnetic Calibration Rs232/Rs485/Ttl Output

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data
1	Heading Accuracy	0.5° Tilt < 10° 2.0° Tilt < 60°
2	Resolution	0.1°
3	Pitch Accuracy	0.1°<15°（Measure Range） 0.1°<30°（Measure Range） 0.1°<60°（Measure Range） 0.2°<85°（Measure Range）
4	Pitch Range	±85°
5	Roll Accuracy	0.1°<15°（Measure Range） 0.1°<30°（Measure Range） 0.1°<60°（Measure Range） 0.2°<180°（Measure Range）
6	Roll Range	±180°
7	Resolution	0.1°
8	RS-232/RS485/TTL	RS-232/RS485/TTL
9	Soft/Hard Magnetic Calibration	YES
10	Max Output Rate	20Hz/s
11	Output Format	Binary High Performance Protocol
12	Power Voltage	(Default）DC+5V
13	Dimension	L111×W19.5×H19.5mm
14	Weight	80g(Not Include Cable)
