- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
According to the model
-
Weight:
-
9800 KG
-
Marketing Type:
-
New Product
-
Advantage:
-
High Capacity
-
Color:
-
Customerized
-
Spare parts supply:
-
Anytime
-
Quality:
-
Advanced Technology
-
After sale Service:
-
24 Hours Online Service
-
Price:
-
Negotiatable
-
Factory visit:
-
Warmly Welcomed
-
Wearing parts:
-
Plate hammer
-
Do you accept customization?:
-
Yes
-
Spare parts customization:
-
Provide drawings
Quick Details
-
Application:
-
Mining
-
Place of Origin:
-
Henan ,China
-
Brand Name:
-
Shunxiang
-
Dimension(L*W*H):
-
According to the model
-
Weight:
-
9800 KG
-
Marketing Type:
-
New Product
-
Advantage:
-
High Capacity
-
Color:
-
Customerized
-
Spare parts supply:
-
Anytime
-
Quality:
-
Advanced Technology
-
After sale Service:
-
24 Hours Online Service
-
Price:
-
Negotiatable
-
Factory visit:
-
Warmly Welcomed
-
Wearing parts:
-
Plate hammer
-
Do you accept customization?:
-
Yes
-
Spare parts customization:
-
Provide drawings
Product Description

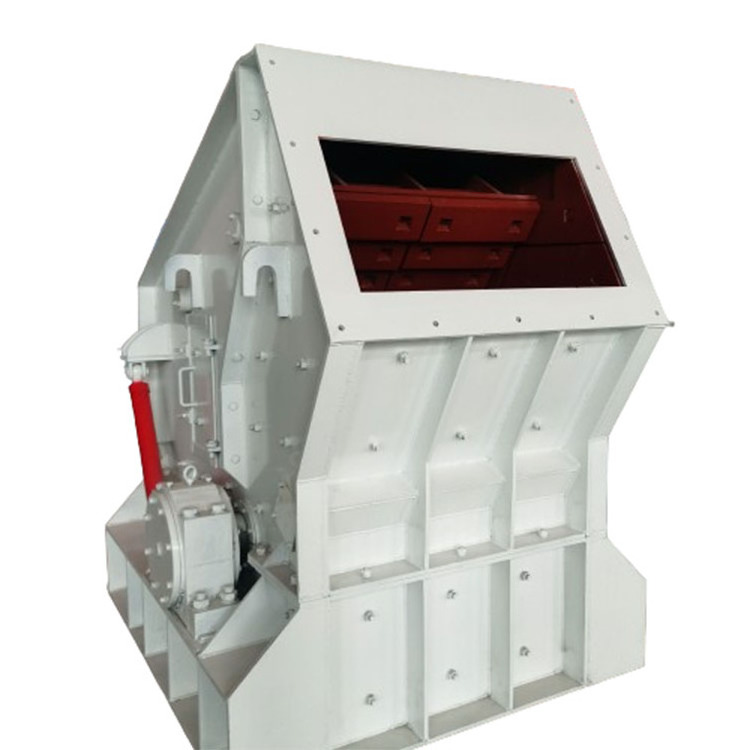

The impact crusher is suitable for producing stone for highways, hydroelectricity, and building materials. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency, and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life, and low cost.
Working Principle
The electric motor drive the rotor to high speed, when the material was fed to the crushing chamber from feed inlet, the material will be struck by the plate hammer on the rotor, then will be thrown to the impact plates, after struck repeatedly, the final products will be discharged from the crusher.
|
Model
|
Feed Opening
Size（mm）
|
Max Feed Size（mm）
|
Rotor Size D*L（mm）
|
Capacity（t/h）
|
Power（kw）
|
Overall Dimension（mm*mm*mm）
|
|
PF-1007
|
450*750
|
250
|
Φ1000*700
|
10-60
|
45
|
2330*1700*2560
|
|
PF-1010
|
450*1100
|
300
|
Φ1000*1050
|
50-90
|
55
|
2330*2010*2560
|
|
PF-1210
|
450*1100
|
300
|
Φ1250*1050
|
70-130
|
90
|
2640*2010*2850
|
|
PF-1214
|
450*1450
|
350
|
Φ1250*1400
|
90-180
|
132
|
2640*2400*2850
|
|
PF-1315
|
650*1500
|
350
|
Φ1320*1500
|
120-250
|
160-200
|
2930*2670*3150
|
Product Advantages
1. Big feed opening, high crushing chamber
2. Easy-adjusted clearance between impact plate and hammer, fine cubic shape
3. Two or Three-curtain cavity design, high efficiency.
4. No-board connection
5. Chrome hammer and special impact plate
6. Adoption of hydraulic arm technology, easy maintenance.
Our Services
Before placing an order :
Answer customer questions: we will provide patient customer service according to the questions raised by customers via email or telephone. For example: at the beginning of communication, customers will consult our machine or some details of our company,we will provide professional answers for customers, so that customers can understand our better solutions. Design drawings: we will design drawings for customer reference. Quotation: according to the purchase quantity of customers, provide detailed solutions.
After placing an order :
Delivery time: after signing the contract and receiving the deposit, the production needs 15 ~ 20 working days. Order tracking:
after receiving the deposit, a professional team will track the order from production to packaging and delivery.
After-sale service:
Warranty period: the main engine is guaranteed for 12 months. Within 12 months, if quality problems of the body (excluding wearing parts) are found, our company will arrange professional engineers to provide required services.
Installation services:
If customers do not need our engineers to install, we will provide remote consulting service. If the customer needs, we can arrange the engineer to provide the installation service.
Product Display
Main Products
About Shunxiang
Henan Shunxiang Machinery Co., Ltd is a company that integrates science, industry and trade. The company mainly produces and sells mechanical equipment and accessories, including jaw crushers, hammer crushers, roller crushers, and screening and conveying equipment. It can also customize stone and sand production lines, etc.Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have always regarded the technology as the motive force, the market as the orientation to make the products first class.
Our company's products with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: What is the quality of your products?
A: We are based on integrity and put quality first. Our machines are manufactured in
strict accordance with national and international standards, and every equipment must be tested before leaving the factory. You can also use Alibaba's trade guarantee to protect product quality, on time delivery and payment protection.
Q: How about the price?
A: We pursue small profits and quick turnover. We can offer you a lower price than other trading companies. In addition, Alibaba customers can enjoy discounts. If this product is really suitable and can benefit you, the price can be negotiated.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the construction site for equipment installation, debugging and operation training. All our engineers have passports.
Q: Can you help to choose the right product?
A:Yes. We have many experts who have worked in this field for many years. They can help you choose the most suitable product according to your actual situation, and design the appropriate process flow according to your special situation. If necessary, we can even send professionals to your place for site planning and workflow design.
Q: When do you deliver the goods?
A: According to the specific products, we usually deliver within 20 days. We will inform you of the time of delivery according to your specific inquiry.
Q: Do you have after-sales service?
A: Yes. Our machine warranty period is one year, we have a professional after-sales service team, can timely and thoroughly solve your problems.
