Quick Details
-
Brand Name:
-
Vowish Patternless Edger
-
Model Number:
-
ALE-1000+ST-1200
-
Product name:
-
Patternless Edger
-
Model:
-
ALE-1000+ST-1200
-
Weight:
-
65kg
-
Usage:
-
Optical Shops
-
Type:
-
Manufacturer
-
Dimension:
-
810mm*690mm*720mm
-
Function:
-
Optical Examination
-
Power:
-
500W
-
Location:
-
Shanghai
Quick Details
-
Warranty:
-
12 month, 12 month
-
Customized support:
-
No
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Vowish Patternless Edger
-
Model Number:
-
ALE-1000+ST-1200
-
Product name:
-
Patternless Edger
-
Model:
-
ALE-1000+ST-1200
-
Weight:
-
65kg
-
Usage:
-
Optical Shops
-
Type:
-
Manufacturer
-
Dimension:
-
810mm*690mm*720mm
-
Function:
-
Optical Examination
-
Power:
-
500W
-
Location:
-
Shanghai
professional auto lens edger patternless edger machine ALE-1000+ST-1200 china top quality patternless edger

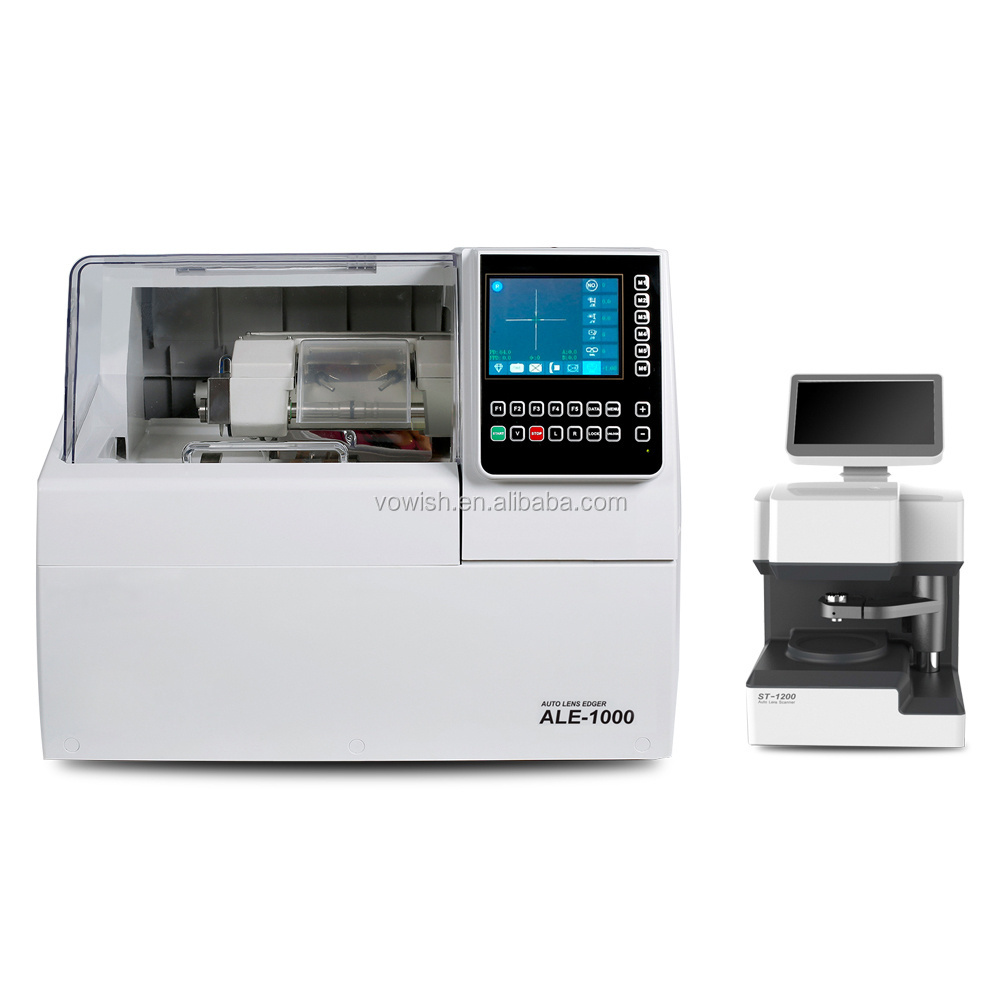

ALE-1000+ST-1200 Patternless Edger
Features:
Ø Adapt to PC glass, Resin, HI, HC and TR lens material
Ø Three grade headpiece pressure to present the lens from being out of axis
Ø Special design suction cup holder to realize lens returning by one push
Ø It is adjustable for the scanning light source, more than 98% Demo lenses are available
Ø Have the optical centering and geometric centering modes
Ø Turn out to install the suction cup, easier to operate
Ø Digital template can edit the figure
|
ALE-1000 |
|
|
Dimension |
620mmx520mmx600mm |
|
Voltage |
AC 220V/110V 50/60HZ |
|
Power |
550W |
|
Accuracy |
Tolerance ±0.01mm |
|
Size Range |
20mm~80mm |
|
Axis Accuracy |
0.1° |
|
The adjustable step length of size |
0.05mm |
|
Clamping Pressure |
80KG |
|
Material |
PC, glass, CR, HI,HR, TC |
|
Processing Type |
Pointy edges, plat band, bevel polishing, plat band polishing |
|
Screen |
High resolution 640x, true color, 5.7 inch TFT LCD, lens photograph displayed as 1:1 and with use-friendly operating interface |
|
ST-1200 |
|
|
Dimension |
325X250X205mm |
|
Voltage |
AC 220V/110V 50/60HZ |
|
Power |
60W |
|
ADD adjusting range |
6mm |
|
Screen tilt range |
0~130 |
|
Max storage |
500 sets |
|
Touch Screen |
7 inch capacitive screen |
