Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2195x980x2150mm
-
Machine Weight:
-
1100 kg
-
Keyword:
-
Mini Wheel Loader
-
Color:
-
Grey and red
-
Min. turning radius:
-
1980mm
-
Max. lifting height:
-
2750mm
-
Rated Speed:
-
10km/h
-
Transmission:
-
4 WD
-
Working Oil Flow:
-
33L/min
-
Attachments:
-
Optioanl
-
Application:
-
Earthmoving
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Power:
-
17.65kw
-
Brand Name:
-
TAIAN
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2195x980x2150mm
-
Machine Weight:
-
1100 kg
-
Keyword:
-
Mini Wheel Loader
-
Color:
-
Grey and red
-
Min. turning radius:
-
1980mm
-
Max. lifting height:
-
2750mm
-
Rated Speed:
-
10km/h
-
Transmission:
-
4 WD
-
Working Oil Flow:
-
33L/min
-
Attachments:
-
Optioanl
-
Application:
-
Earthmoving

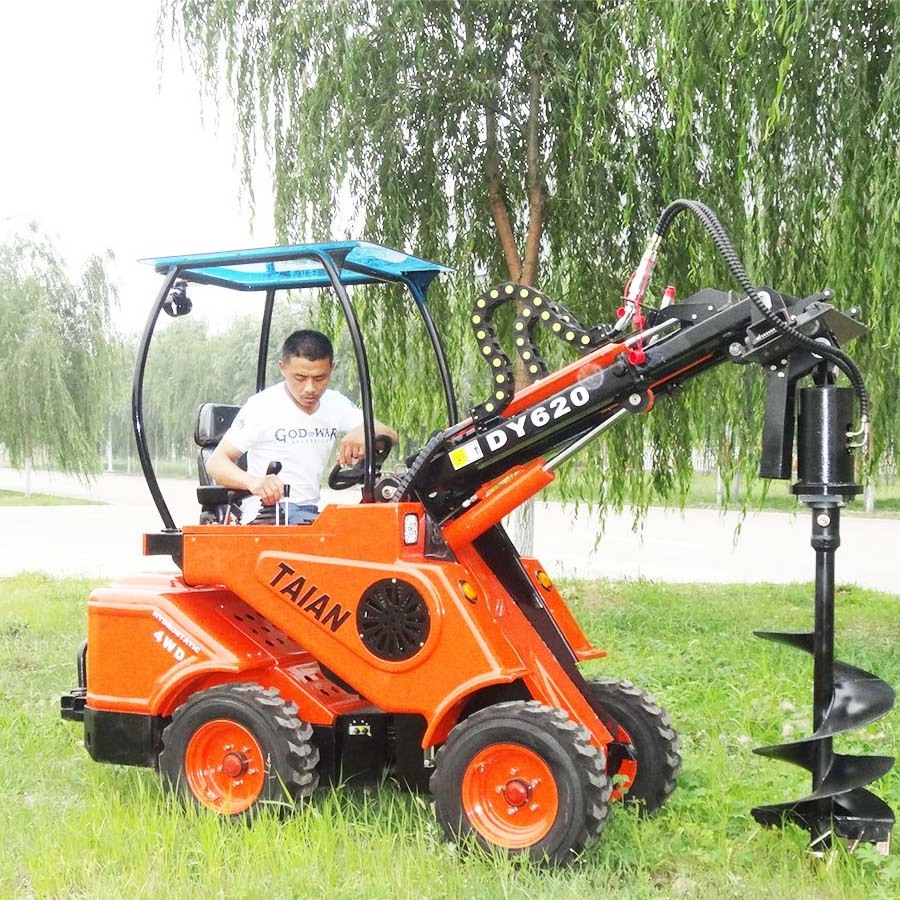

Taian Articulated Mini Wheel Loader DY620 Avant Mini Loader
DY620 Wheel Loader Specifications:
TAIAN’s smallest mini loader, the DY620, is an adaptable and versatile machine for the private user, but also withstands tough professional jobs. With its tight turning radius and compact construction, it is very efficient in confined spaces.
| Max. Reach (Boom Extended) | 2750mm |
| Max. Reach (Boom Retracted) | 2150mm |
| Rated Loading Capacity | 500kg-800kg |
| Min. Turning Radius | 1980mm |
| Turning Angle | 400 |
| Transmission | 4WD |
| Speed | 10km/h |
| Weight | 1100 kg |
| Standard Tire | 23X8.5-12 |
| Tire Pressure | 2.8 bar |
| Oil Tank Capacity | 35L |
| Pressure | 190bar |
| Working Oil Flow | 33L/min |
| Tracking Oil Flow | 50L/min |
| Oil Model(mineral oil) | L-HL46 |
| Fuel Tank Capacity | 18L |
| Battery Capacity | 55Ah |
| Voltage | 12v |
* Compact design , Easy to handle .
* Drive speed as high as 1 0 km/h
* Small turning radius .
* Telescopic B oom as standard .
* Self L evering.
* With Anti-slip function .
*Hydrostatic four wheel drive (4 wheel motors) .
* Great maneuverability – works in tight situations as well.
* Sound alarm for maintenance and warnings.
* High-flow auxiliary hydraulics runs most attachment s .
* European standard quick coupling plate .
*CE, FOPS & ROPS Certified.
*Cab options available: Collapsible Roll Bar, Steel Proof Canopy.
1.The compact size and the telescopic boom widely increase its working range.
2.Front and optional rear hydraulic output together with the quick coupling system makes it a real multifunctional machinery.
3.Our loaders can be used wherever needs a machine:farming, landscaping, construction, estate and property maintenance, etc.
DY series loaders are very good at agriculture works. Powerful lifting force allows easily carrying round bales and performing all cleaning and maintenance operations required when breeding animals. The wide range of attachments and the power of DY loaders make the machine versatile for the care and maintenance of stable, nurseries, vineyards and orchards. Its compact dimensions allow it to move even in the narrowest spaces that cannot be accessed with other machines.
1. Quick response to every inquiry.
2. Professtional and detailed answer to any of customer's questions.
3. Strict QC and in time delivery
4. Offer all relative material for customer to know and better use the machine.
5. Periodically after service follow up, offer any necessary support if needed.
6.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
7.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
8.The repairation or replacement for the parts should not exceed the warranty period.
9.The warranty is valid on the condition of all the terms listed in the contract was observed.
