Quick Details
-
Size:
-
680x700x650
-
Unload Height(mm):
-
1700(Changeable)
-
Excavating Depth(mm):
-
500
-
Excavating Height(mm):
-
2800
-
Excavating Distance(mm):
-
1850
-
Excavating Width(mm):
-
4800
-
Transmission type:
-
Hydraulic
-
Conveying Mode:
-
Conveying Belt
Quick Details
-
Weight (KG):
-
5000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENWEI
-
Size:
-
680x700x650
-
Unload Height(mm):
-
1700(Changeable)
-
Excavating Depth(mm):
-
500
-
Excavating Height(mm):
-
2800
-
Excavating Distance(mm):
-
1850
-
Excavating Width(mm):
-
4800
-
Transmission type:
-
Hydraulic
-
Conveying Mode:
-
Conveying Belt
Products Description

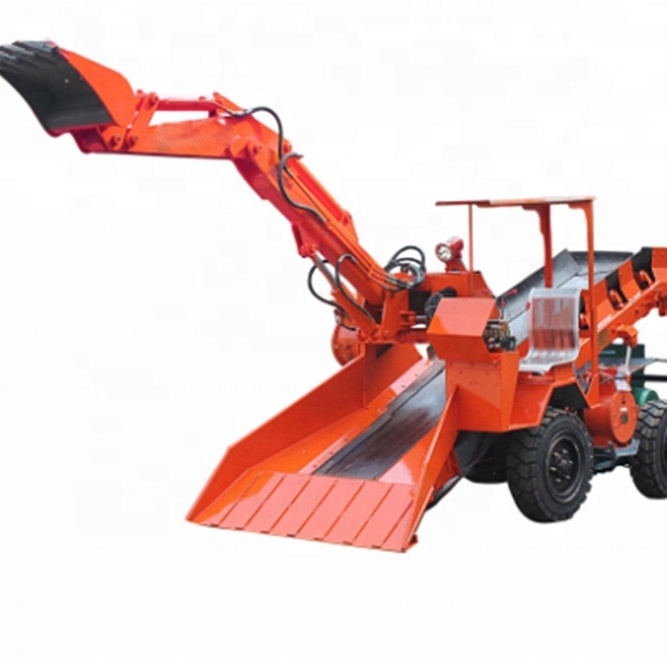

Mucking loader, also known as excavating loader, is a mechanical hand and conveyor joint, slag removal and conveying and loading functions into one, the use of electric full hydraulic control system and production equipment, with safety and environmental protection, low energy consumption, high efficiency characteristics.
Mucking loader is an indispensable advanced mining equipment for mining enterprises. Instead of manual operation, it can scrape all kinds of slag and stone materials after blasting onto transport vehicles. It is a substitute product of manual and other machinery, filling the blank of no mechanical operation in a narrow space.
Mining multi-functional mucking loader is a new type of loader developed to improve labor intensity and work efficiency. It can directly convey ore to conveyor belt. The machine adopts full hydraulic first-come control, and the operation is simple and convenient. The gantry frame of the machine can be disassembled without cutting, so it is convenient to go down well and install. In addition, the rear unloading height can be adjusted according to the customer's own needs.
Mucking loader is an indispensable advanced mining equipment for mining enterprises. Instead of manual operation, it can scrape all kinds of slag and stone materials after blasting onto transport vehicles. It is a substitute product of manual and other machinery, filling the blank of no mechanical operation in a narrow space.
Mining multi-functional mucking loader is a new type of loader developed to improve labor intensity and work efficiency. It can directly convey ore to conveyor belt. The machine adopts full hydraulic first-come control, and the operation is simple and convenient. The gantry frame of the machine can be disassembled without cutting, so it is convenient to go down well and install. In addition, the rear unloading height can be adjusted according to the customer's own needs.
Product Parameters
|
Contents
|
Unit
|
Parameter
|
|
|
|
|
||||
|
|
|
EW-50
|
EWL-60
|
EW-70
|
EWL-80
|
EW-100
|
||||
|
External dimension
|
mm
|
4300*1500*1500
|
4300*1500*1500
|
5600*1700*1700
|
6000*1700*1770
|
6400*1730*1650
|
||||
|
Wheel base
|
|
1300
|
1500
|
1500
|
1700
|
1700
|
||||
|
Wheel tread
|
|
1600
|
1600
|
1700
|
1750
|
1750
|
||||
|
Maximum material go through size
|
|
600*600
|
600*600
|
600*600
|
800*600
|
800*600
|
||||
|
Minimum distance from the ground
|
|
180
|
180
|
180
|
160
|
190
|
||||
|
Total weight
|
T
|
4
|
4
|
4
|
5
|
5
|
||||
|
Maximum lifting height
|
mm
|
1350
|
1350
|
2100
|
2100
|
2100
|
||||
|
Maximum loading height
|
|
1200
|
1200
|
1500
|
1600
|
1500
|
||||
|
Suitable height of charging carriage
|
|
1500
|
1500
|
1700-2100
|
1750-2500
|
1700-2100
|
||||
|
Maximum extension of scraper bucket
|
|
1440
|
1440
|
1300
|
1800
|
1740
|
||||
|
Maximum lift height
|
|
2150
|
2150
|
1900
|
2800
|
1600
|
||||
|
Power
|
Kw
|
15
|
15
|
15
|
19
|
19
|
||||
|
Working arm maximum turning angle
|
(º)
|
73
|
73
|
73
|
73
|
73
|
||||
|
Traveling speed
|
Km/h
|
3/6
|
3/6
|
3/6
|
3/6
|
2.5/1.4
|
||||
|
Maximum digging ability
|
KN
|
11.1
|
11.1
|
11.1
|
11.1
|
11.1
|
||||
|
Loading capacity
|
T/h
|
60
|
60
|
70
|
80
|
100
|
||||
|
Distance from cockpit to ground
|
mm
|
1700
|
1700
|
1700
|
1800
|
1800
|
||||
|
Maximum belt slope
|
(º)
|
22
|
22
|
24
|
24
|
24
|
||||
|
Adaptive tunnel dimension
|
m
|
1.5*1.8
|
1.5*1.8
|
1.8*2.2
|
2.6*2.6
|
3*3
|
||||
Product Function and Application:
Mucking loader is one type of multi-function mining machine integrating moving, digging, collecting, loading, conveying. The products adopt electric power full-hydraulic drive system. Pushing force is large, digging range is wide, whole section excavating, no need manual work to clean the working site.
Mucking loader is used widely for mining of coal mine,metal mine,non-metal mine and tunneling of hydro project.
Products Advantage:
Compact structure
Easy to handle and maintain
Stable and durable performance
High efficiency and saving man power
Energy conservation and environment protection
Mucking loader is one type of multi-function mining machine integrating moving, digging, collecting, loading, conveying. The products adopt electric power full-hydraulic drive system. Pushing force is large, digging range is wide, whole section excavating, no need manual work to clean the working site.
Mucking loader is used widely for mining of coal mine,metal mine,non-metal mine and tunneling of hydro project.
Products Advantage:
Compact structure
Easy to handle and maintain
Stable and durable performance
High efficiency and saving man power
Energy conservation and environment protection
