Quick Details
-
Product name:
-
H44W-600LB
-
Design and Manufacture:
-
ANSI B16.34, BS 1868
-
Face to Face:
-
ANSI B16.10
-
Flange:
-
ANSI B16.15
-
Pressure-temperature:
-
ANSI B16.34
-
Inspection:
-
API 598
-
Body Test:
-
15.3(MPa),2225(Lbf/in2)
-
Seal test:
-
11.2(MPa),1630(Lbf/in2)
-
Air Test:
-
0.5~0.7(MPa),60~100(Lbf/in2)
-
Applicable Medium:
-
Water / Oil / Gas / Causticity Medium
Quick Details
-
Port Size:
-
DN50~DN150
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
H44W-600LB
-
Product name:
-
H44W-600LB
-
Design and Manufacture:
-
ANSI B16.34, BS 1868
-
Face to Face:
-
ANSI B16.10
-
Flange:
-
ANSI B16.15
-
Pressure-temperature:
-
ANSI B16.34
-
Inspection:
-
API 598
-
Body Test:
-
15.3(MPa),2225(Lbf/in2)
-
Seal test:
-
11.2(MPa),1630(Lbf/in2)
-
Air Test:
-
0.5~0.7(MPa),60~100(Lbf/in2)
-
Applicable Medium:
-
Water / Oil / Gas / Causticity Medium
Why Choose Us
Accept customization
1, material customization
2, size customization
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
3, color customization
4, Pressure customization
5, logo customizationPlease tell
our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you
Our company participates in large-scale urban construction projects in China.
1、Project of China Railway
2、Project of GREENTOWN CHINA HOLDINGS LTD.
3、Project of Hangzhou asian games village
4、Project of Shenzhen Fangda Plaza
4、Project of Shenzhen Fangda Plaza
Product Description

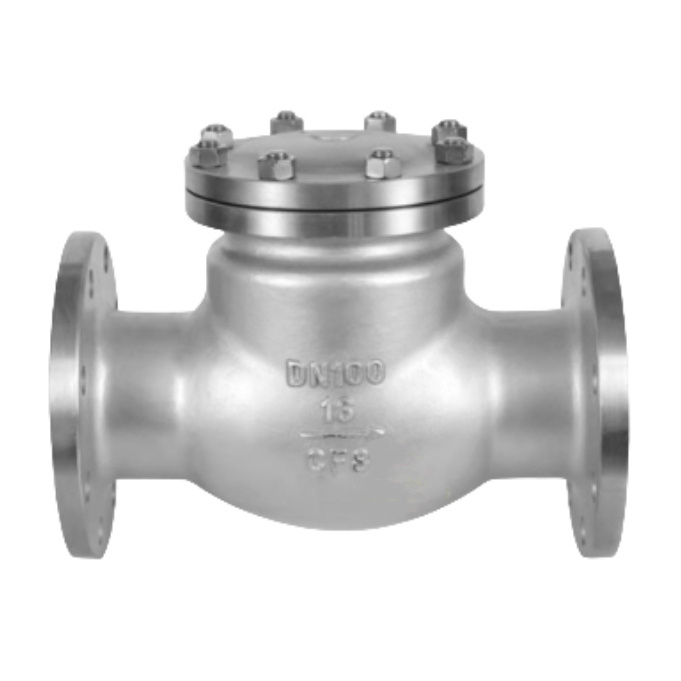

H44W-300LB American standard API ANSI stainless steel swing check valve is applicable to nominal pressure class150 ~ 2500lb; The nominal diameter is ins1/2 ~ 48 "; and the working temperature is -29 ~ 550 ℃.
It is used to prevent medium Backflow on pipelines under various working conditions such as petroleum, chemical industry and thermal power station. The valve body materials are carbon steel, stainless steel, etc. which can be used for water, steam, gas, oil products, acid media, etc.
Main features
1.The material selection is exquisite, in line with relevant domestic and foreign standards, and the overall quality of the material is high.
2.The sealing pairs are advanced and reasonable. The sealing surfaces of valve clack and valve seat are made of iron-based alloy or Stellite cobalt based cemented carbide surfacing. They have good wear resistance, high temperature resistance, corrosion resistance and scratch resistance, and long service life.
3.The product H44W-600LB is designed and manufactured according to the national standard GB/T12235, API 6D, API 6A ANSI etc.
4.Various piping flange standards and flange sealing types can be adopted to meet various engineering needs and user requirements.
5.The valve body has a complete variety of materials. The gaskets can be reasonably selected according to the actual working conditions or user requirements, and H44W-300LB can be applied to various pressure, temperature and medium working conditions.
2.The sealing pairs are advanced and reasonable. The sealing surfaces of valve clack and valve seat are made of iron-based alloy or Stellite cobalt based cemented carbide surfacing. They have good wear resistance, high temperature resistance, corrosion resistance and scratch resistance, and long service life.
3.The product H44W-600LB is designed and manufactured according to the national standard GB/T12235, API 6D, API 6A ANSI etc.
4.Various piping flange standards and flange sealing types can be adopted to meet various engineering needs and user requirements.
5.The valve body has a complete variety of materials. The gaskets can be reasonably selected according to the actual working conditions or user requirements, and H44W-300LB can be applied to various pressure, temperature and medium working conditions.
Relevant implementation standards
Design and Manufacture:ANSI B16.34, BS 1868
Face to Face:ANSI B16.10
Flange:ANSI B16.15
Pressure-temperature:ANSI B16.34
Inspection:API 598
Body Test:15.3(MPa),2225(Lbf/in2)
Seal test:11.2(MPa),1630(Lbf/in2)
Air Test:0.5~0.7(MPa),60~100(Lbf/in2)
Applicable Medium: Water / Oil / Gas / Causticity Medium
Face to Face:ANSI B16.10
Flange:ANSI B16.15
Pressure-temperature:ANSI B16.34
Inspection:API 598
Body Test:15.3(MPa),2225(Lbf/in2)
Seal test:11.2(MPa),1630(Lbf/in2)
Air Test:0.5~0.7(MPa),60~100(Lbf/in2)
Applicable Medium: Water / Oil / Gas / Causticity Medium
|
item
|
value
|
|
Application
|
General
|
|
Port Size
|
DN50~DN150
|
|
Warranty
|
3 years
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Model Number
|
H44W-600LB
|
|
Power
|
Hydraulic
|
|
Temperature of Media
|
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
|
|
Brand Name
|
|
|
Structure
|
Gate
|
|
Media
|
Water
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Product name
|
H44W-600LB
|
|
Design and Manufacture
|
ANSI B16.34, BS 1868
|
|
Face to Face
|
ANSI B16.10
|
|
Flange
|
ANSI B16.15
|
|
Pressure-temperature
|
ANSI B16.34
|
|
Inspection:API 598
|
ASME B16.10,API 6D,BSEN 558
|
|
Body Test
|
15.3(MPa),2225(Lbf/in2)
|
|
Seal test
|
11.2(MPa),1630(Lbf/in2)
|
|
Air Test
|
0.5~0.7(MPa),60~100(Lbf/in2)
|
|
Applicable Medium
|
Water / Oil / Gas / Causticity Medium
|
Main parts and materials
|
PART
|
MATERIAL
|
|
|
|
BODY
|
CF8M
|
CF8
|
|
|
DISC
|
CF8M
|
CF8
|
|
|
PIN
|
304
|
|
|
|
GASKET
|
PTFE
|
|
|
|
GASKET
|
PTFE
|
|
|
|
CAP
|
CF8M
|
CF8
|
|
Main structure and connection dimensions
