Quick Details
-
Focal Length:
-
1.6mm
-
Image Format:
-
1/3"
-
Mount:
-
M12
-
Ingress Protection (waterproof):
-
IP68
-
F/No.:
-
F2.5
-
Resolution:
-
Mega pixel
-
TTL(mm):
-
12.92mm
-
Image Circle:
-
5.00mm
-
IR Cut-off:
-
650nm±20nm at 50% normalized transmittance
-
Product name:
-

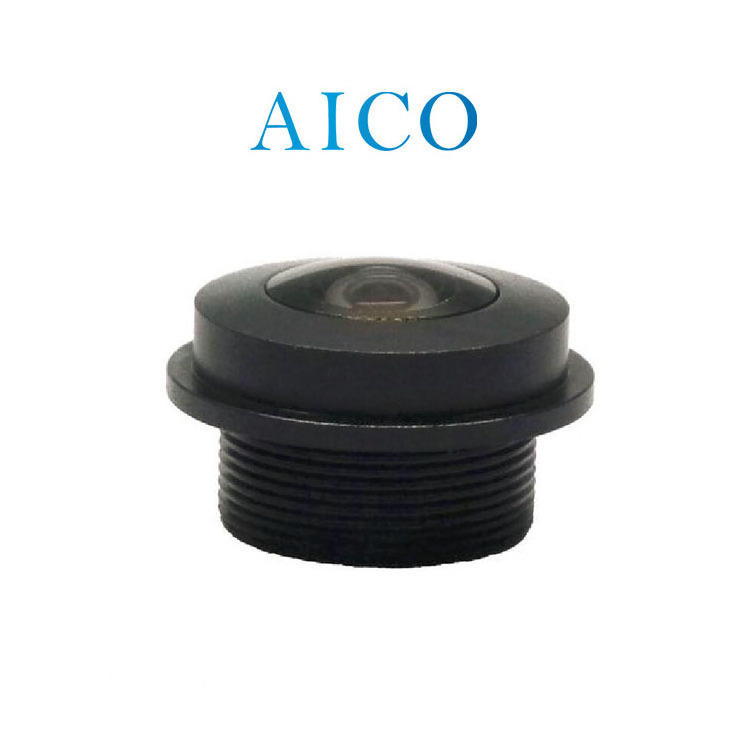

IP68 water proof 200 degree mega pixel M12 automotive cctv camera lens
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AICO
-
Model Number:
-
ACTM1216MP2
-
Focal Length:
-
1.6mm
-
Image Format:
-
1/3"
-
Mount:
-
M12
-
Ingress Protection (waterproof):
-
IP68
-
F/No.:
-
F2.5
-
Resolution:
-
Mega pixel
-
TTL(mm):
-
12.92mm
-
Image Circle:
-
5.00mm
-
IR Cut-off:
-
650nm±20nm at 50% normalized transmittance
-
Product name:
-
IP68 water proof 200 degree mega pixel M12 automotive cctv camera lens
1/3" 1.6mm IP68 water proof FOV 200 degree deg mega pixel M12 mount automotive mp car cctv camera linse lens
|
EFL(mm) |
1.6mm |
||||
|
F Number |
F2.5 |
||||
|
FOV
|
Sensor |
1/3” |
1/3.7" |
1/4" |
|
|
D |
200° |
200° |
170° |
||
|
H |
188° |
151° |
138° |
||
|
V |
134° |
108° |
102° |
||
|
TTL(mm) |
12.92 |
||||
|
Image Circle(mm) |
Φ5.00mm |
||||
|
Resolution |
MegaPixel |
||||
|
BFL (mm) |
3.51mm |
||||
|
Ingress Protection |
IP68 |
||||
|
Operating Temperature |
-40 ℃ ~ +105 ℃ |
||||
|
Mount |
M12 |
||||
|
Optical Distortion |
-98% |
||||
|
IR Cut-off |
650nm ± 20nm at 50% normalized transmittance |
||||
|
M.O.D |
0.15m |
||||
|
Dimension |
16x9.95mm |
||||
|
MBF |
2.97mm |
||||
|
Operation |
Iris |
Fixed |
|||
|
Focus |
Manual |
||||
|
Model |
ACTM1216MP2 |
||||
Related Automotive Lenses
| Model No. | FL | Mount | FNo. | Format | FOV |
| ACTM1232MP | 3.2mm | M12 | F2.5 | 1/3" | 100/99/68 |
| ACTM1221MP | 2.1mm | M12 | F2.5 | 1/2.7" | 195/155/114 |
| ACTM121382MP | 1.38mm | M12 | F2.1 | 1/2.7" | 180/180/153 |
| ACY6019PE1 | 0.955mm | M12 | F2.0 | 1/4" | 210/192/142 |
| ACY1711PC1 | 3.18mm | M12 | F1.8 | 1/2.7" | 146/119/61 |
| ACY5018PC1 | 1.67mm | M12 | F2.0 | 1/3" |
200/160/121.5 1/3" IMX224
148/121/92 1/4" AR0140 |
| ACY5098R1(F) | 2.3mm | M8 | F2.5 | 1/3" | 160/115/95 |
