Product name:
-
optical receiver
-
Wavelength:
-
1550nm
-
Warranty:
-
1 Year
-
Power supply:
-
DC 5V/1A
-
Optical Connector:
-
SC/APC FC/APC
-
Weight:
-
0.5KG
-
Model:
-
OR22C
-
input power range:
-
-18~0dbm
-
output power:
-
78~88dbuv
-
Application:
-
FTTH FTTB FTTX Network
Quick Details
-
Type:
-
Optical Receiver
-
Model Number:
-
OR22C
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HENSURE
-
Use:
-
FIBER TO HOME
-
Warranty Time:
-
1 YEAR
-
Product name:
-
optical receiver
-
Wavelength:
-
1550nm
-
Warranty:
-
1 Year
-
Power supply:
-
DC 5V/1A
-
Optical Connector:
-
SC/APC FC/APC
-
Weight:
-
0.5KG
-
Model:
-
OR22C
-
input power range:
-
-18~0dbm
-
output power:
-
78~88dbuv
-
Application:
-
FTTH FTTB FTTX Network

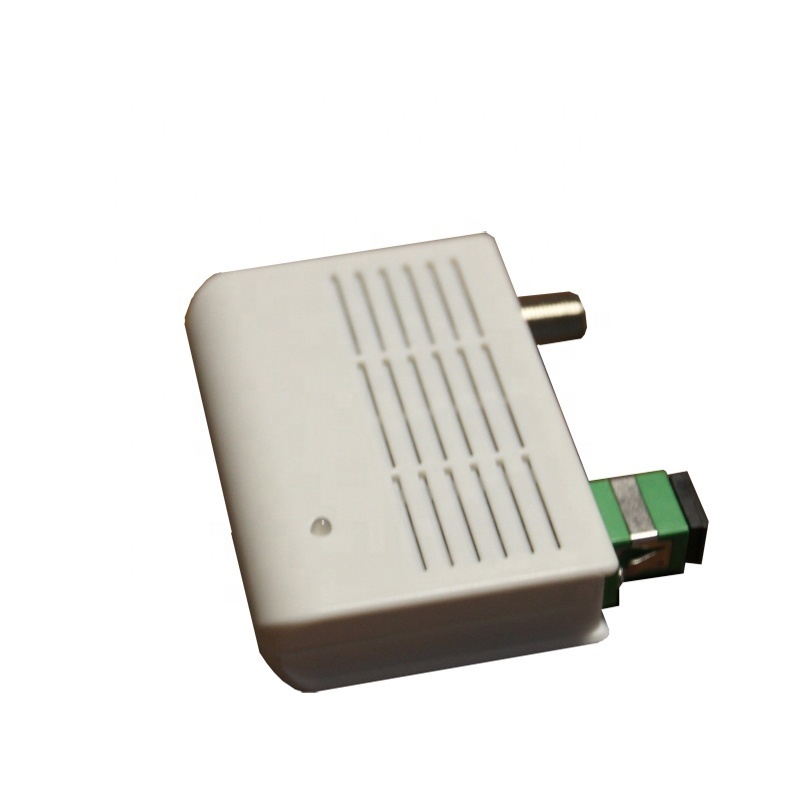

OR22 FTTH Optical Receiver
I . Product description
OR22 FTTH optical receiver is specifically designed for CATV FTTH network. Its main feature is low power consumption, AGC optical constant level output, small Volume and high reliability. Adopting aluminum alloy shell, with optical control AGC circuit built in, compact structure and external modular power supply make the installation and debugging very convenient. It is an ideal product to build FTTH CATV network.
II . Product feature
1. Brushed aluminum shell with good heat dispersion .
2. Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach -15dBm, and -9dBm for analog signal.
3. AGC control range 0~-15dBm, output level keeps unchanged.
4. Low consumption design and total consumption ≤2w, high reliable switching power supply with optical inspection circuit.
5. SC/APC or FC/APC optical connector
6. The output level can be adjustable within the range 0 -18dB, output level more then 80dBuV.
7. R ealize the 5 v input port feeding way of power supply
III . Technical parameter
|
Item |
Unit |
Paramter |
Supplement |
|
Model |
|
OR22A |
|
|
Optical wavelength |
nm |
1260~1620nm |
|
|
@1550nm |
With filter |
||
|
Optical input range |
(dBm) |
0~ -15 |
Analog TV |
|
0~-23 |
Digital TV |
||
|
Output return loss |
(dB) |
≥45 |
|
|
Bandwidth (MHz) |
MHz |
47~862 |
|
|
Flatness (dB) |
dB |
±0.75 |
|
|
RF output level |
(dBuv) |
≥ 82 |
Pin:- 10 .0~+0dBm |
|
AGC control range |
(dBm) |
0~-15 |
|
|
AGC character (dB) |
dB |
≤±0.5 |
Pin:- 10 .0~+0dBm |
|
Output return loss |
(dB) |
≥14 |
47- 1000 MHz |
|
Output impendance |
(Ω) |
75 |
|
|
MER |
dB |
>36 |
Pin:-15~+0 |
|
dB |
>28 |
Pin:-22dBm |
|
|
BER |
dB |
<1.0E-9 |
Pin:-15-0dBm |
|
dB |
<1.0E-9 |
Pin:-22dBm |
|
|
CNR (dB) |
dB |
≥51 |
Pin=-2dBm |
|
CTB (dB) |
dB |
≥65 |
Pin=-2dBm |
|
CSO (dB) |
dB |
≥62 |
Pin=-2dBm |
|
Power supply (V) |
V |
+ 5 VDC |
|
|
Power consumption |
W |
≤ 2 |
+ 5 VDC,250mA |
|
Operating temperature |
( ℃ ) |
-20~+60 |
|
|
Dimension |
mm |
76 *6 5 * 18 |
|
Ordering instruction:
WF:with Filter,only receive1550nm.
Connectors:SA:SC/APC;FA:FC/APC;SP :SC/PC;FP:FC/PC ,customized.
Fiber Optic to RF Converter Mini AGC FTTH CATV Optical Receiver Package: 1pcs / Bag, 100pcs / Carton
This device warranty is 12 months. If the problem is caused by the user’s wrong operation or natural force majure, we will only be responsible for the maintenance and charge the appropriate material cost.
When the device has problem, please contact us immediately. On-site maintenance of faulty device should be operated by professional technician to avoid causing more damage to the equipment.
Note
: For users who disassemble and repair equipment wihtout our authorization, our company will not offer free warranty. Reasonable maintenance and materials costs will be collected.
