Quick Details
-
Weight:
-
7-100
-
Size:
-
2.5-200INCH
-
Power:
-
0
-
Weight (KG):
-
8 kg
-
Working pressure:
-
300/450/600/800/1000psi
-
Application:
-
Water Desalination
-
Function:
-
RO Water Purification
-
Certification:
-
ISO 9001:2015
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HM
-
Material:
-
FRP, frp
-
Weight:
-
7-100
-
Size:
-
2.5-200INCH
-
Power:
-
0
-
Weight (KG):
-
8 kg
-
Working pressure:
-
300/450/600/800/1000psi
-
Application:
-
Water Desalination
-
Function:
-
RO Water Purification
-
Certification:
-
ISO 9001:2015

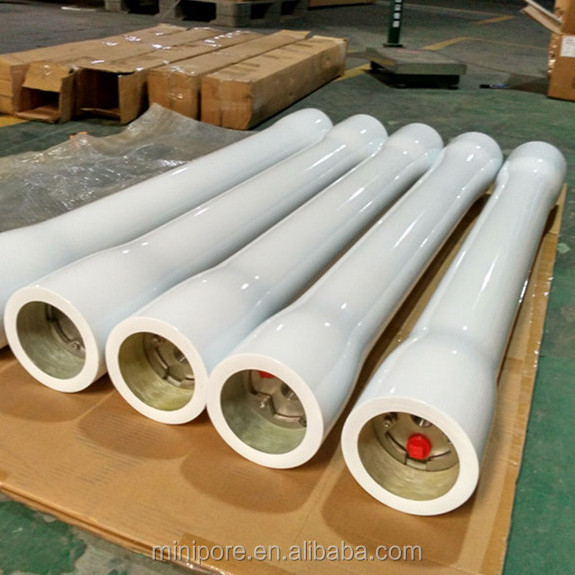

1.Stainless Steel/FRP RO membrane vessel
2.sizes:8040/8080/80120/80160... 4040/4080/40120/40160.
3.matrial: SS304/316/FRP
RO Membrane Vessel
SSMV40-1(End port & Half-clamp closure)
A. Material:Stainless Steel #304/#316L
B. Housing tube type:Seamed,Seamless
C. End cap material:ABS,Stainless steel
D. Max.working pressure:250psi
E. Inlet port:3/4″female thread
F. Outlet port:1/2″female thread
G. Model:2521,2540,4021,4040,4080,40120,40160
SSMV40-2(Side port & Half-clamp closure)
A. Material:Stainless Steel #304/#316L
B. Housing tube type:Seamed,Seamless
C. End cap material:ABS,Stainless steel
D. Max.working pressure:250psi
E. Inlet port:3/4″female thread
F. Outlet port:1/2″female thread
G. Model:2521,2540,4021,4040,4080,40120,40160
SSMV80-1(End port & Victaulic clamp closure)
A. Material:Stainless Steel #304/#316L
B. Housing tube type: Seamless
C. End cap material:ABS,Stainless steel
D. Max.working pressure:300psi
E. Inlet port:1 1/2″Victaulic
F. Outlet port:1″female thread
G. Model:8040,8080,80120,80160…
SSMV80-2(Side port & Victaulic clamp closure)
A. Material:Stainless Steel #304/#316L
B. Housing tube type: Seamless
C. End cap material:ABS,Stainless steel
D. Max.working pressure:300psi
E. Inlet port:1 1/2″Victaulic
F. Outlet port:1″female thread
G. Model:8040,8080,80120,80160…
FRPMV40(End port)
A.Material:FRP
B.End cap material:ABS
C.Max.working pressure:300psi,450psi,600psi,800psi
D. Inlet port:3/4″female thread
E.Outlet port:1/2″female thread
F. Model:4021,4040,4080,40120,40160…
FRPMV80(Side port)
A.Material:FRP
B.End cap material:ABS
C.Max.working pressure:300psi,450psi,600psi,800psi
D. Inlet port:3/4″Victaulic
E.Outlet port:1/2″female thread
F. Model:4021,4040,4080,40120,40160…
| parameter | L | L1 | A | B |
| items | (mm) | (mm) | (mm.in) | (mm.out) |
| 8040 | 1174 | 1080 | Dg25,1" | Dg40,1 1/2" |
| 8080 | 2190 | 2096 | Dg25,1" | Dg40,1 1/2" |
| 80120 | 3206 | 3112 | Dg25,1" | Dg40,1 1/2" |
| 80160 | 4222 | 4128 | Dg25,1" | Dg40,1 1/2" |
| 80200 | 5238 | 5144 | Dg25,1" | Dg40,1 1/2" |
| 80240 | 6254 | 6160 | Dg25,1" | Dg40,1 1/2" |
