Quick Details
-
Usage:
-
Continuous Emission Monitoring system
-
Detecting Gas:
-
CO2, CO, SO2, O2, NO2, NO, HCl, HF...
-
Applications:
-
Boiler, furnace, incinerator
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kelisaike
-
Model Number:
-
QY800B
-
Usage:
-
Continuous Emission Monitoring system
-
Detecting Gas:
-
CO2, CO, SO2, O2, NO2, NO, HCl, HF...
-
Applications:
-
Boiler, furnace, incinerator

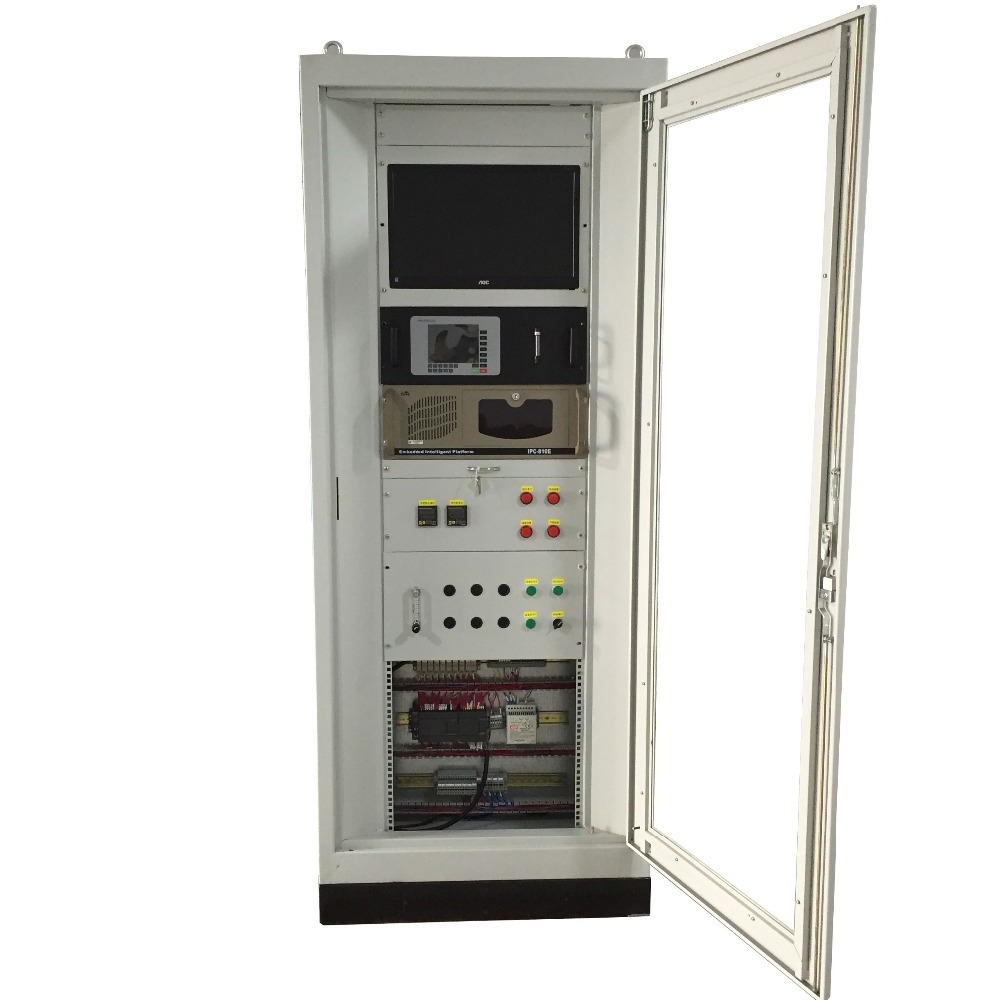

The Kelisaike QY800B CEMS is a cost-effective continuous emissions monitoring systems (CEMS), made of Kelisaike pre-engineered devices, for the applications where different components must be monitored for regulatory compliance. The KF300 CEMS adopts field-proven analyzer technologies, with integrated modular design, coupled with robust and reliable sample extraction and conditioning systems. The KF300 system is backed by Kelisaike company's comprehensive CEMS support services, which include installation, startup, testing, in-house training and on-going maintenance and support for the system’s life cycle.
| Items |
Specifications |
|
SO2 detection range |
0 ~ 200 ~ 1000 ppm |
|
NO detection range |
0 ~ 500 ~ 1000 ppm |
|
O2 detection range |
0 ~ 25% |
|
HF detection range |
0-100 ppm |
|
HCL detection range |
0-100 ppm |
|
Detection accuracy |
SO2/NOX: 1%, O2: 0.05% |
|
Linear error |
±1% F.S./7 d |
|
Repeatability error |
±1% F.S./7 d |
|
Zero drift |
±2% F.S./7 d |
|
Detection range drift |
±2% F.S./7 d |
|
T90 response time |
30 s |
|
Air flow |
1.5±0.5 L/min |
|
Temperature |
5 ~ 45℃ |
|
Humidity |
<90% RH |
|
Analog output signal |
DC 4 ~ 20 mA, 4 channels, Optional + extra configuration |
|
Analog input signal |
DC 4 ~ 20 mA, 4 channels |
|
Digital input |
Specific function, 4 channel (extra configuration) |
|
On-off output |
3 channel, optional +2 channels auto calibration + extra configuration |
|
Power supply |
170 ~ 264 V/100 VA |
|
Size |
23.9 inches*3 units |
|
Items |
Specifications |
|
Laser wave length |
650 ± 20 nm |
|
Detection range |
0 ~ 200 ~ 500 ~ 1000 mg/m 3 |
| Zero drift |
±2% F.S./7 d |
|
Detection range drift |
±2% F.S./7 d |
|
Readout error |
±2% F.S. |
|
Response time |
≤ 10 s |
|
Flue diameter |
0.7 ~ 20 m |
|
Power supply |
DC 24 V/3 A |
|
Analog output |
DC 4 ~ 20 mA |
|
Serial port output |
RS485 (optional MODBUS protocol) |
|
Working temperature |
-20 ~ 50℃ |
|
Size |
205 × 160 × 160 mm |
|
IP grade |
IP54 |
Flue Environmental Parameters
|
Items |
Specifications |
|
Flow velocity measurement range |
0~40 m/s (>5m/s) |
|
Precision |
≤10 m/s, absolute error≤±12% >10 m/s, relative error ≤±10% |
|
Response time |
≤20 s |
|
Analog output |
4~20 mA |
|
Static pressure measurement range |
-2500 ~ 2500 Pa detection optional |
|
Accuracy |
≤± 1% |
|
Response time |
≤ 10 s |
|
Analog output |
4~20 mA |
|
Temperature measurement range |
0 ~ 300℃ |
|
Accuracy |
± 3℃ |
|
Response time |
≤10 s |
|
Analog output |
4 ~ 20 mA |
|
Power supply |
220 V AC |
Moisture Meter Parameters
| Items |
Specifications |
|
Humidity measurement range |
0 ~ 40% Vol |
|
Accuracy |
≤ 5%, absolute error ≤ ±1.5% > 5%, relative error ≤ ±20% |
|
Analog output |
4 ~ 20 mA |
|
Power supply |
220 V AC |
|
IP grade |
IP65 |
1. For all our products, we offer a 1 year warranty and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support; our engineers will help to solve the problems you met.
4. We can provide OEM and ODM service.
5. Our factory is located in Nanjing city, welcome to visit our factory.
6. All products will be fully checked and well packed before shipment, and qualification certificate will be provided.
Calibration:
For the calibration of KELISAIKE products, please feel free to contact us for help.
Why should you choose KELISAIKE?
1. Mutual benefits: We are a manufacturer, so we can offer products of the same quality at the best prices.
2. Professional engineers: We have seasoned engineers with over 10 years’ experience in gas detection field. With various hi-tech equipment, we make products with higher accuracy and stability.
3. Customization: Thanks to our strong R&D team, we can customize our products at your request.
4. Free OEM service: a) Silk-print your Logo (≥ 100 PCS). b) Design your colour box packing (≥ 200 PCS).
5. Mixed order: We accept mixed orders, with different models and small quantity orders.
6. After service: (a) 1 Year warranty. (b) If you found any of our products of inferior-quality, we will send you new ones to replace them for free in the next order after verification.
