Quick Details
-
Expected Mechanical Life:
-
1,000,000 Operations
-
Short Circuit Current:
-
1000A
-
Certification:
-
CE; UL
-
Cable Entry:
-
M20, 1/2"NPT
-
NC Contacts:
-
Positive Opening
-
Head:
-
Rotated in 4 positions
-
Body:
-
Metal or Plastic
-
Pollution Degree:
-
3
-
Rated Impulse Withstand:
-
2500V
Quick Details
-
Max. Voltage:
-
600V
-
Place of Origin:
-
Fujian, China
-
Storage Temperature Range:
-
-40 °C to 50 °C [-40 °F to 185 °F]
-
Expected Mechanical Life:
-
1,000,000 Operations
-
Short Circuit Current:
-
1000A
-
Certification:
-
CE; UL
-
Cable Entry:
-
M20, 1/2"NPT
-
NC Contacts:
-
Positive Opening
-
Head:
-
Rotated in 4 positions
-
Body:
-
Metal or Plastic
-
Pollution Degree:
-
3
-
Rated Impulse Withstand:
-
2500V
Basica Parameters:Multi-Entry Trapped Key-Operated Safety Interlock Door Switch
|

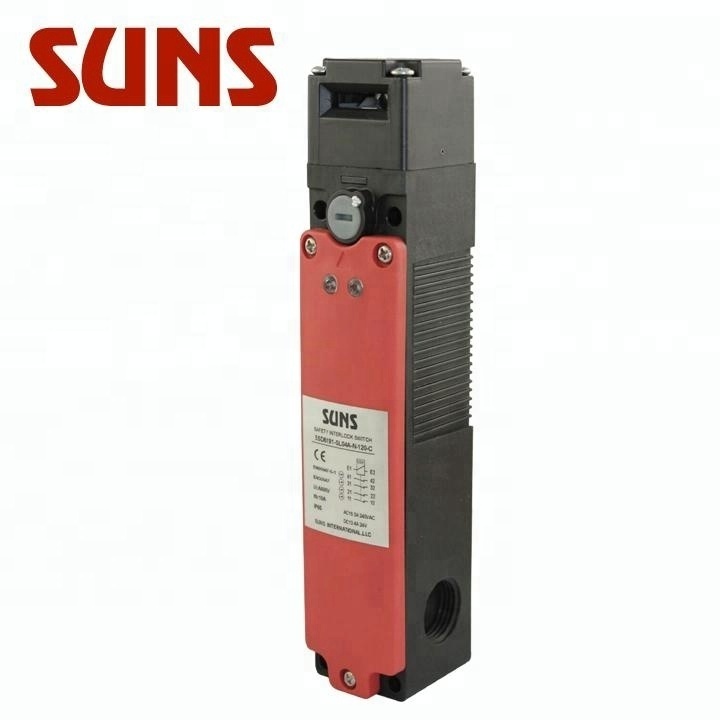

DESCRIPTION: SUNS SS/SSD6191 trapped key safety interlock switch is designed for holding a door or gate closed while a hazard still exists. This is particularly important where there is momentum in the machine. In other words, even when the machine is signaled to stop,parts of the machine are still moving. This could pose an injury risk if the access gate or door is not held closed. |
| Features: limit switches |
| 1) Robust zinc die cast head assembly with glass fiber reinforced plastic or zinc die cast body |
| 2) Three solenoids voltages: 24Vac/dc, 120Vac and 240Vac |
| 3) Power-to-lock or power-to-unlock types for key trap (2500N holding force) |
| 4) Flexible switching arrangement |
| 5) 24 V, 110 Vac, and 230 Vac coil voltages |
| 6) Override mechanism in cover |
| 7) Head may be rotated into 4 different positions |
| 8) Three conduit openings (knock-out style) |
| 9) Switch position provides status |
| 10) Choice of different contact blocks |
| 11) Indicators for switch and solenoid status (optional) |
| 12) Positive Opening of NC contacts |
| 13) Cable entry available: M20, and 1/2"NPT |
| 14) Approval: CE, cULus (pending) |
