Quick Details
-
Model Number:
-
SFS
-
Operating Temperature:
-
-20~110℃
-
IP level:
-
IP65
-
Product name:
-
Piston flow switch
-
Medium:
-
water, gas, oil
-
Material:
-
Stainless Steel
-
Maximum withstand voltage:
-
50bar (aluminum) 400bar (stainless steel)
-
Output Signal:
-
Reed switch, normally open
-
Keywords:
-
Water Control Flow Switch
-
Contact rating:
-
24vDC/250VAC,100mA
-
Electrical Connection:
-
PG9 Hirschmann connector, M12 connector, lead wiring 2M
-
Application:
-
Monitor Liquid Flow
-
Installation pipe diameter:
-
≤ DN25
Quick Details
-
Media Type:
-
Liquid or gas
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
SFS
-
Operating Temperature:
-
-20~110℃
-
IP level:
-
IP65
-
Product name:
-
Piston flow switch
-
Medium:
-
water, gas, oil
-
Material:
-
Stainless Steel
-
Maximum withstand voltage:
-
50bar (aluminum) 400bar (stainless steel)
-
Output Signal:
-
Reed switch, normally open
-
Keywords:
-
Water Control Flow Switch
-
Contact rating:
-
24vDC/250VAC,100mA
-
Electrical Connection:
-
PG9 Hirschmann connector, M12 connector, lead wiring 2M
-
Application:
-
Monitor Liquid Flow
-
Installation pipe diameter:
-
≤ DN25
Product Description
|
Pressure Range
|
50bar
|
|
Output Signal
|
reed switch, normally open
|
|
Case
|
stainless steel or aluminum
|
|
Piston
|
POM
|
|
IP Grade
|
IP65
|
|
Spring
|
stainless steel
|
|
Seal
|
NBR
|

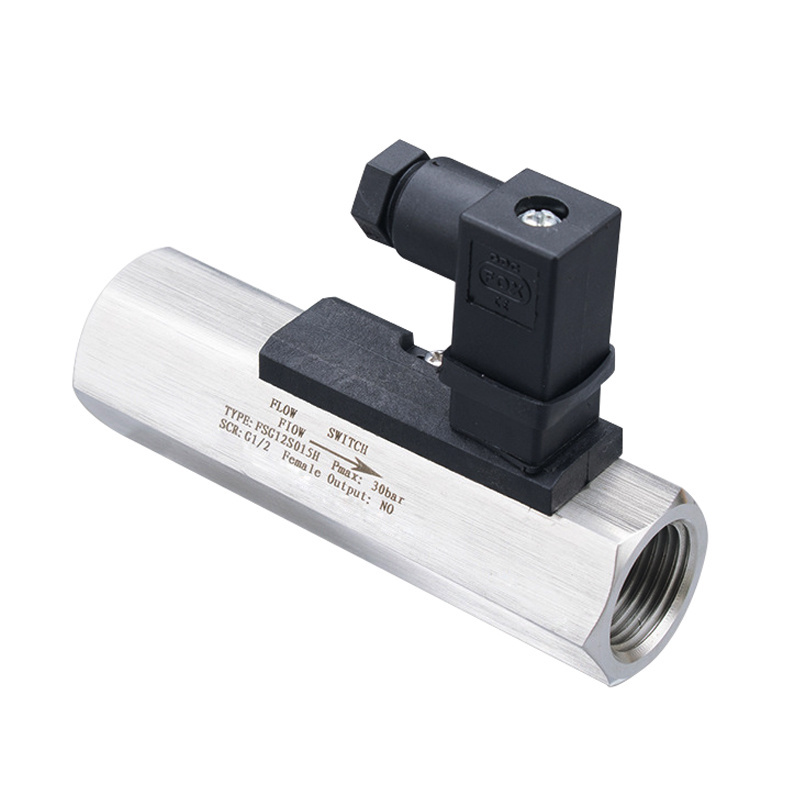

Piston type flow switch
Application areas: Environmentally friendly water treatment, cooling water circulation, oil circuit detection, welding equipment and laser systems, etc. where flow detection is required
