- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Yoke
-
Model Number:
-
LUGB
-
Product Name:
-

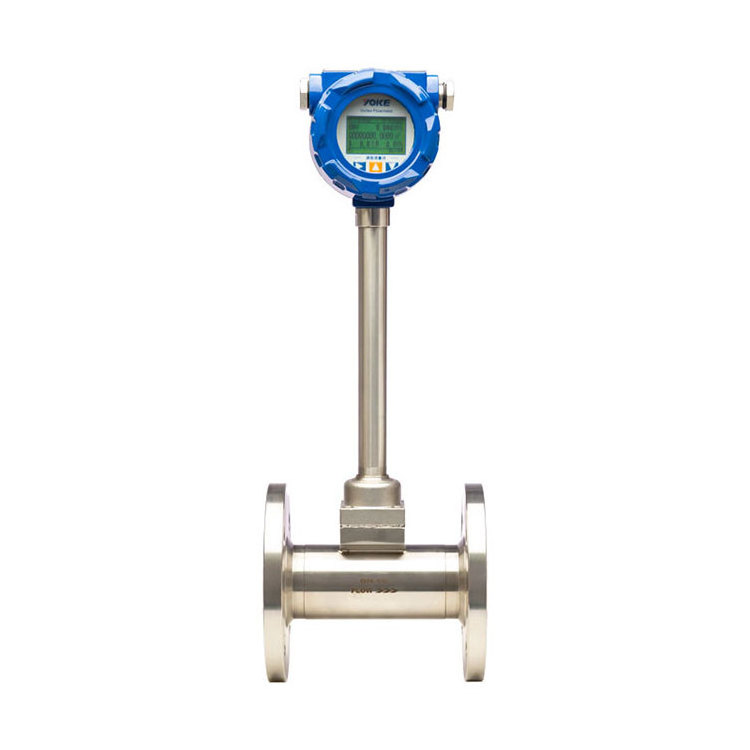

Superheated Steam Dn150 Flow Meter Vortex Flowmeter
-
Medium:
-
air
-
Span:
-
1.2-2000m^3/h(Liquid)5-11000m^3/h(Gas)
-
Accuracy:
-
1.0%(Liquid),1.5%(Gas)
-
Connection:
-
Clamp,screw,flange
-
Output:
-
Pulse,4-20mA,RS485,HART
-
Power supply:
-
24VDC,3V Battery
Quick Details
-
Type:
-
Vortex Flow Meter
-
Warranty:
-
18 months
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Yoke
-
Model Number:
-
LUGB
-
Product Name:
-
Superheated Steam Dn150 Flow Meter Vortex Flowmeter
-
Medium:
-
air
-
Span:
-
1.2-2000m^3/h(Liquid)5-11000m^3/h(Gas)
-
Accuracy:
-
1.0%(Liquid),1.5%(Gas)
-
Connection:
-
Clamp,screw,flange
-
Output:
-
Pulse,4-20mA,RS485,HART
-
Power supply:
-
24VDC,3V Battery
|
Product Name
|
Vortex flow meter
|
|
Nominal diameter
|
DN15-DN300,DN150~DN2000 can use the insertion rotating vortex flowmeter, and the big caliber is more suitable for insertion type.
|
|
Scope of application
|
Gases (air, oxygen, nitrogen, gas, natural gas, chemical gas, etc.), liquids (water, high temperature water, oil, food liquid,
chemical liquid, etc.), steam (saturated steam, superheated steam) |
|
Medium temperature
|
-40°C~250°C,-40°C~350°C,-40°C~400°C
|
|
Nominal pressure
|
≤1.6MPa ≤2.5MPa ≤4MPa Special pressure can be customized
|
|
Accuracy level
|
Liquid 0.5%
Gas, steam 1.5% insertion type 2.5% |
|
Medium velocity range
|
Liquid:0.6~6m/s,Gas:5~60m/s,steam:5~70m/s.
|
|
Output Signal
|
Voltage pulse,4-20mA Current output,HART Agreement,RS485.
|
|
Converter power supply
|
Voltage pulse output:+12VDC, 4~20mA Current output:+24VDC; Live LCD display:3.6V1 No. 1 lithium battery power supply, the service
life is more than 2 years |
|
Ambient temperature
|
Voltage pulse output:-30°C~+65°C, 4~20mA Current output:-10°C~+55°C;
Live LCD display:-25°C~+55°C |
|
Body material
|
1Cr 18Ni 9Ti (Other materials according agreement to supply)
|
