Quick Details
-
Marketing Type:
-
New Product 2023
-
Rated Power:
-
4.5KW
-
Engraving Speed:
-
15000mm/min
-
Main Axle Rotational Speed:
-
24000rpm/min
-
Feeding Height:
-
200mm
-
Milling Cutter Diameter:
-
ER20
-
Application:
-
Metal mould make
-
Dimensions:
-
1250*1550*1850
-
Weight (KG):
-
1600
-
Marking area (mm):
-
600*600mm
-
Marking Materials:
-
Metal Matrials
-
Marking Depth:
-
0.1-2mm
-
Controller:
-
PC Windows98/2000/XP
-
Voltage:
-
AC 220V
-
Marking Speed:
-
15000mm/min
-
Control system:
-
Multech
-
COLOR:
-
Grayish white
-
Electrical components:
-
France Schneider
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Machine Type:
-
cnc router
-
Marketing Type:
-
New Product 2023
-
Rated Power:
-
4.5KW
-
Engraving Speed:
-
15000mm/min
-
Main Axle Rotational Speed:
-
24000rpm/min
-
Feeding Height:
-
200mm
-
Milling Cutter Diameter:
-
ER20
-
Application:
-
Metal mould make
-
Dimensions:
-
1250*1550*1850
-
Weight (KG):
-
1600
-
Marking area (mm):
-
600*600mm
-
Marking Materials:
-
Metal Matrials
-
Marking Depth:
-
0.1-2mm
-
Controller:
-
PC Windows98/2000/XP
-
Voltage:
-
AC 220V
-
Marking Speed:
-
15000mm/min
-
Control system:
-
Multech
-
COLOR:
-
Grayish white
-
Electrical components:
-
France Schneider

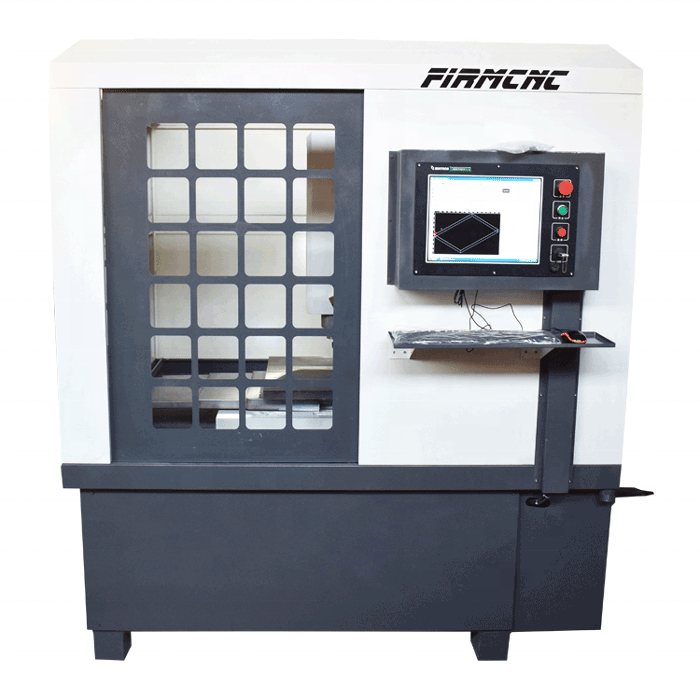

Mold Making Cnc Router Mini Cnc Milling Machine Make Metal Mould And Wood Mould
|
Cnc Milling Machine Applicable Materials |
1.6060 mould cnc router machine is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2. It can widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3. Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand, graphics and words of three-dimensional and outside surface's sleeking of large size.
|
Cnc Milling Machine Machine Characteristic |
1.High accuracy ball bearing guide screw of taiwan,minimize the slit.
2.Imported linear rail,self lubricating glide.
3.Our routers have the features of recarving after stop and the power failure may be restored.
4.Unique preservation way of the zero point.
5.Use for long time and no distortion.
6.This type is suitable for metal
|
Cnc Milling Machine Technical Data |
|
Working area |
600*600*250mm |
|
Machine Frame |
Open / Semi closed /Full closed steel structure |
|
Spindle type |
4.5kw water cooled spindle |
|
Spindle rotating speed |
0-24000rpm |
|
Transmission |
X,Y,Z axis with TBI ball screw and square guide rail |
|
Power supply |
AC220V/380V±10, 50 HZ |
|
Worktable |
Aluminum T-slot table / Cast irom table for optional |
|
Locating precision |
<0.01mm |
|
Min shaping character |
Character:2x2mm,letter:1x1mm |
|
Operating temperature |
5°C-40°C |
|
Working humidity |
30%-75%(without condensed water) |
|
Working precision |
±0.02mm |
|
Control configuration |
Multech control system / DSP / NK260 controller |
|
Data transfer interface |
PC |
|
System environment |
Windows XP/ Windows 7/Win 8/Win 10 |
|
Spindle cooling mode |
Water cooling |
|
Graphic format supported |
G code: *.u00, * mmg, * plt, *.nc |
|
Compatible software |
ArtCAM, Type3 and other CAD or CAM softwares |
|
Z tool censor |
With |
|
Packing |
Customized Plywood case |
|
Cnc Milling Machine Structure |
Machine body
The whole body is cast iron steel ,It is whole structure , The gantry is fixed on worktable,so it has the advantage of high density and strength, which will enable the machine work in lifespan and keep the parallelism between router and gantry.
Movable worktable
The machine is whole structure which is made from cast iron , So its gantry can not move like normal cnc router , It is table move mode , It can keep the working more precision ,Also It has high strength and rigid frame
X,Y,Z Transmission
X,Y Z axis of metal mould cnc router are equipped with TBI ball screw transmission to keep stable processing . Provide Positive Drive without slip, with high speed, high torque & high power.
4.5kw constant Spindle
China changsheng constant 4.5kw water-cooling spindle, Long service life, stable operation. water cooling spindle made in china can be optional.
Delta Inverter
It has adjustable V/F curve and simple vector control, 16 big microprocessor controlled PWM output, automatic torque boost& slip compensation.low noise, highly ensure the spindle working ability.
Servo motor driver
We have China Leadshine stepper driving system/ Japanese Panasonic/Yaskawa AC servo driving system for you to choose.
Control System
Multech control system, It is easy to operate
High compatibility
applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.
|
Cnc Milling Machine Models |
|
Item |
FM-4040 with full cover |
FM-6060 with full cover |
FM-4040 with half cover |
FM-6060 with half cover |
|
Cover type |
Full cover |
Full cover |
Half cover |
Half cover |
|
X,Y Travelling |
400*400mm |
600*600mm |
400*400mm |
600*600mm |
|
Z travelling |
200mm |
200mm |
200mm |
200mm |
|
Spindle power |
3.0kw |
3.0kw |
3.0kw |
3.0kw |
|
Spindle rotary speed |
24000rpm.min |
24000rpm.min |
24000rpm.min |
24000rpm.min |
|
Positioning accuracy |
±0.01mm |
±0.01mm |
±0.01mm |
±0.01mm |
|
Tool collet size |
ER20 |
ER20 |
ER20 |
ER20 |
|
Motor and driver |
Japan Yaskawa servo motor and driver |
Japan Yaskawa servo motor and driver |
Japan Yaskawa servo motor and driver |
Japan Yaskawa servo motor and driver |
|
Control system |
Multech,Ncstudio, DSP,Syntec ,etc |
Multech ,Ncstudio, DSP,Syntec ,etc |
Multech'Ncstudio, DSP,Syntec ,etc |
Multech,Ncstudio, DSP,Syntec ,etc |
|
Working speed |
30000mm/min |
30000mm/min |
30000mm/min |
30000mm/min |
|
Inverter |
Delta 3.7kw inverter |
Delta 3.7kw inverter |
Delta 3.7kw inverter |
Delta 3.7kw inverter |
|
X,Y,Z transmission |
TBI Ball scew |
TBI Ball scew |
TBI Ball scew |
TBI Ball scew |
|
Working Voltage |
220V/1phase |
220V/1phase |
220V/1phase |
220V/1phase |
1. The working size can be customized by client's work
2. The spindle power can be 3.0kw ,4.0kw, 5.5kw ,It has constant power which will not be stopped while working on hard material
3. The motor and driver can be changed into other types
| Cnc Milling Machine cooperation brand |
| Cnc Milling Machine Package Details |
|
Payment and Delivery Terms |
||||
|
Delivery time |
20 working days |
Port of loading & destination |
Qingdao port |
|
|
MOQ |
1 set |
Transportation method |
Sea transportation |
|
|
Validity Time |
30 days |
Machine warranty |
2 Years |
|
|
Payment term |
1. T/T, 30% of the total payment in advance, pay the balance after receiving delivery release. 2. Through Alibaba-AliEscrow 3. L/C 4. West Union 5. O/A, more than 5 sets one time |
|||
|
Packages |
||||
|
Firstly |
Packed the machine with plastic sheet for clearing and damp proofing |
|||
|
Secondly |
Then put the machine in the plywood case for safety. |
|||
|
Thirdly |
Transport the plywood case into the container. |
|||
