- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANBI
-
Model Number:
-
SHXJ-E1000/1200/1500
-
Voltage:
-
220V,50HZ single phase
-
Dimension(L*W*H):
-
5000*2200*1800mm
-
Weight:
-
1500 KG
-
Max Speed:
-
600pcs/min
-
Name:
-
Automatic Biodegradable Plastic Bag making Machine
-
Model:
-
SHXJ-E1000/1200/1500
-
Max bag width:
-
260MM/330MM//420mm
-
Max bag length:
-
1200mm
-
Bag thickness:
-
0.01-0.10mm
-
Speed:
-
30-130pcs/min x6 lines
-
Application:
-
T shirt bag ,shopping bag
-
PLC with touch screen:
-
Include
-
Servo motor with driver:
-
Include
-
Guarantee:
-
1 year
Quick Details
-
Machine Type:
-
hot sealing cold cutting
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANBI
-
Model Number:
-
SHXJ-E1000/1200/1500
-
Voltage:
-
220V,50HZ single phase
-
Dimension(L*W*H):
-
5000*2200*1800mm
-
Weight:
-
1500 KG
-
Max Speed:
-
600pcs/min
-
Name:
-
Automatic Biodegradable Plastic Bag making Machine
-
Model:
-
SHXJ-E1000/1200/1500
-
Max bag width:
-
260MM/330MM//420mm
-
Max bag length:
-
1200mm
-
Bag thickness:
-
0.01-0.10mm
-
Speed:
-
30-130pcs/min x6 lines
-
Application:
-
T shirt bag ,shopping bag
-
PLC with touch screen:
-
Include
-
Servo motor with driver:
-
Include
-
Guarantee:
-
1 year

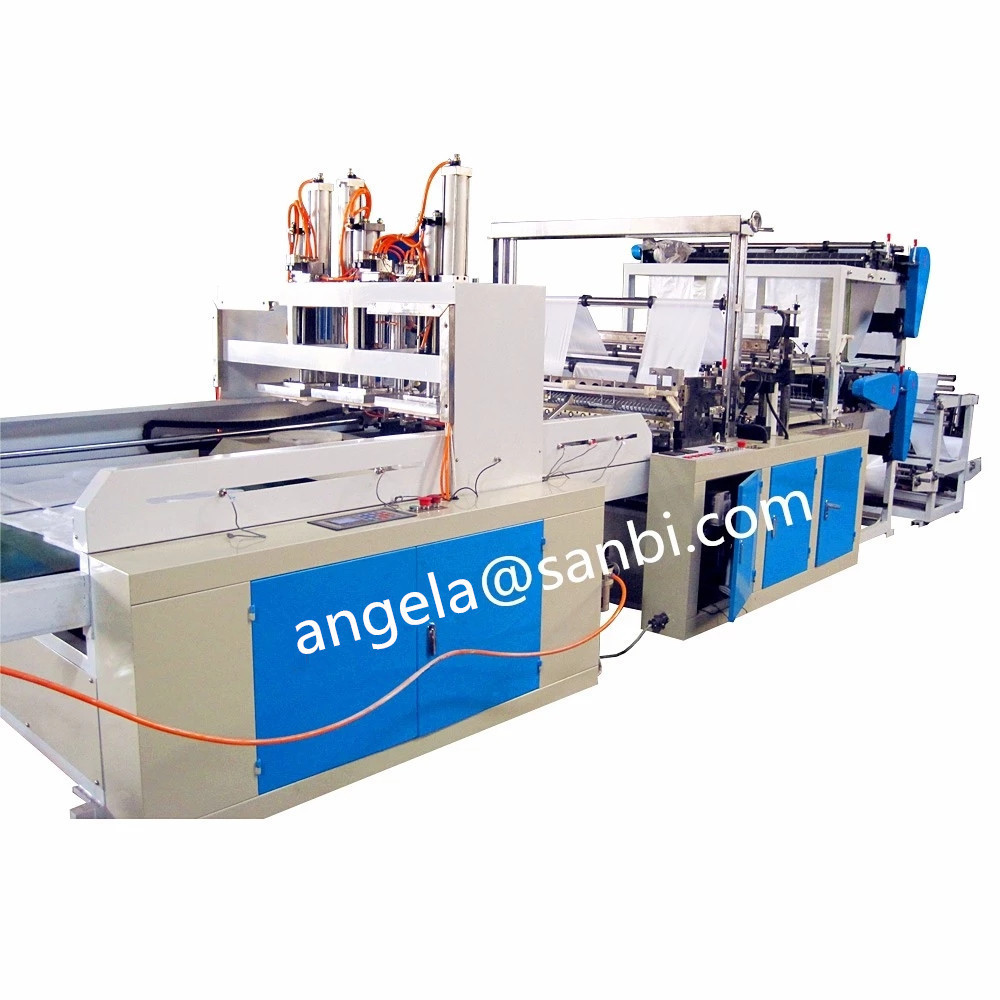

Automatic Biodegradable Plastic Bag making Machine
Features:
1.Computer control over the entire process.
2.From film roll to final bag, one process flow.
3.Servo motor, makes it easy to adjust the bag length and the production speed.
4.Automatic film feeding, coordination free from tension adjustment.
5.Automatically stop when film feeding blocks or bags jam.
6.High production efficiency to save manpower and time.
7.Equipment with heat sealing and cold cutting device.
Model
|
SHXJ-E1000
|
SHXJ-E1200
|
SHXJ-E1500
|
Width of Sealing & Cutting (mm)
|
120-230mm
|
120-300mm
|
50-400mm
|
Max Length of Sealing & Cutting(mm)
|
800
|
800
|
800
|
Speed of Bag-making (pc/min)
|
30-130*6
|
30-130*6
|
30-130*6
|
Number of Strip (pc)
|
6
|
6
|
6
|
Power of Motor (kw)
|
2.2
|
3
|
4
|
Weight (Ton)
|
1.3
|
1.5
|
1.8
|
Outline Dimension (L*W*H)mm
|
4800*2200*1800
|
5000*2200*2000
|
5500*2200*2600
|
