Quick Details
-
working pressure:
-
16-31.5mpa
-
positioning returning way:
-
spring return, ball locking/detent, floating spool
-
Spools range:
-
1-7spools
-
Material:
-
casting iron
-
Normal flow rate:
-
40lpm, 50lpm, 63lpm, 80lpm, 100lpm, 160lpm and so on
-
Usage:
-
agricultural machine, dump truck, construction vehicle,
-
Other usage:
-
special purpose vehicle, drilling machine
-
Catalouge:
-
manual, electric control, Pneumatic
-
port:
-
1/2", 3/4", 3/8" and so on
-
Other products:
-
gear pump, hydraulic motor, cyliner, power unit
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
BDL40-014
-
Brand Name:
-
JUNBAO
-
working pressure:
-
16-31.5mpa
-
positioning returning way:
-
spring return, ball locking/detent, floating spool
-
Spools range:
-
1-7spools
-
Material:
-
casting iron
-
Normal flow rate:
-
40lpm, 50lpm, 63lpm, 80lpm, 100lpm, 160lpm and so on
-
Usage:
-
agricultural machine, dump truck, construction vehicle,
-
Other usage:
-
special purpose vehicle, drilling machine
-
Catalouge:
-
manual, electric control, Pneumatic
-
port:
-
1/2", 3/4", 3/8" and so on
-
Other products:
-
gear pump, hydraulic motor, cyliner, power unit
High Efficiency Hydraulic Diverter Valve Mini Excavator Control Valve
| Model NO. | BDL40 | OEM | Avaliabe |
| Rated Flow | 40lpm | Name | 40lpm Hydraulic Directional Control Valve |
| Pressure | 160-315bar | Transport Package | Carton Box |
| Material | Casting Iron | Specification | 30*20*15cm |
| Port Size | G3/8 | HS Code | 8481201000 |

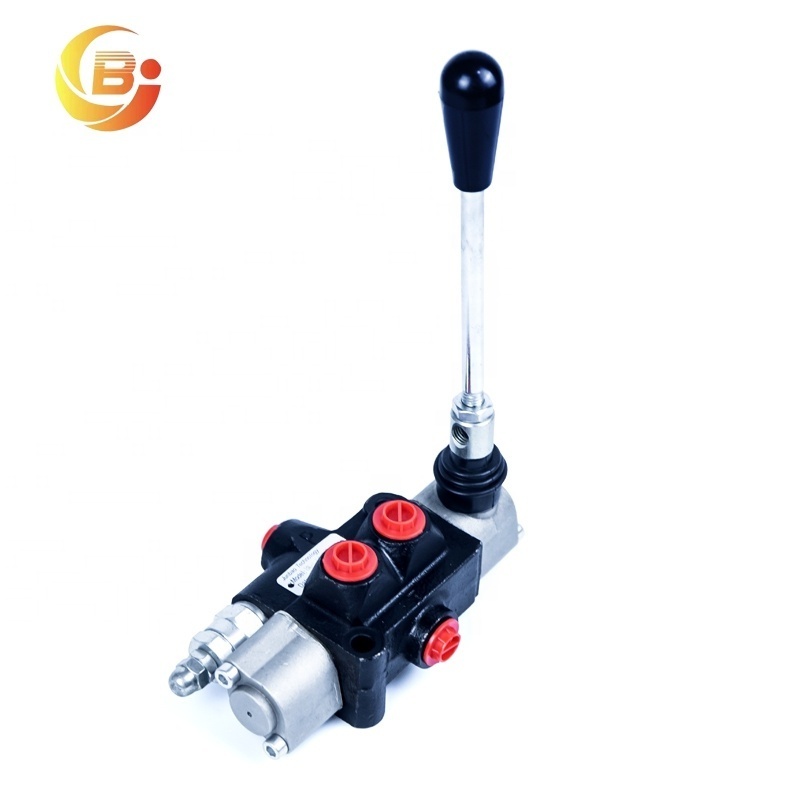

40lpm Single spool hydraulic hand valve, monoblock control valve BDL40
Product Introduction--------
Reliable hydraulic monoblock directional control valve single spool control valve
Popular reliable hydraulic directional control valve with flow 40LPM
1. Nominal Flow:40L/min, Working Pressure 160-315Bar (16Mpa-31.5Mpa)
2. Control way: Manual control
3. Positioning Returning Modes:W( Ball locking); T(Spring Return)
4. Spool Functions: O W A etc
5. Thread: G1/2; G3/8;SAE6;SAE8
6. Oil Way: Parallel Circuit
7. Material: Casting iron
8. Application: Sanitation Machines, Mining Machines, etc
|
|
| Model | Max Flow | Switch | Package Size | Weight |
| P40-1 | 40L/min | 1 | 22*12.5*10 cm | 3 kg |
| P40-2 | 40L/min | 2 | 23.5*18.5*10.5 cm | 4.8 kg |
| P40-3 | 40L/min | 3 | 23.5*18.5*10.5 cm | 6.45 kg |
| P40-4 | 40L/min | 4 | 26*23*12 cm | 8.1 kg |
| P40-5 | 40L/min | 5 | 28*25*12 cm | 9.8 kg |
| P40-6 | 40L/min | 6 | 32*25*12 cm | 11.3 kg |
| P80-1 | 80L/min | 1 | 27.5*15.5*13 cm | 5.2 kg |
| P80-2 | 80L/min | 2 | 27.5*20.5*13 cm | 8.1 kg |
| P80-3 | 80L/min | 3 | 26*23*12 cm | 10.7 kg |
| P80-4 | 80L/min | 4 | 28*24.5*11.5 cm | 13.5 kg |
| P80-5 | 80L/min | 5 | 33*25*11.5 cm | 15.5 kg |
| P80-6 | 80L/min | 6 | 37*24*11 cm | 18.2 kg |
