Quick Details
-
Brick size:
-
400*100*200 mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QGM
-
Voltage:
-
380
-
Dimension(L*W*H):
-
5210*3530*2780mm
-
Pallet Size:
-
850x680mm
-
Processing::
-
Brick Production Line
-
Cycle Time:
-
15-20 seconds
-
Certification:
-
CE
Quick Details
-
Type:
-
Hollow&Paver Brick
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
8640-11000pcs per shift for 400*200*200
-
Brick size:
-
400*100*200 mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QGM
-
Voltage:
-
380
-
Dimension(L*W*H):
-
5210*3530*2780mm
-
Pallet Size:
-
850x680mm
-
Processing::
-
Brick Production Line
-
Cycle Time:
-
15-20 seconds
-
Certification:
-
CE

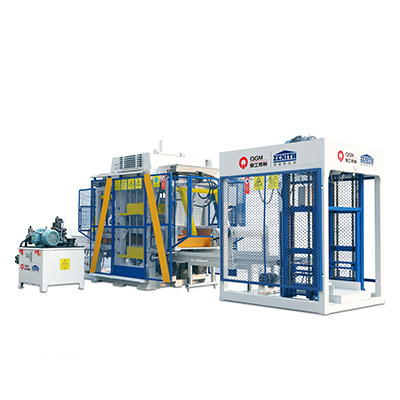

High quality Cement Brick Making Machine qt6 automatic concrete brick making machine supplier best price in Philippines
|
Main Technical Specifications |
|
|
Production per Mould: |
6 pcs/mould (Standard Block: 400x200x200mm) |
|
30 pcs/mould (Solid Block: 240x115x53mm) |
|
|
15 pcs/mould (Interlock Paver: 225x112.5x60mm) |
|
|
21 pcs/mould (Holland Brick: 200x100x60-80mm) |
|
|
Cycle Time: |
15-20 seconds |
|
Production per Day (8 Working Hours): |
Hollow Block (400x200x200mm): 8640-11520 pcs |
|
Solid Block (240x115x53mm): 43200-57600 pcs |
|
|
Interlock Paver (225x112.5x60mm): 17280-21600 pcs |
|
|
Holland Brick (200x100x60-80mm): 2419230240 pcs |
|
|
Vibrating Frequency: |
3300 rolls/minute |
|
Vibrating Force: |
60 KN |
|
Motors Power: |
33 KW |
|
Machine Dimensions: |
9680x2800x2800mm |
|
Pallet Size: |
850x680mm |
|
Gross Weight: |
about 7.5T |
|
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
|
Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
|
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc |
Big Five Advantages Of QGM Automatic Block Making Machines:
Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products
1. Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:
A. Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.
B. Visualization touch screen, with easy operation;
C. High-quality electrical components from Schneider and Omron;
2. Use Frequency Conversional Control Technology, which controls the block making:
A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;
B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;
C. Power saving: 30%;
3. Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure
A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
B. Guarantee production stability;
4. 360 ° Multi-Shaft Rotating and Compulsory Feeding:
A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed
B. This uniform feeding is applicable for different kinds of raw materials and moulds;
5. Use heat treatment on moulds and main parts of the machines:
A. Heavy duty machine structure and wear resistant moulds;
B. The hardness reaches up to HRC 52-58;
C. Greatly improves the using lifetime of the machine by 50%.
